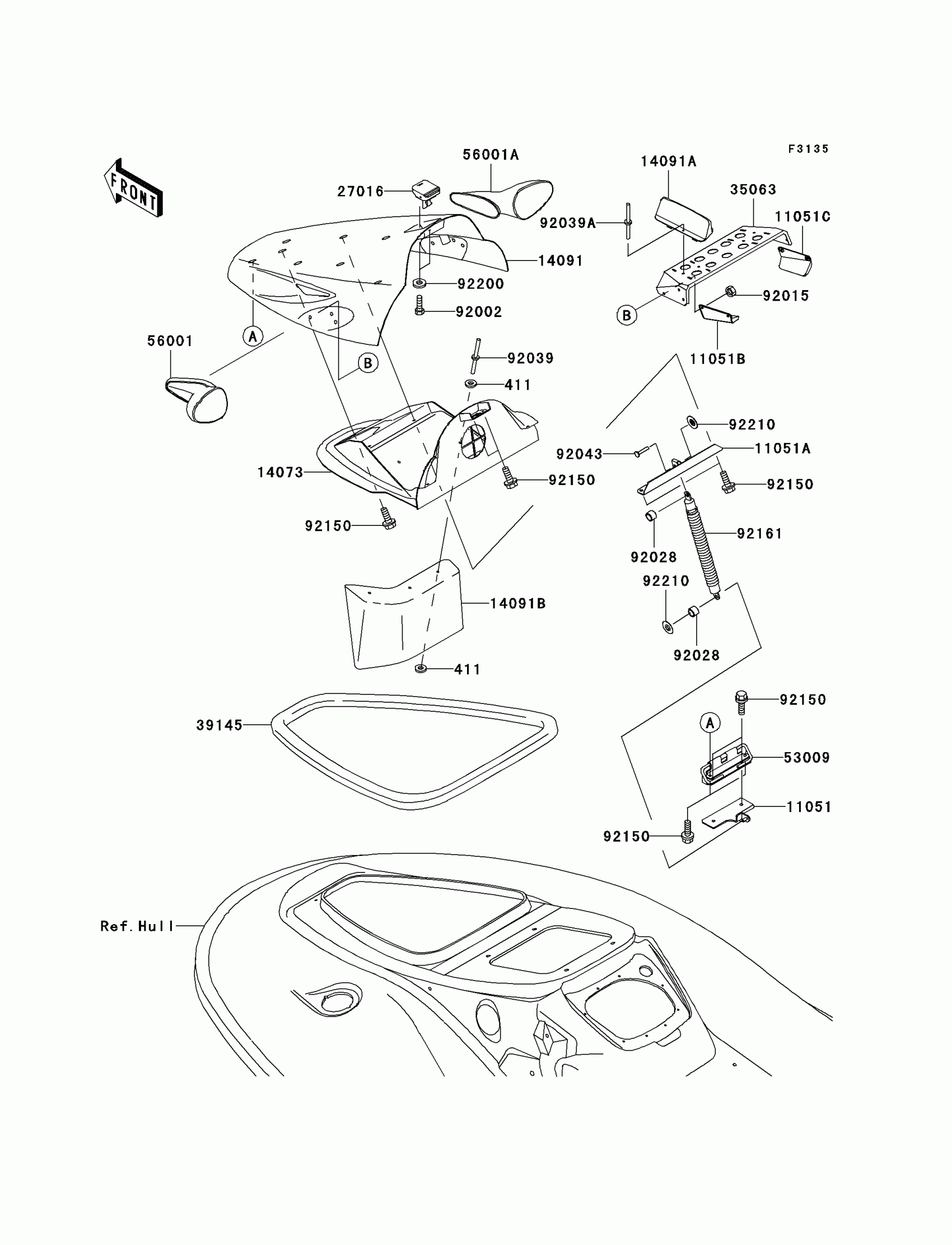

Kawasaki 1100 STX D.I. Hull Front Fittings Diagram

Description

Price

411

WASHER-PLAIN,5MM

411S0500

$0.78

11051

BRACKET

11051-3741

Unavailable

11051A

BRACKET

11051-3766

$31.14

11051B

BRACKET,HATCH,LH

11051-3798

$65.69

11051C

BRACKET,HATCH,RH

11051-3799

$52.86

14073

DUCT,FR

14073-3777

$147.47

14091

COVER,HATCH,M.R.RED

14091-3704-369

Unavailable

14091A

COVER

14091-3707

$18.14

14091B

COVER,FRONT DUCT

14091-3722

Unavailable

27016

LOCK-ASSY,HATCH COVER

27016-3756

$127.89

35063

STAY,MIRROR

35063-3703

Unavailable

39145

TRIM-SEAL,L=1380

39145-3776

$141.21

53009

HINGE,HATCH COVER

53009-3725

$120.15

56001

MIRROR-ASSY,LH,M.R.RED

56001-3719-468

Unavailable

56001A

MIRROR-ASSY,RH,M.R.RED

56001-3720-468

$229.38

92002

BOLT,5X16

92002-3747

$3.97

92015

NUT,LOCK,6MM

92015-3766

$4.46

92028

BUSHING

92028-3765

$2.28

92039

RIVET

92039-3714

$0.79

92039A

RIVET,4.8MM

92039-3719

$5.42

92043

PIN,6X33

92043-3748

$10.76

92150

BOLT,6X18

92150-3729

$3.57

92161

DAMPER

92161-3705

Unavailable

92200

WASHER,5.9X16X1.5

92200-3714

$1.55

92210

NUT,SPEED,6MM

92210-3739

$1.59
