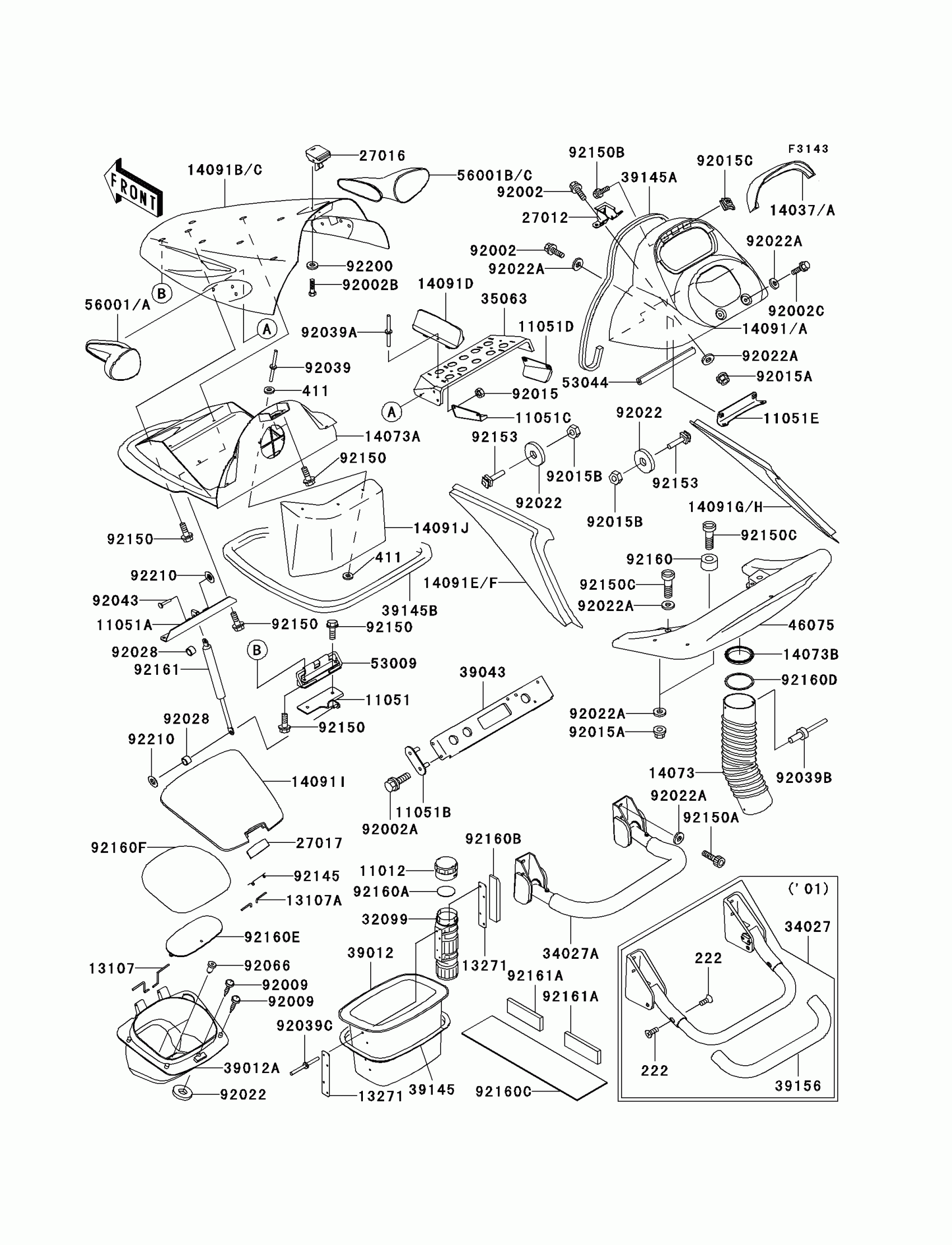

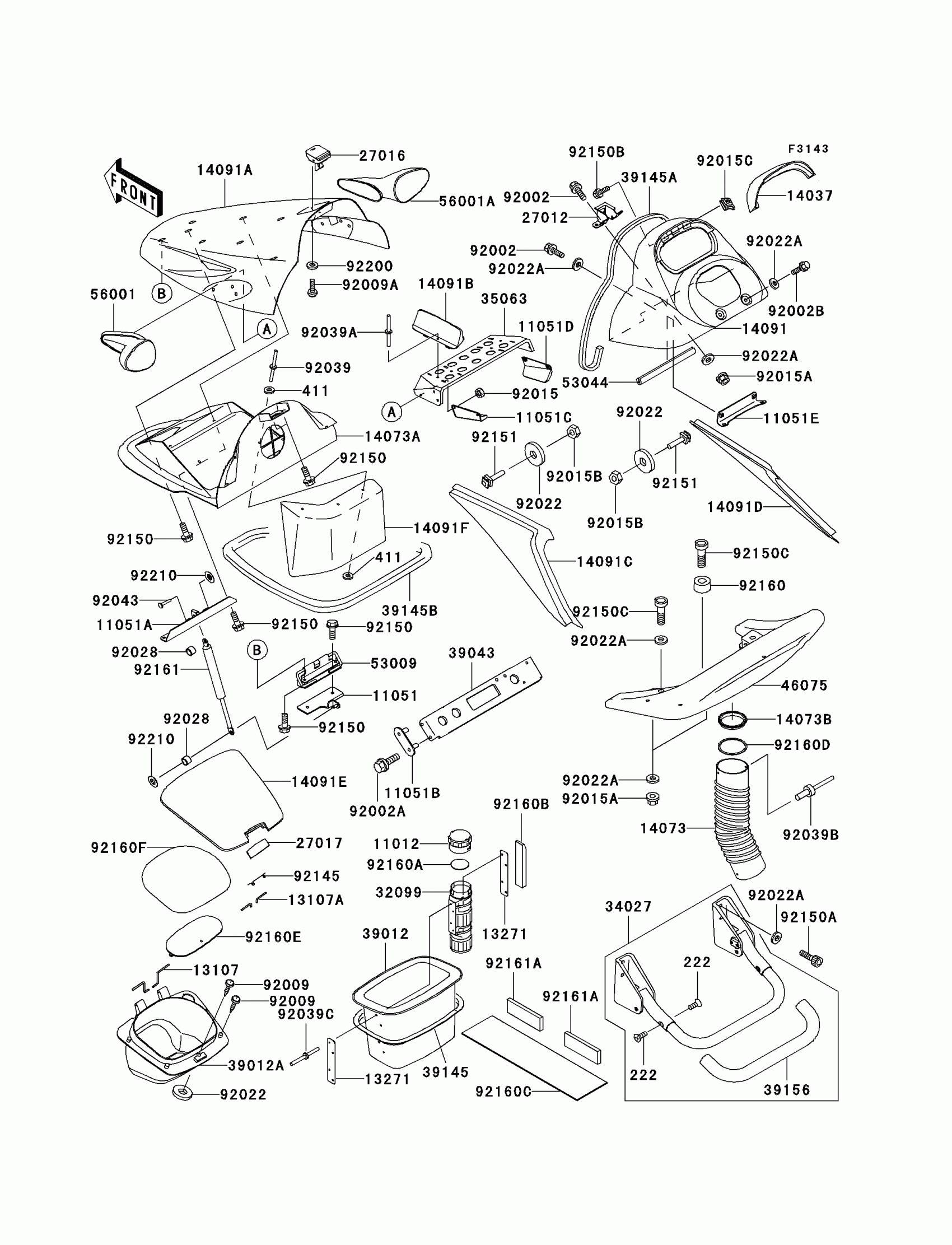

Kawasaki 1100 STX D.I. Hull Fittings Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$7.83

11051

BRACKET

11051-3741

Unavailable

11051A

BRACKET

11051-3766

$31.14

11051B

BRACKET,CROSSMEMBER

11051-3782

$16.61

11051C

BRACKET,HATCH,LH

11051-3798

$65.69

11051D

BRACKET,HATCH,RH

11051-3799

$52.86

11051E

BRACKET

11051-3811

Unavailable

13107

SHAFT

13107-3761

$3.40

13107A

SHAFT

13107-3769

$3.66

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.07

14037

SCREEN,METER,G.SILVER

14037-3709-F2

Unavailable

14073

DUCT,FR

14073-3764

$14.32

14073A

DUCT,FR

14073-3777

$147.47

14073B

DUCT

14073-3780

Unavailable

14091

COVER,HANDLE,G.SILVER

14091-3703-F2

$154.39

14091A

COVER,HATCH,G.SILVER

14091-3704-F2

$151.81

14091B

COVER

14091-3707

$18.14

14091C

COVER,SIDE,LH,G.SILVER

14091-3708-F2

$125.96

14091D

COVER,SIDE,RH,G.SILVER

14091-3709-F2

$125.96

14091E

COVER,CENTER STORAGE,D.R.RED

14091-3710-EQ

Unavailable

14091F

COVER,FRONT DUCT

14091-3722

Unavailable

27012

HOOK

27012-3830

$24.17

27016

LOCK-ASSY,HATCH COVER

27016-3751

$127.89

27017

LOCK,CENTER STORAGE

27017-3723

$9.34

32099

CASE,FIRE EXTINGUISHER

32099-3769

$14.60

34027

STEP-ASSY

34027-3704

Unavailable

35063

STAY,MIRROR

35063-3703

Unavailable

39012

CASE-STORAGE,RR

39012-3727

Unavailable

39012A

CASE-STORAGE

39012-3728

$12.33

39043

CROSSMEMBER-COMP

39043-3703

$104.42

39145

TRIM-SEAL,REAR STORAGE

39145-3767

$37.96

39145A

TRIM-SEAL,L=900

39145-3772

$32.34

39145B

TRIM-SEAL,L=1380

39145-3776

$141.21

39156

PAD,STEP

39156-3822

$9.29

46075

GRIP,RR,D.R.RED

46075-3755-AB

Unavailable

53009

HINGE,HATCH COVER

53009-3725

$120.15

53044

TRIM,L=180

53044-3755

$9.24

56001

MIRROR-ASSY,LH,G.SILVER

56001-3719-F2

$212.75

56001A

MIRROR-ASSY,RH,G.SILVER

56001-3720-F2

$212.75

92002

BOLT,6X25

92002-3714

$3.81

222

SCREW-CSK-RD-CROS

222R0612

$0.86

411

WASHER-PLAIN,5MM

411S0500

$0.78

92002A

BOLT,6X30

92002-3726

$3.57

92002B

BOLT,6X12

92002-3763

$3.57

92009

SCREW,TAPPING,5X20

92009-3716

$2.76

92009A

SCREW,5X16

92009-3789

$2.42

92015

NUT,LOCK,6MM

92015-3766

$4.46

92015A

NUT,6MM

92015-3767

$3.57

92015B

NUT,LOCK,5MM

92015-3798

$7.83

92015C

NUT,CLIP,5MM

92015-3830

$6.04

92022

WASHER,5X16X1.5

92022-3041

$3.19

92022A

WASHER,6.5X20X1.5

92022-3710

$2.76

92028

BUSHING

92028-3765

$2.28

92039

RIVET

92039-3714

$0.79

92039A

RIVET,4.8MM

92039-3719

$5.42

92039B

RIVET

92039-3747

$1.11

92039C

RIVET

92039-3755

$5.71

92043

PIN,6X33

92043-3748

$10.76

92145

SPRING

92145-3711

$4.39

92150

BOLT,6X18

92150-3729

$3.57

92150A

BOLT,SOCKET,6X18

92150-3775

$3.57

92150B

BOLT,5X16

92150-3778

$3.54

92150C

BOLT,SOCKET,6X30

92150-3822

$3.29

92151

BOLT,5MM

92151-3753

$5.73

92160

DAMPER

92160-3738

$13.64

92160A

DAMPER

92160-3814

$7.76

92160B

DAMPER

92160-3821

$8.63

92160C

DAMPER

92160-3839

$20.73

92160D

DAMPER

92160-3910

$4.29

92160E

DAMPER

92160-3926

$10.76

92160F

DAMPER

92160-3933

$12.27

92161

DAMPER

92161-3705

Unavailable

92161A

DAMPER

92161-3719

$13.02

92200

WASHER,5.9X16X1.5

92200-3714

$1.55

92210

NUT,SPEED,6MM

92210-3739

$1.59
