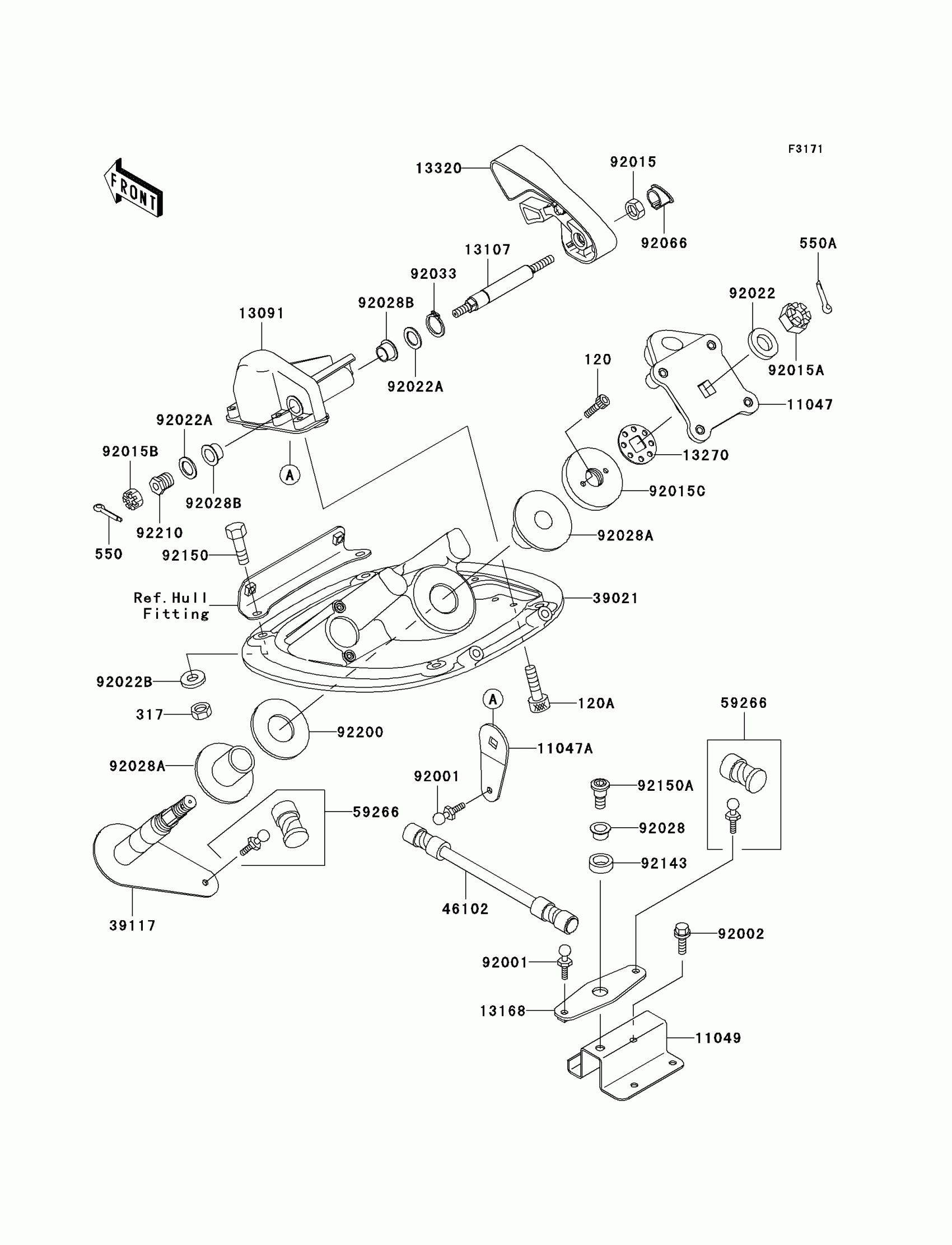

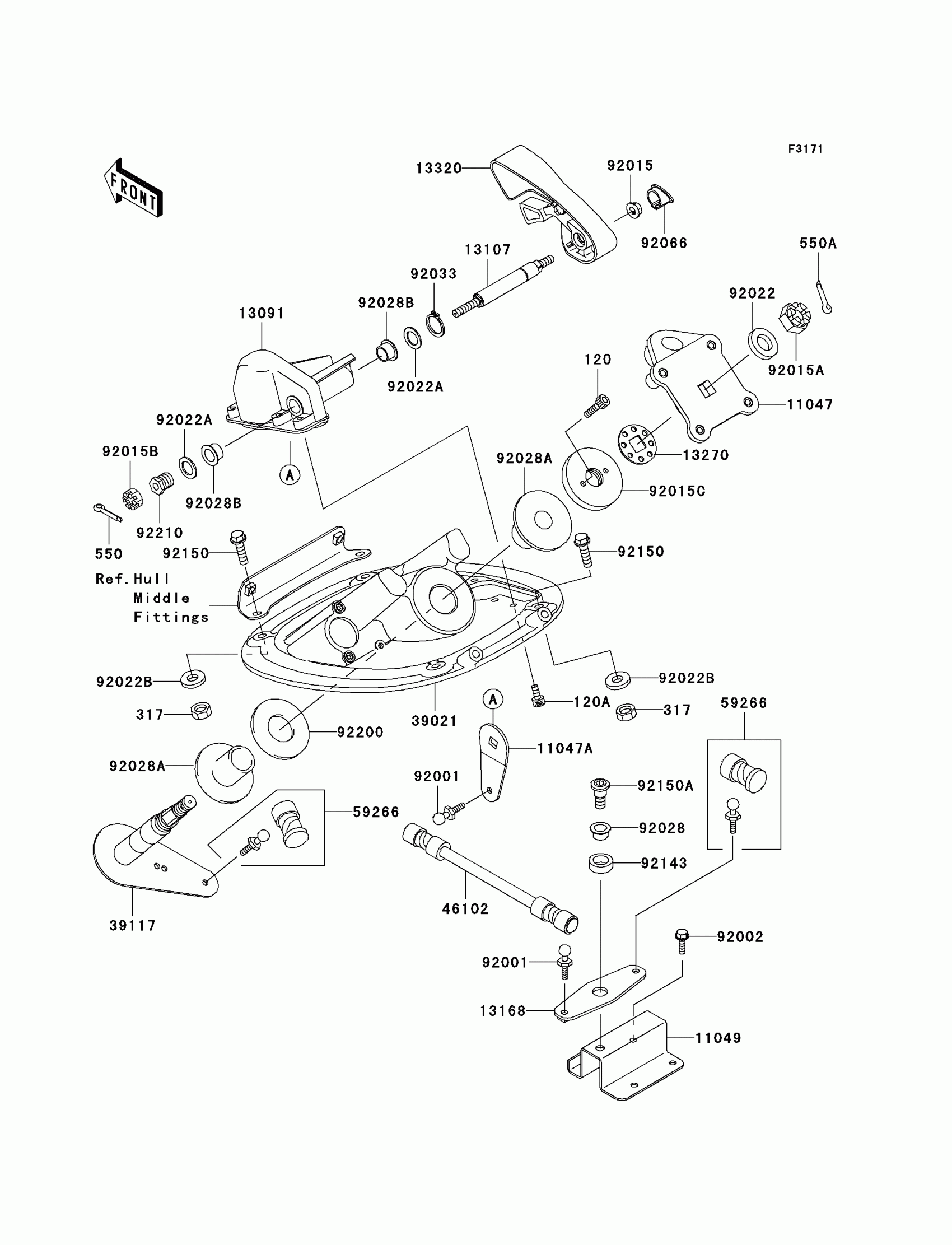

Kawasaki 1100 STX D.I. Handle Pole Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120R0510

$3.01

120A

BOLT-SOCKET,6X16

120S0616

Unavailable

317

NUT

317R0800

$1.42

550

PIN-COTTER

550S2020

$2.25

550A

PIN-COTTER,3X35

550S3035

$4.02

11047

BRACKET,HANDLE HOLDER

11047-3759

$110.16

11047A

BRACKET,STEERING LEVER

11047-3790

$29.19

11049

BRACKET,REVERSE

11049-3762

$41.49

13091

HOLDER

13091-3809

$77.21

13107

SHAFT

13107-3751

$76.42

13168

LEVER,REVERSE

13168-3739

$19.31

13270

PLATE,STEERING NUT

13270-3808

$7.58

13320

LEVER-ASSY,REVERSE

13320-3716

$231.05

39021

BRACKET-HANDLE POLE

39021-3706

$274.40

39117

SHAFT-STRG

39117-3710

$310.38

46102

ROD

46102-3723

$135.57

59266

JOINT-BALL

59266-3707

$59.33

92001

BOLT,BALL,6MM

92001-3703

Unavailable

92002

BOLT,6X20

92002-3755

$3.57

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92015A

NUT,CASTLE,14MM

92015-3805

$36.18

92015B

NUT,CASTLE,8MM

92015-3813

$5.76

92015C

NUT,STEERING,20MM

92015-3854

Unavailable

92022

WASHER,15X34X2.0

92022-3738

$4.93

92022A

WASHER,15.5X24X1.5

92022-3739

$2.19

92022B

WASHER,8.4X23X2.5

92022-3744

$3.19

92028

BUSHING

92028-3740

$6.21

92028A

BUSHING,STEERING

92028-3748

$24.03

92028B

BUSHING

92028-3755

$3.53

92033

RING-SNAP,15MM

92033-3710

$3.54

92066

PLUG,REVERSE LEVER

92066-3761

$17.12

92143

COLLAR,16X24X8

92143-3768

$7.15

92150

BOLT,FLANGED,8X30

92150-3803

$5.61

92150A

BOLT

92150-3827

Unavailable

92200

WASHER,32.5X70X2

92200-3718

$15.76

92210

NUT,8MM

92210-3703

$9.29
