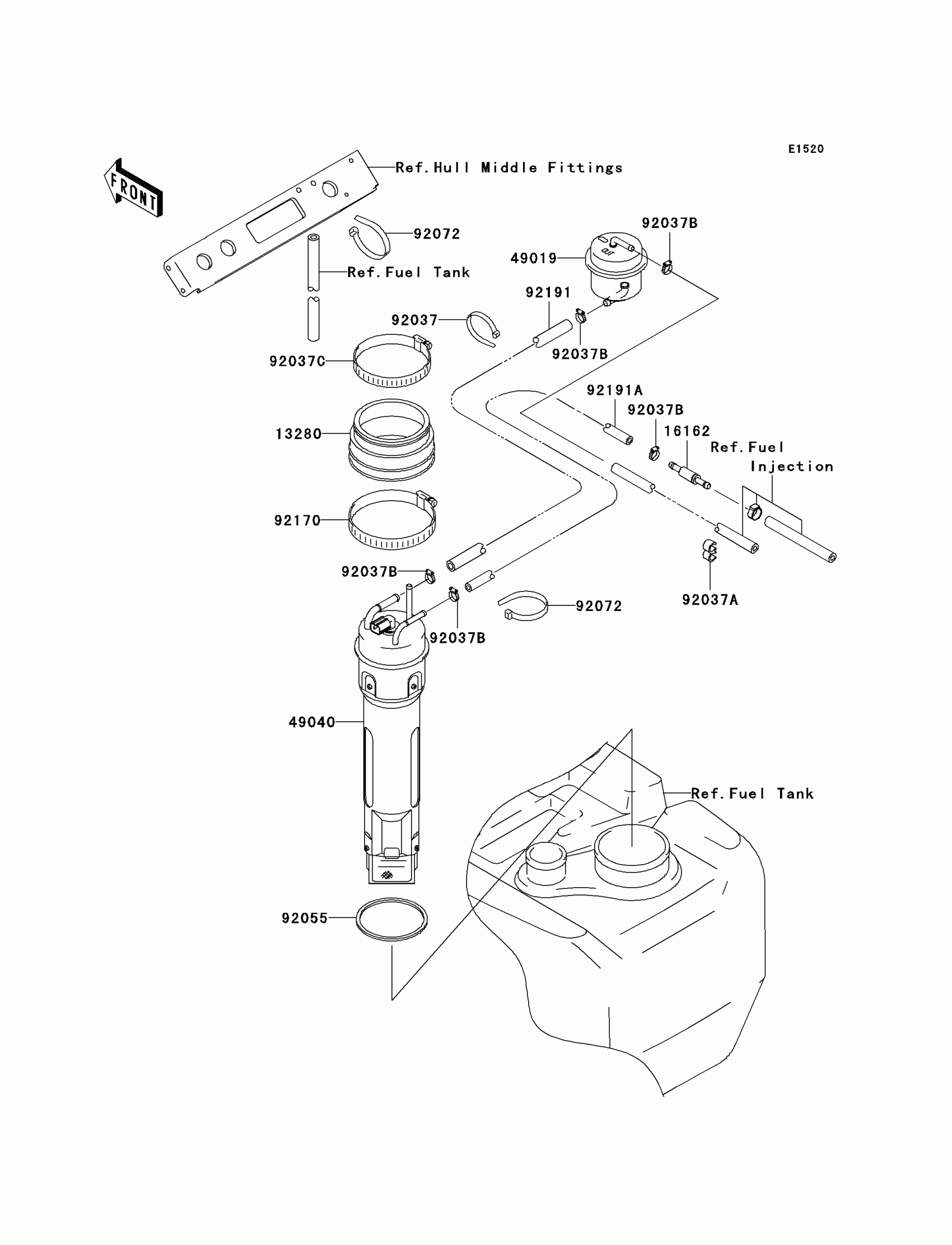

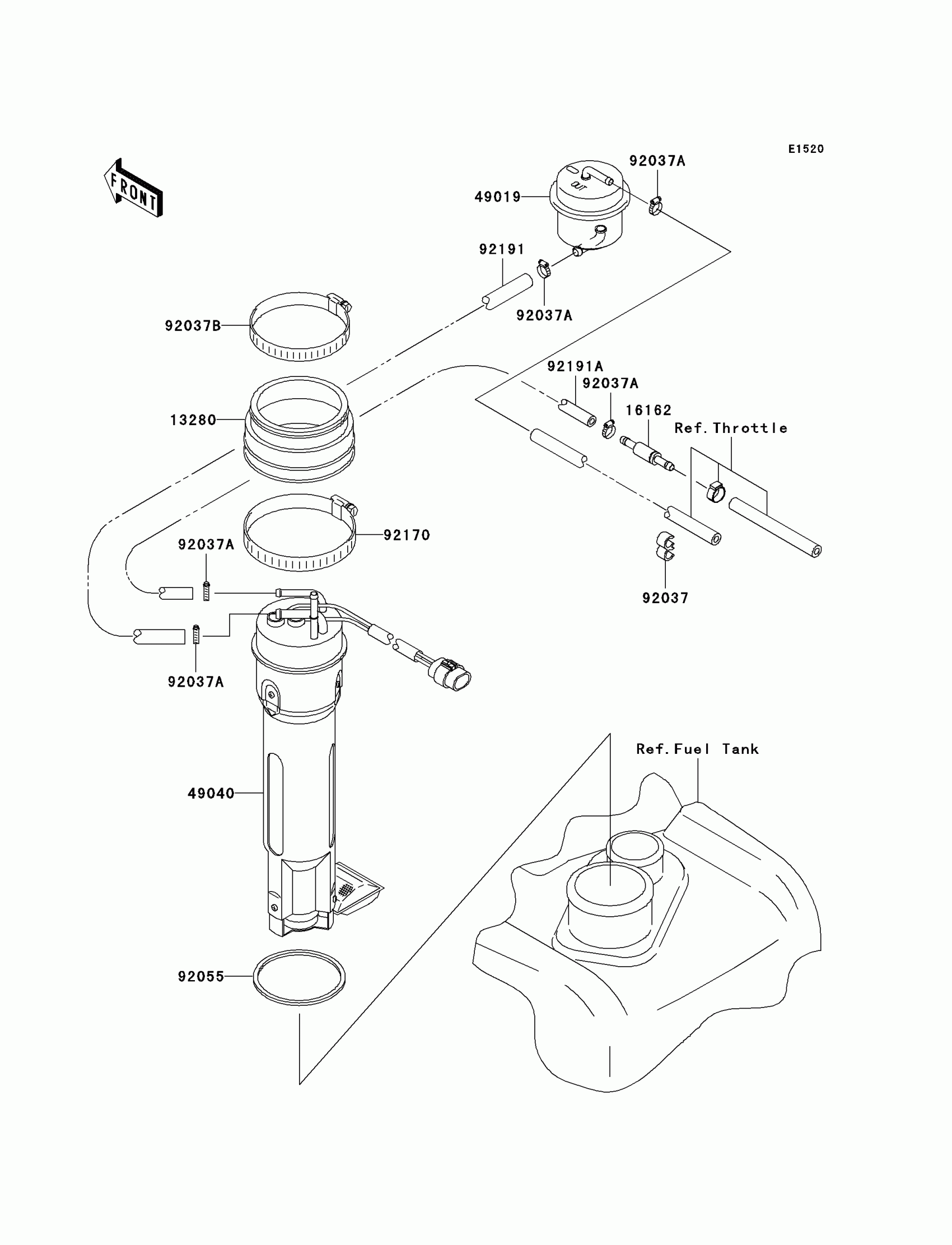

Kawasaki 1100 STX D.I. Fuel Pump Diagram

Description

Price

13280

HOLDER

13280-3735

Unavailable

16162

REGULATOR-FUEL

16162-3701

$49.23

49019

FILTER-FUEL

49019-3716

$63.95

49040

PUMP-FUEL

49040-3713

$901.76

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,HOSE

92037-1603

$5.00

92037B

CLAMP

92037-3726

$3.98

92037C

CLAMP

92037-541

$10.24

92055

RING-O,FUEL PUMP

92055-3756

$7.83

92072

BAND,L=201

92072-3778

$1.84

92170

CLAMP

92170-3760

$11.56

92191

TUBE,7.5X13.5X460

92191-3869

$50.25

92191A

TUBE,5.8X10.8X410,RETURN

92191-3872

$19.84
