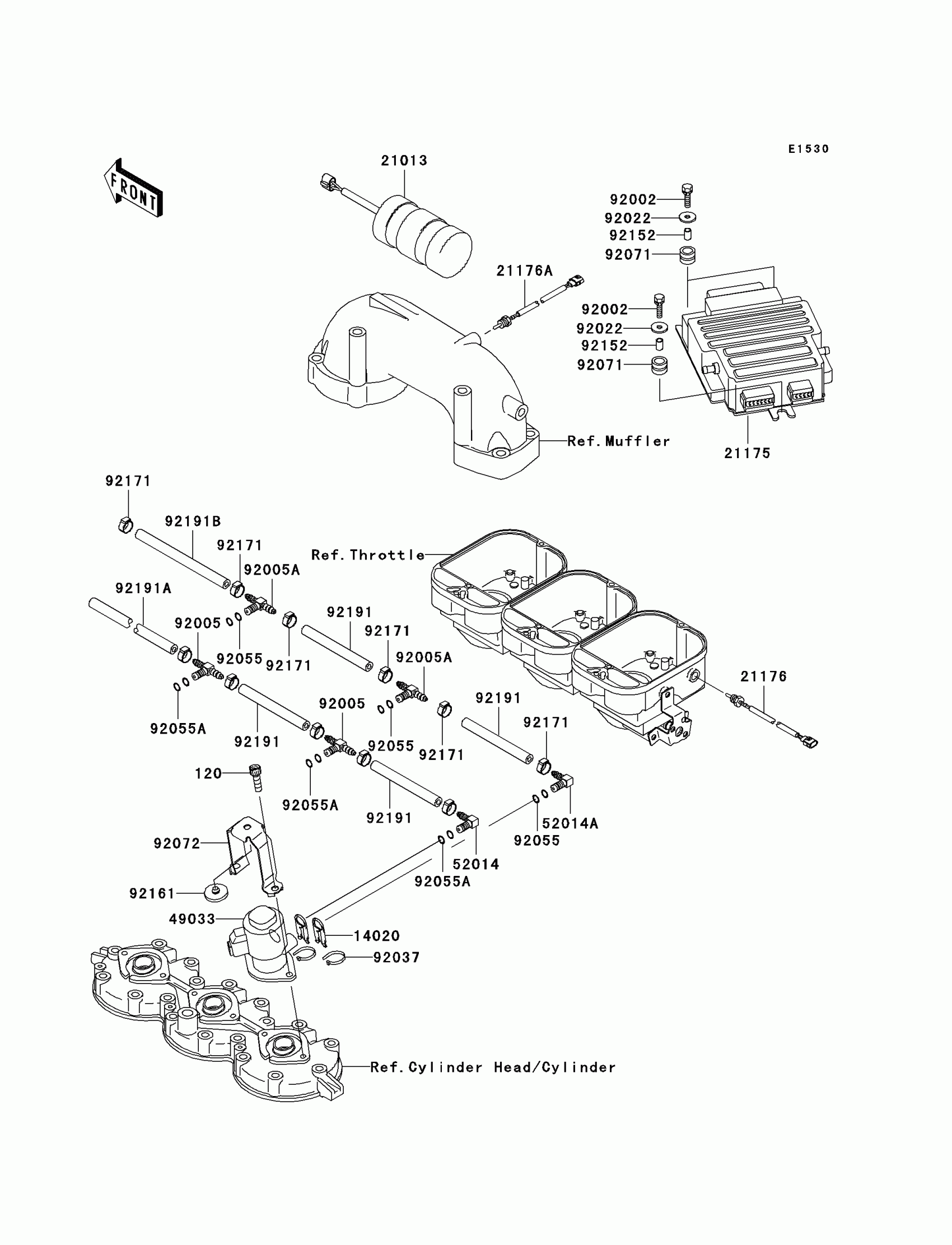

Kawasaki 1100 STX D.I. Fuel Injection Diagram

Description

Price

120

BOLT-SOCKET

120Z0820

$4.88

14020

RETAINER

14020-3705

$5.96

21013

CONDENSER

21013-3701

$217.86

21175

CONTROL UNIT-ELECTRONIC

21175-3718

Unavailable

21176

SENSOR

21176-3756

$146.78

21176A

SENSOR

21176-3757

$146.78

49033

NOZZLE-INJECTION

49033-3704

$895.86

52014

ELBOW,INLET

52014-3715

Unavailable

52014A

ELBOW,OUTLET

52014-3716

$13.41

92002

BOLT,6X25

92002-3775

$5.86

92005

FITTING,INLET

92005-3733

$9.74

92005A

FITTING,OUTLET

92005-3734

Unavailable

92022

WASHER,6.2X20X2

92022-3714

$4.18

92037

CLAMP

92037-1173

$3.49

92055

RING-O,OUTLET

92055-3758

$3.92

92055A

RING-O,INLET

92055-3759

$3.18

92071

GROMMET

92071-3834

$10.62

92072

BAND,INJECTION

92072-3854

$11.67

92152

COLLAR,6.2X8X12

92152-3716

$5.64

92161

DAMPER

92161-3718

$7.86

92171

CLAMP

92171-3706

$5.64

92191

TUBE,6X12X110

92191-3870

$20.82

92191A

TUBE,6X12X235

92191-3894

$23.38

92191B

TUBE,6X12X180

92191-3921

$34.32
