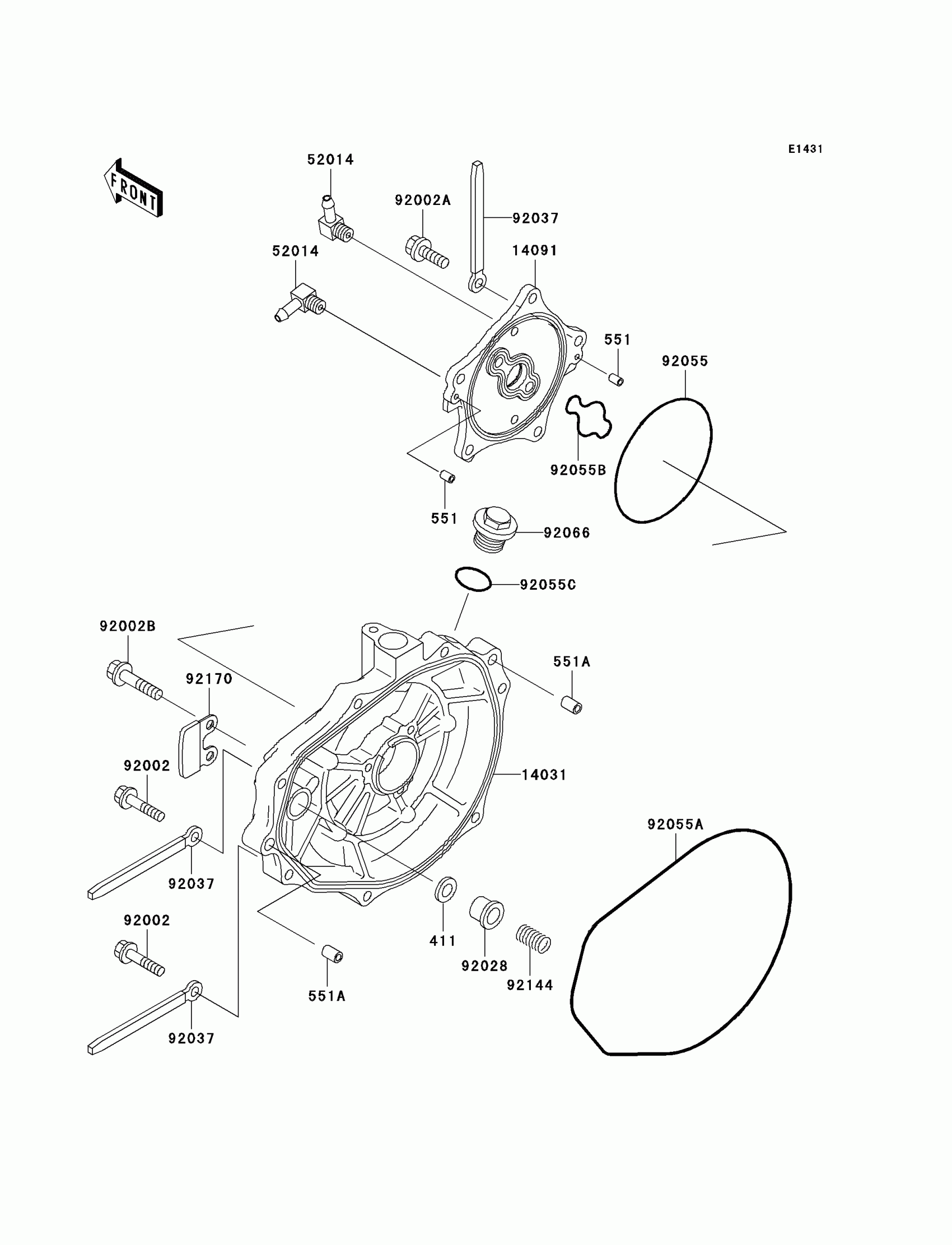

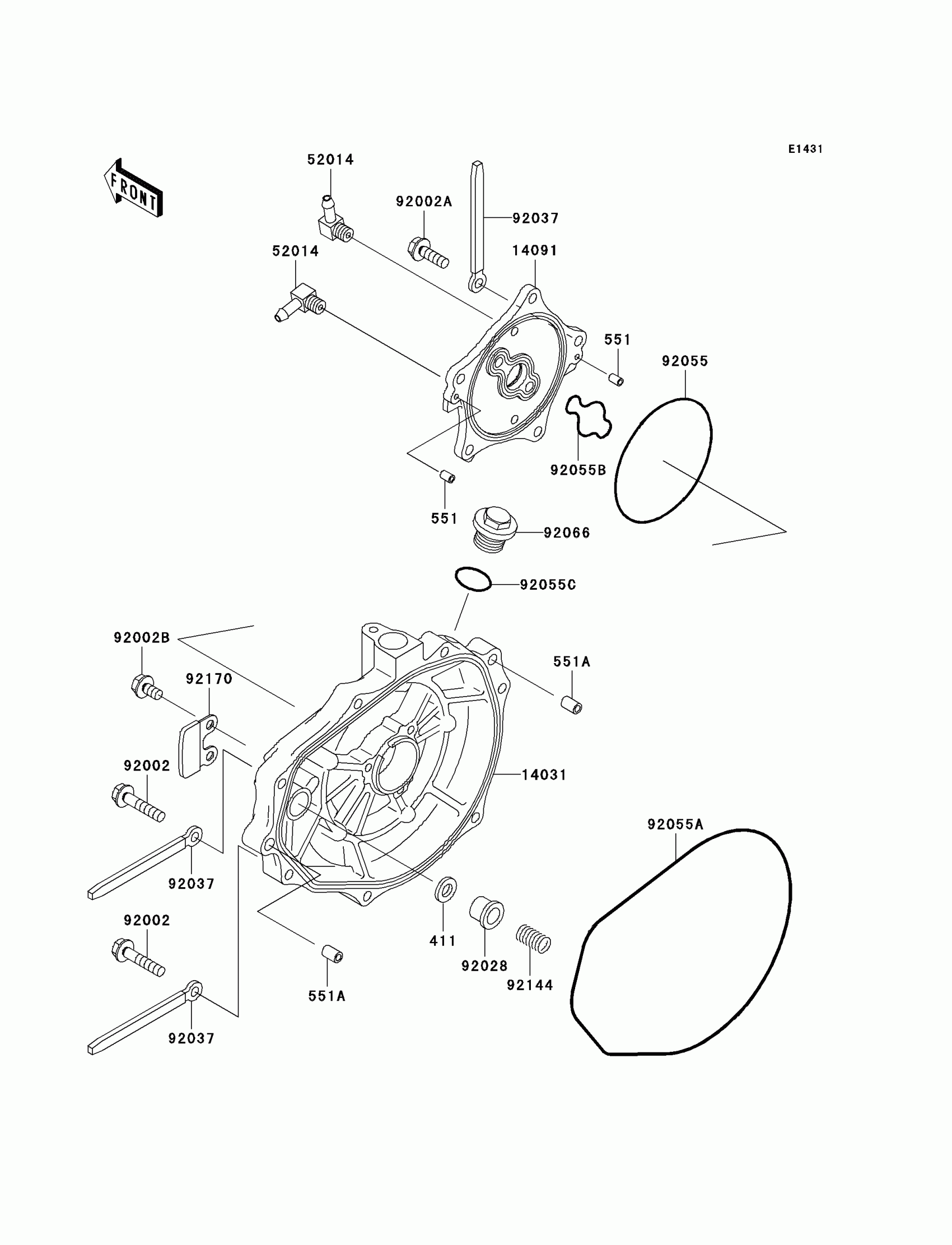

Kawasaki 1100 STX D.I. Engine Cover(s) Diagram

Description

Price

411

WASHER-PLAIN,5MM

411S0500

$0.94

551

PIN-DOWEL

551R0408

$5.38

551A

PIN-DOWEL

551R0812

$7.91

14031

COVER-GENERATOR

14031-3727

Unavailable

14091

COVER

14091-3711

$87.75

52014

ELBOW

52014-3721

$32.85

92002

BOLT,6X30

92002-3726

$4.69

92002A

BOLT,6X20

92002-3755

$4.69

92002B

BOLT,6X12

92002-3763

$4.69

92028

BUSHING

92028-3718

$9.43

92037

CLAMP,L=100

92037-3736

$5.52

92055

RING-O,92X1.9

92055-1284

$7.60

92055A

RING-O,GENERATOR COVER

92055-3712

$29.43

92055B

RING-O

92055-3739

$9.58

92055C

RING-O

92055-515

$2.70

92066

PLUG

92066-3739

$19.24

92144

SPRING

92144-3728

$5.29

92170

CLAMP

92170-3746

$9.89
