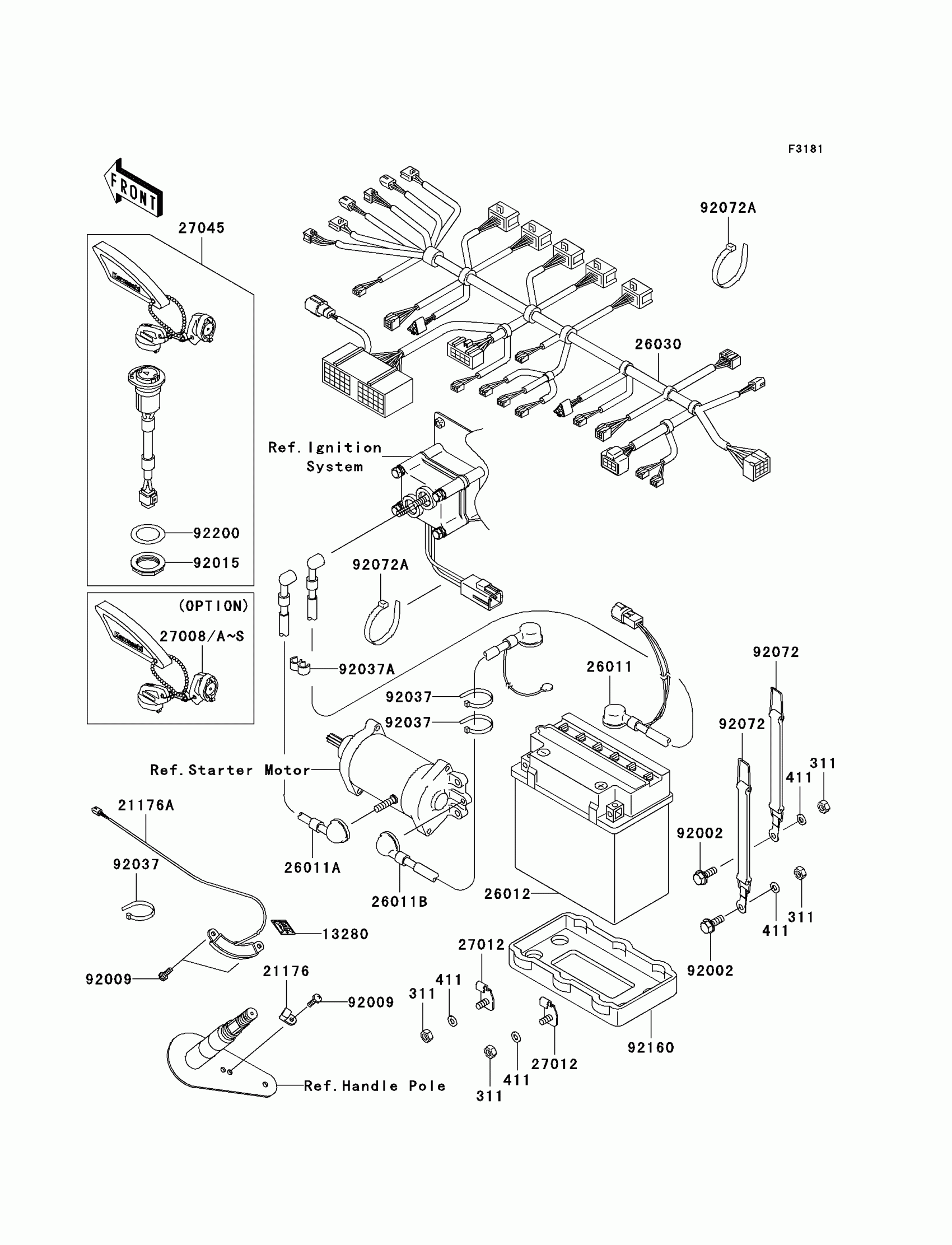

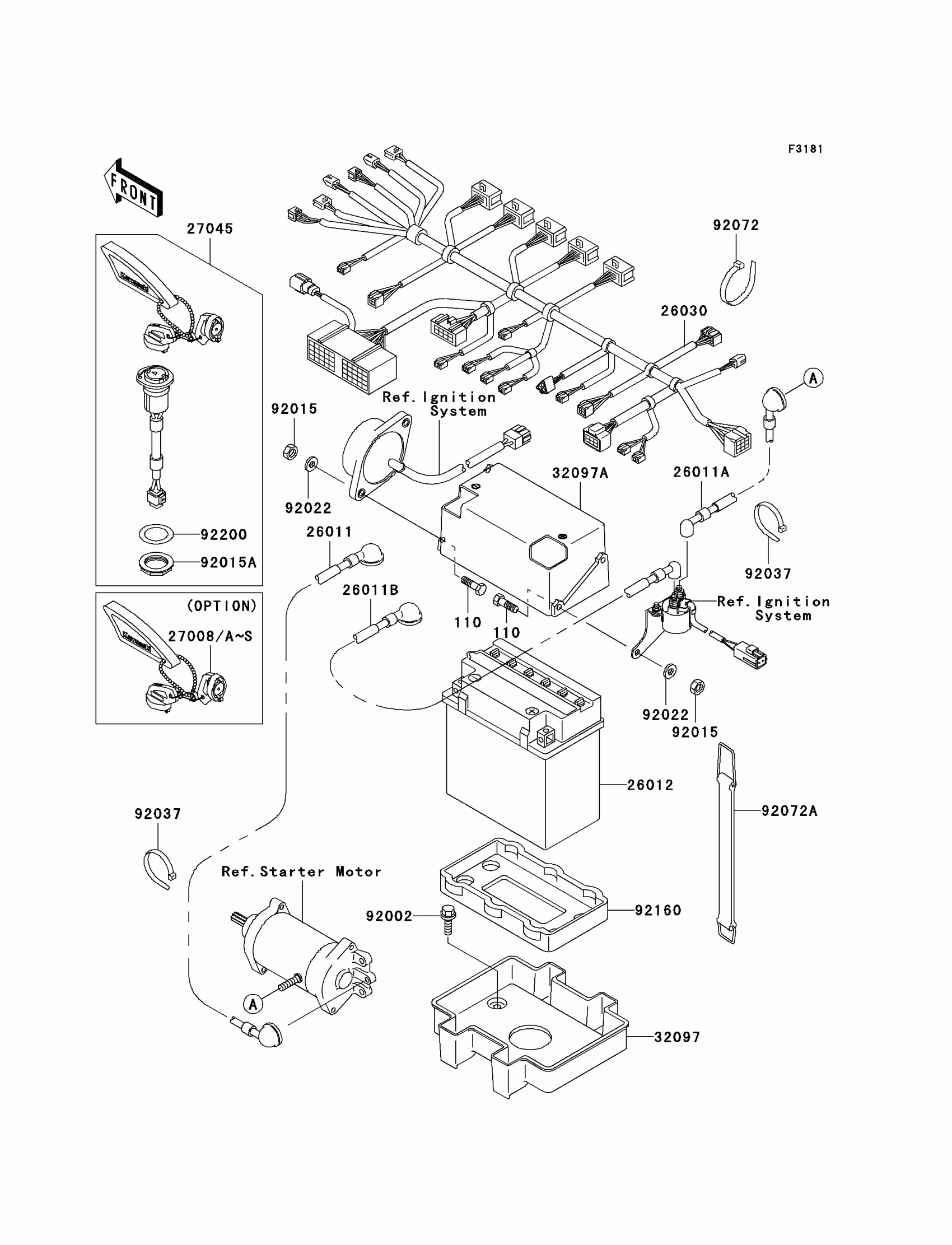

Kawasaki 1100 STX D.I. Electrical Equipment Diagram

#

Description
Price

26011

WIRE-LEAD,BATTERY(-)-STARTER

26011-3850

$130.43

26011A

WIRE-LEAD,RELAY-STARTER

26011-3881

$70.07

26011B

WIRE-LEAD,BATTERY(+)-RELAY

26011-3882

Unavailable

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3725

$150.70

26030

HARNESS,MAIN

26030-3742

Unavailable

27008

KEY-LOCK,MAGNETIC SW,#3001

27008-3745

$75.48

27008A

KEY-LOCK,MAGNETIC SW,#3002

27008-3746

Unavailable

27008B

KEY-LOCK,MAGNETIC SW,#3003

27008-3747

Unavailable

27008C

KEY-LOCK,MAGNETIC SW,#3004

27008-3748

$75.48

27008D

KEY-LOCK,MAGNETIC SW,#3005

27008-3749

$75.48

27008E

KEY-LOCK,MAGNETIC SW,#3006

27008-3750

Unavailable

27008F

KEY-LOCK,MAGNETIC SW,#3007

27008-3751

Unavailable

27008G

KEY-LOCK,MAGNETIC SW,#3008

27008-3752

$75.48

27008H

KEY-LOCK,MAGNETIC SW,#3009

27008-3753

$75.48

27008I

KEY-LOCK,MAGNETIC SW,#3010

27008-3754

Unavailable

27008J

KEY-LOCK,MAGNETIC SW,#3011

27008-3755

$75.48

27008K

KEY-LOCK,MAGNETIC SW,#3012

27008-3756

$75.48

27008L

KEY-LOCK,MAGNETIC SW,#3013

27008-3757

$75.48

27008M

KEY-LOCK,MAGNETIC SW,#3014

27008-3758

Unavailable

27008N

KEY-LOCK,MAGNETIC SW,#3015

27008-3759

Unavailable

27008O

KEY-LOCK,MAGNETIC SW,#3016

27008-3760

$75.48

27008P

KEY-LOCK,MAGNETIC SW,#3017

27008-3761

Unavailable

27008Q

KEY-LOCK,MAGNETIC SW,#3018

27008-3762

$75.48

27008R

KEY-LOCK,MAGNETIC SW,#3019

27008-3763

$75.48

110

BOLT,6X20

110R0620

Unavailable

27008S

KEY-LOCK,MAGNETIC SW,#3020

27008-3764

Unavailable

27045

SWITCH-ASSY,MAIN

27045-3716

$362.14

32097

CASE-BATTERY

32097-3703

$18.59

32097A

CASE-BATTERY

32097-3708

Unavailable

92002

BOLT,6X16

92002-3728

$3.24

92015

NUT,6MM

92015-3767

$3.57

92015A

NUT

92015-3848

$4.85

92022

WASHER

92022-567

$1.89

92037

CLAMP

92037-1173

$2.58

92072

BAND,L=201

92072-3778

$1.61

92072A

BAND,340X22

92072-3805

$11.31

92160

DAMPER

92160-3929

$31.76

92200

WASHER

92200-3736

$2.66
