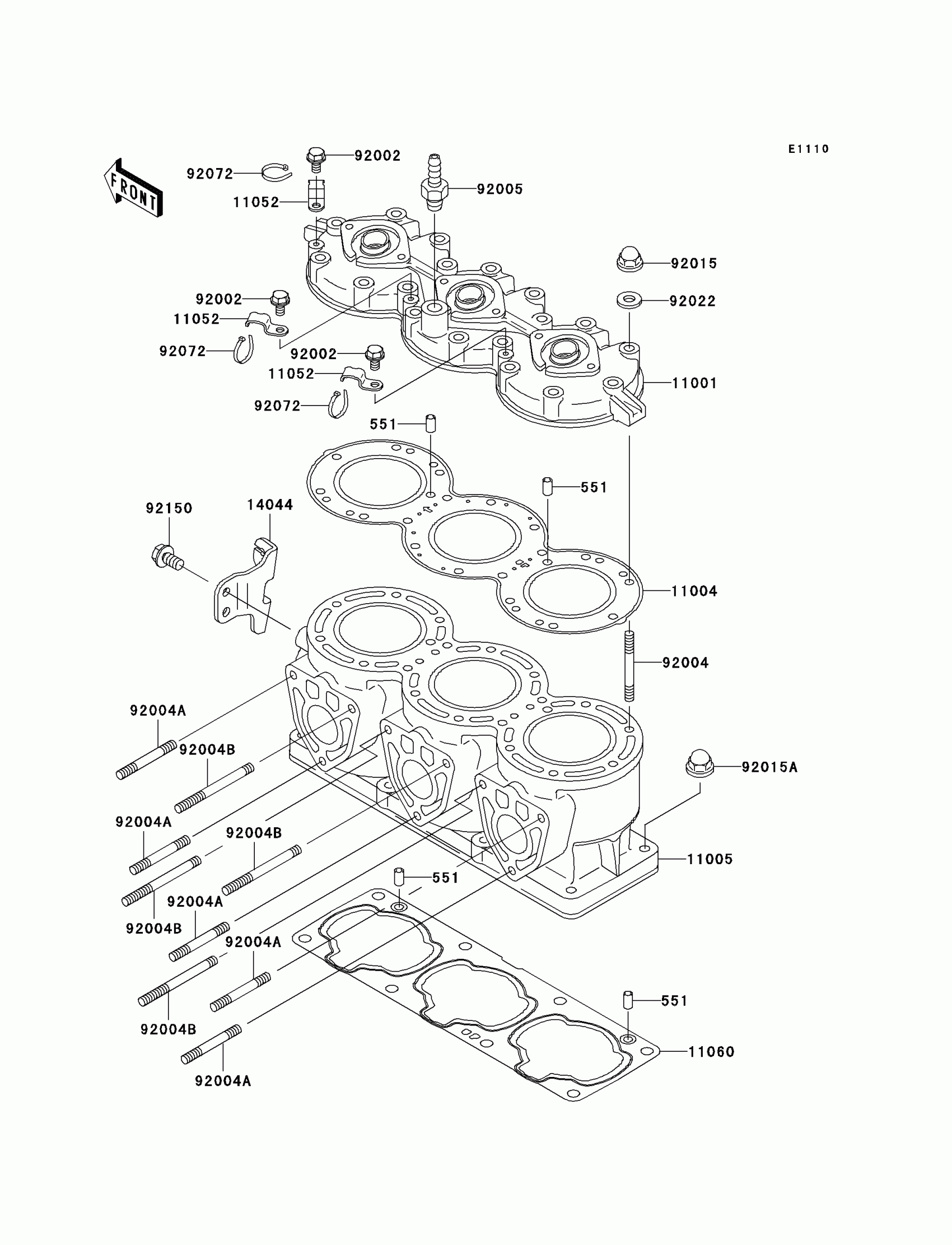

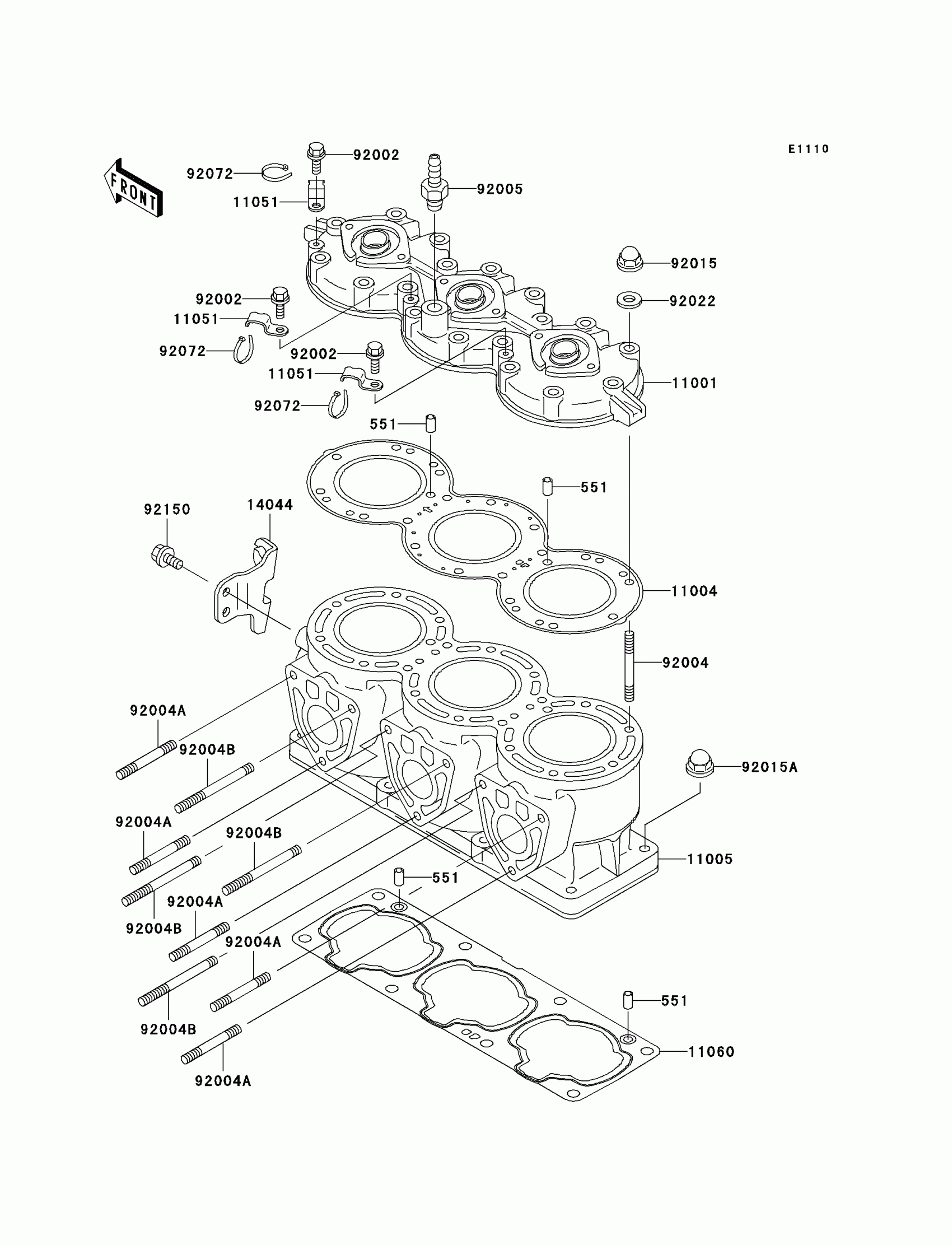

Kawasaki 1100 STX D.I. Cylinder Head/Cylinder Diagram

Description

Price

551

PIN-DOWEL

551R0812

$6.04

11001

HEAD-CYLINDER

11001-3732

Unavailable

11004

GASKET-HEAD

11004-3715

$71.46

11005

CYLINDER-ENGINE

11005-3747

$1,670.12

11051

BRACKET

11051-3813

Unavailable

11060

GASKET,CYLINDER BASE

11060-3817

$69.00

14044

HOLDER-CABLE

14044-3729

$37.15

92002

BOLT,6X12

92002-3763

$3.57

92004

STUD,8X56

92004-3733

$8.36

92004A

STUD,8X40,L=56

92004-3736

$3.79

92004B

STUD,8X75

92004-3744

$8.81

92005

FITTING

92005-3714

$14.12

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,10MM

92015-1649

$3.79

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92072

BAND,L=201

92072-3778

$1.61

92150

BOLT,8X16

92150-3722

$7.49
