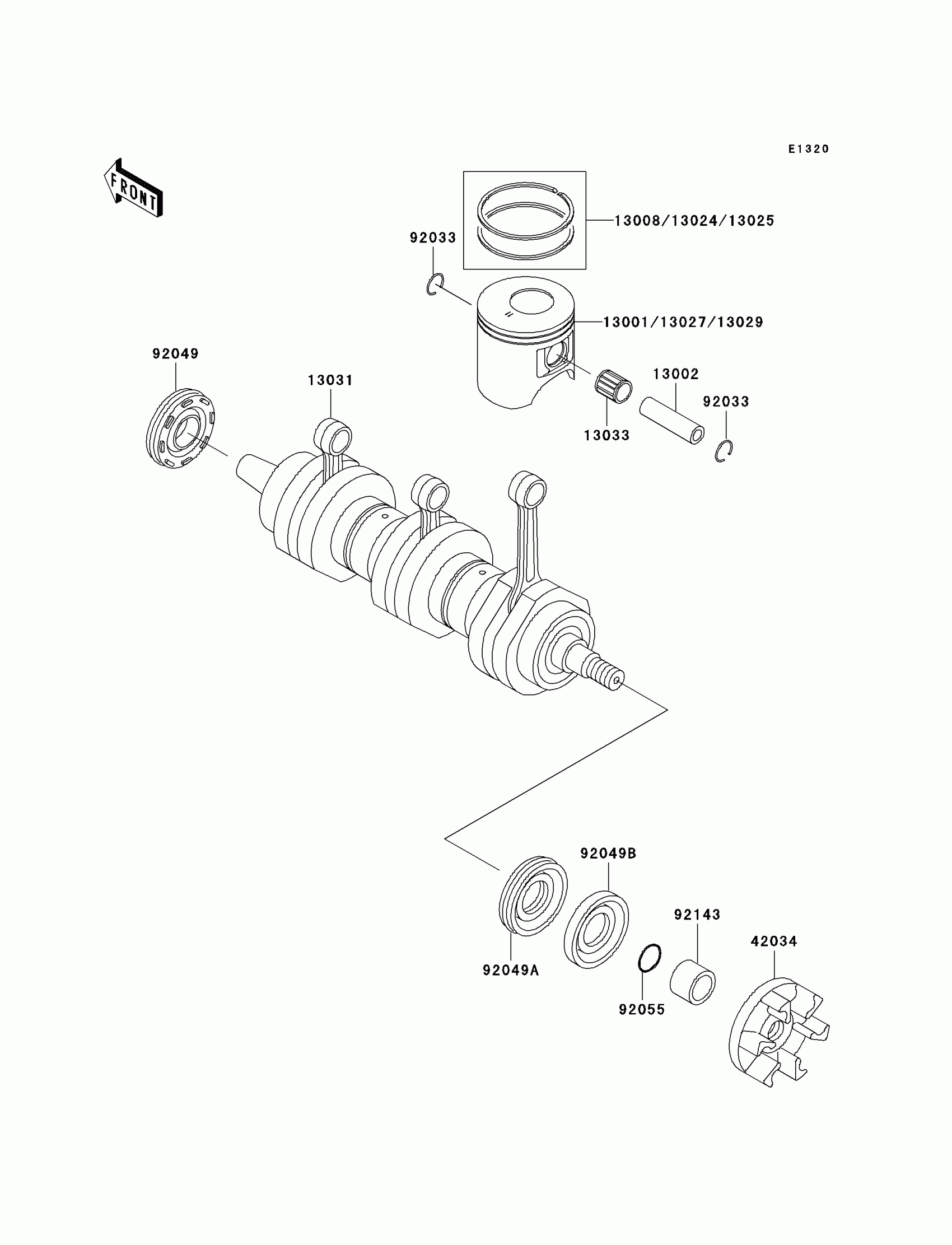

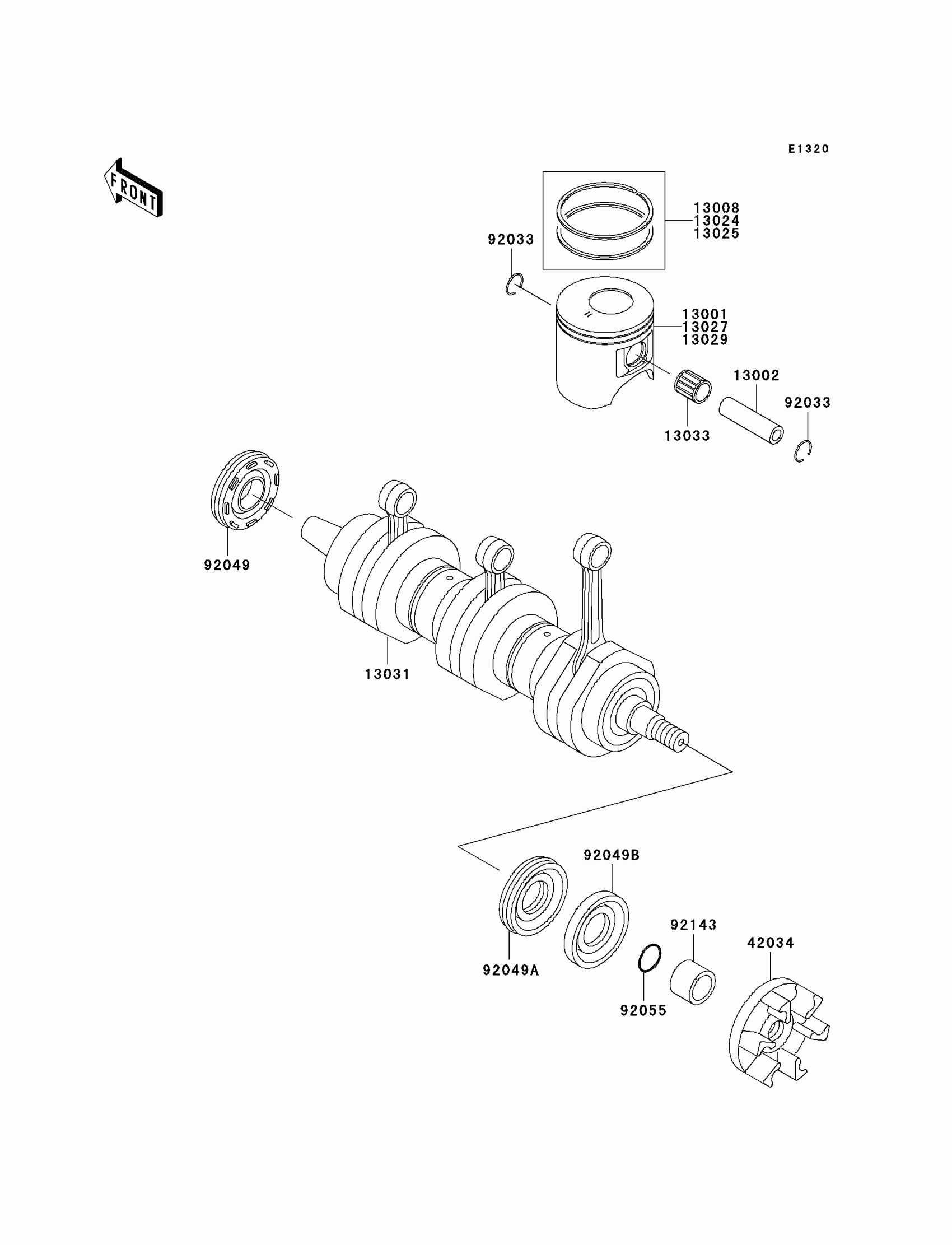

Kawasaki 1100 STX D.I. Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE,STD

13001-3734

$136.45

13002

PIN-PISTON

13002-3708

Unavailable

13008

RING-SET-PISTON,STD

13008-3708

$69.99

13024

RING-SET-PISTON LL,O/S 1.00

13024-3706

$83.87

13025

RING-SET-PISTON L,O/S 0.50

13025-3706

$74.93

13027

PISTON-ENGINE LL,O/S 1.00

13027-3717

$138.20

13029

PISTON-ENGINE L,O/S 0.50

13029-3717

$138.20

13031

CRANKSHAFT-COMP

13031-3731

Unavailable

13033

BEARING-SMALL END

13033-3703

$30.20

42034

COUPLING

42034-3709

$57.45

92033

RING-SNAP

92033-3721

$2.25

92049

SEAL-OIL,FWJ7307210ZS

92049-3713

$32.44

92049A

SEAL-OIL

92049-3715

Unavailable

92049B

SEAL-OIL

92049-3716

Unavailable

92055

RING-O,20.8X2.4

92055-3740

Unavailable

92143

COLLAR

92143-3745

$37.15
