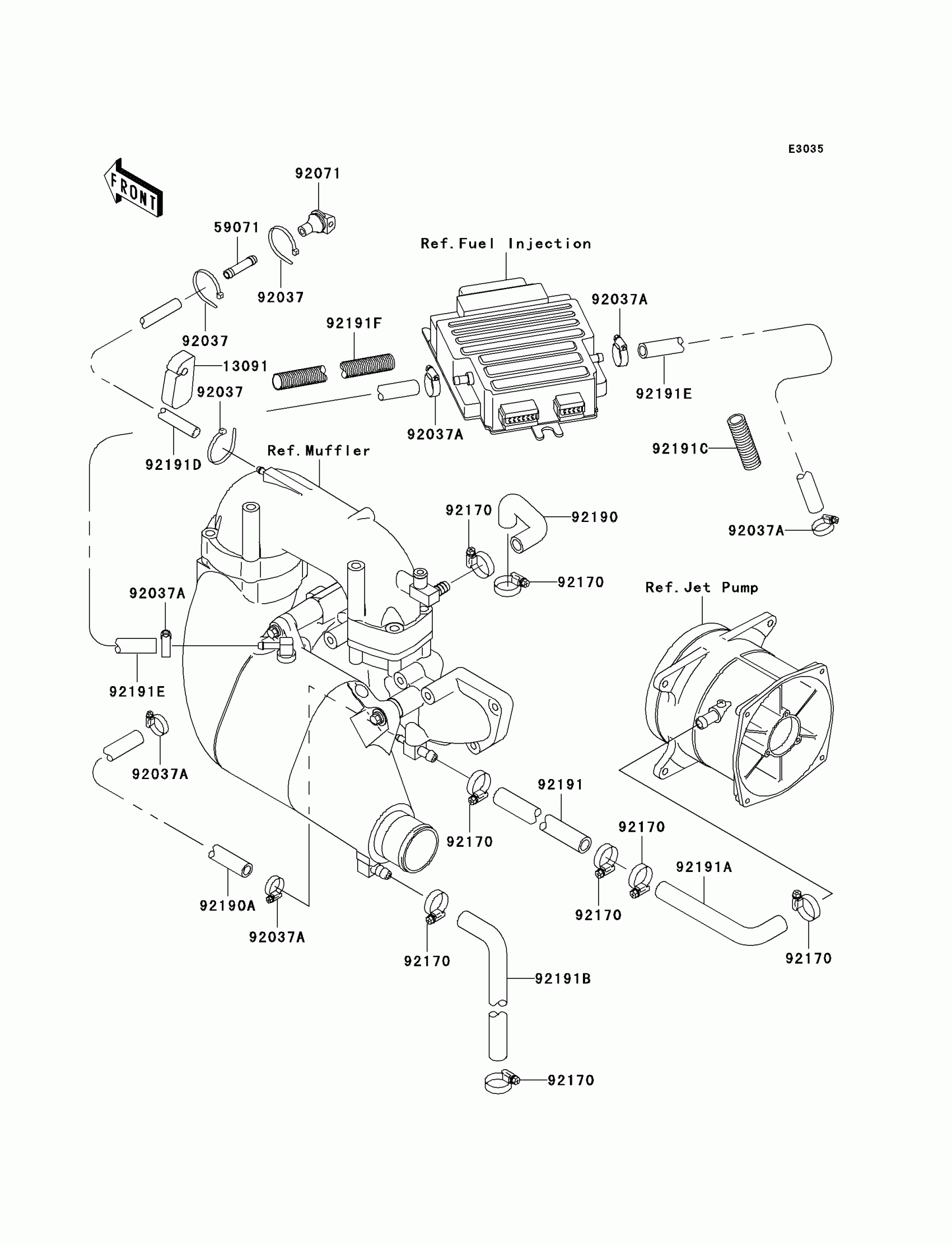

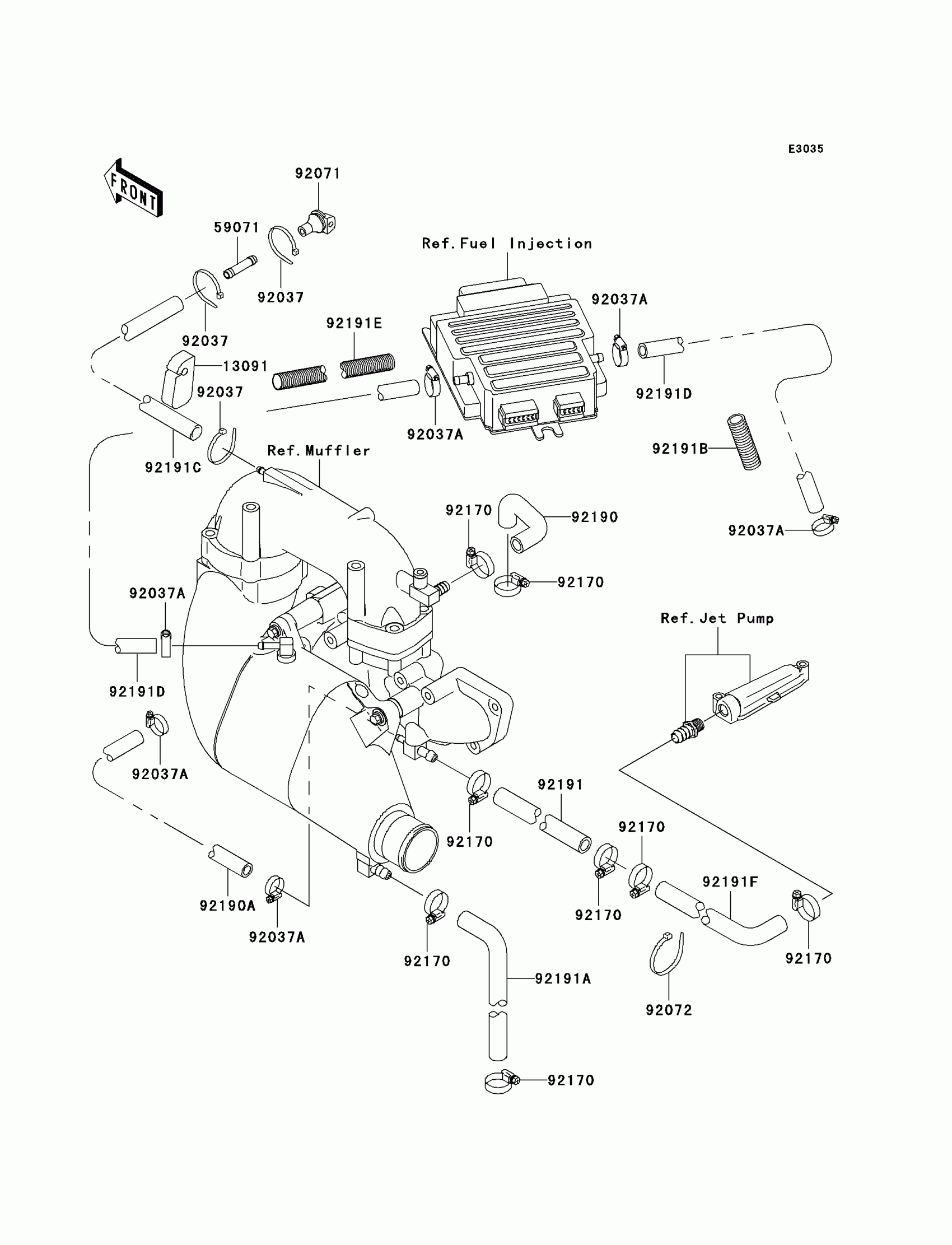

Kawasaki 1100 STX D.I. Cooling Diagram

Description

Price

13091

HOLDER

13091-3712

$4.14

59071

JOINT

59071-3764

$7.51

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3726

$3.63

92071

GROMMET

92071-3815

$4.14

92170

CLAMP

92170-3718

$10.33

92190

TUBE,HEAD-EXHAUSTPIPE

92190-3955

Unavailable

92190A

TUBE,MANIFOLD-COVER

92190-3974

$18.19

92191

TUBE,EXHAUSTMANIFOLD-HULL

92191-3745

$60.31

92191A

TUBE,PUMP-HULL

92191-3785

$24.29

92191B

TUBE,CHAMBER-TAIL PIPE

92191-3850

$78.22

92191C

TUBE

92191-3868

$3.95

92191D

TUBE,7X12X1590

92191-3874

Unavailable

92191E

TUBE,5.8X11.8X620

92191-3875

$13.47

92191F

TUBE

92191-3916

$4.66
