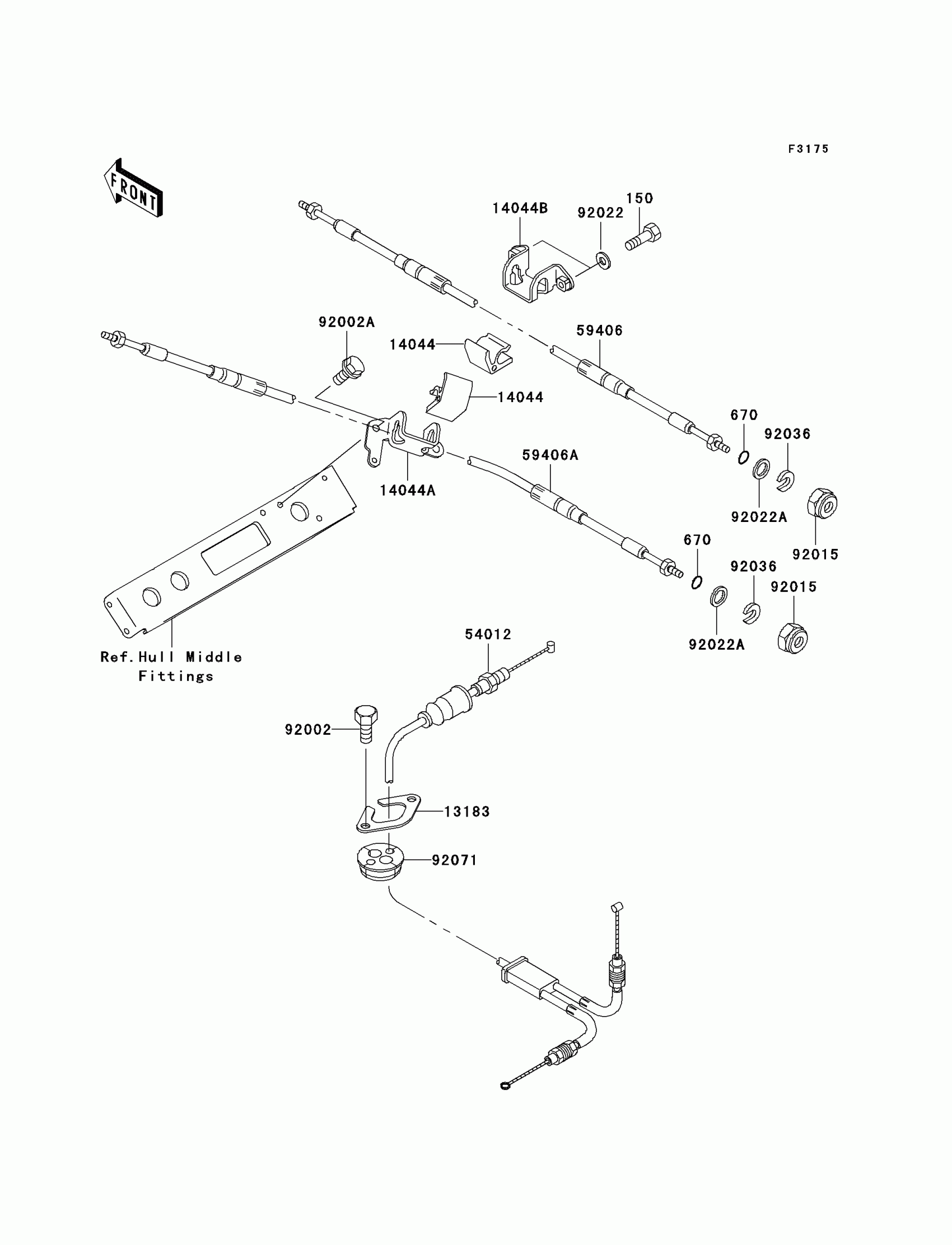

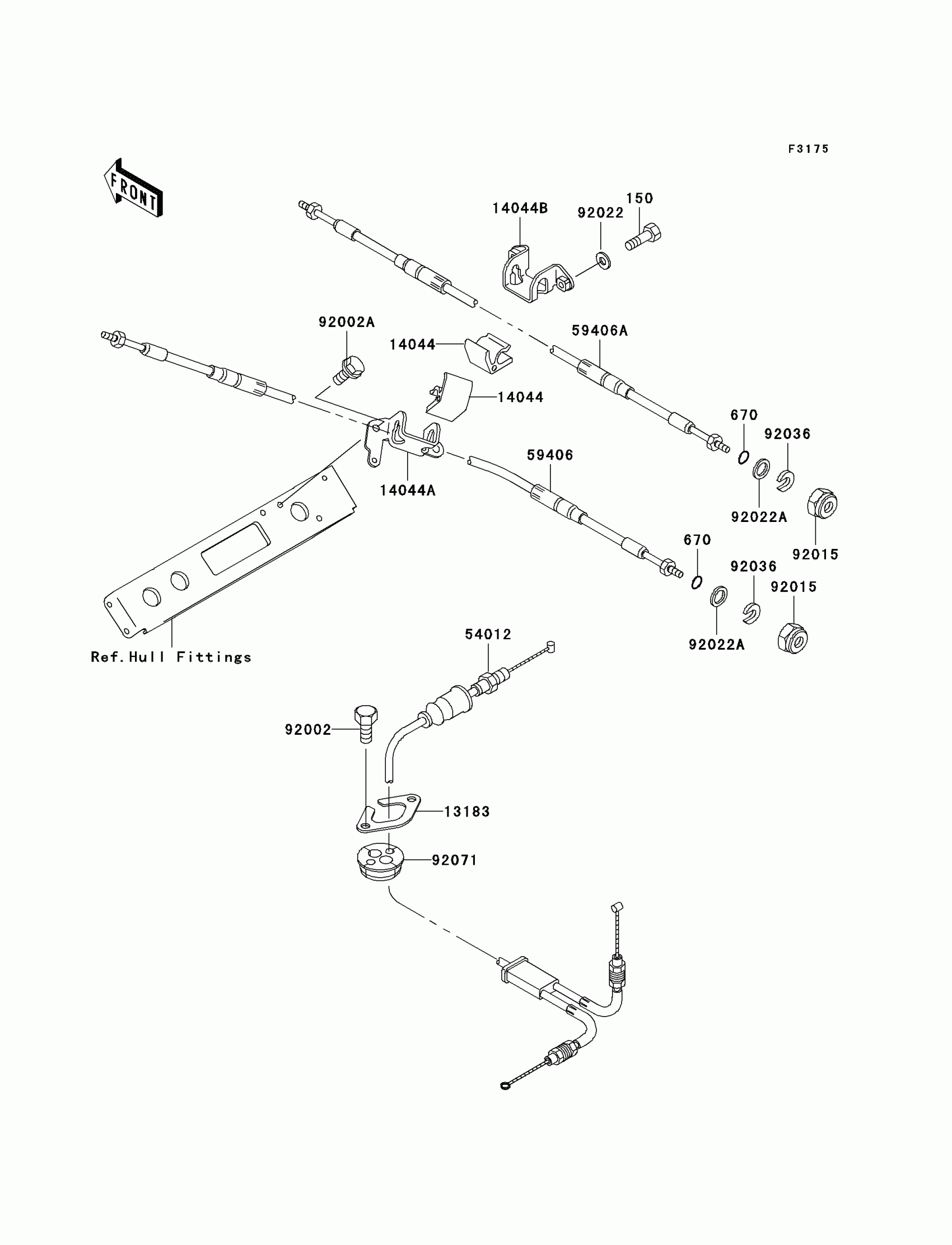

Kawasaki 1100 STX D.I. Cables Diagram

Description

Price

150

BOLT-WS,6X18

150R0618

$4.15

670

O RING,11MM

670B2011

$0.98

13183

PLATE

13183-3810

Unavailable

14044

HOLDER-CABLE,STEERING

14044-3714

$12.71

14044A

HOLDER-CABLE,STEERING

14044-3717

$24.05

14044B

HOLDER-CABLE,STEERING

14044-3731

$23.56

54012

CABLE-THROTTLE

54012-3765

$144.11

59406

CABLE-STRG

59406-3748

Unavailable

59406A

CABLE-STRG,REVERSE

59406-3749

$186.97

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92015

NUT,20MM

92015-526

$30.30

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92022A

WASHER

92022-535

$7.25

92036

RING-SNAP

92036-501

Unavailable

92071

GROMMET,HARNESS

92071-3790

$9.34
