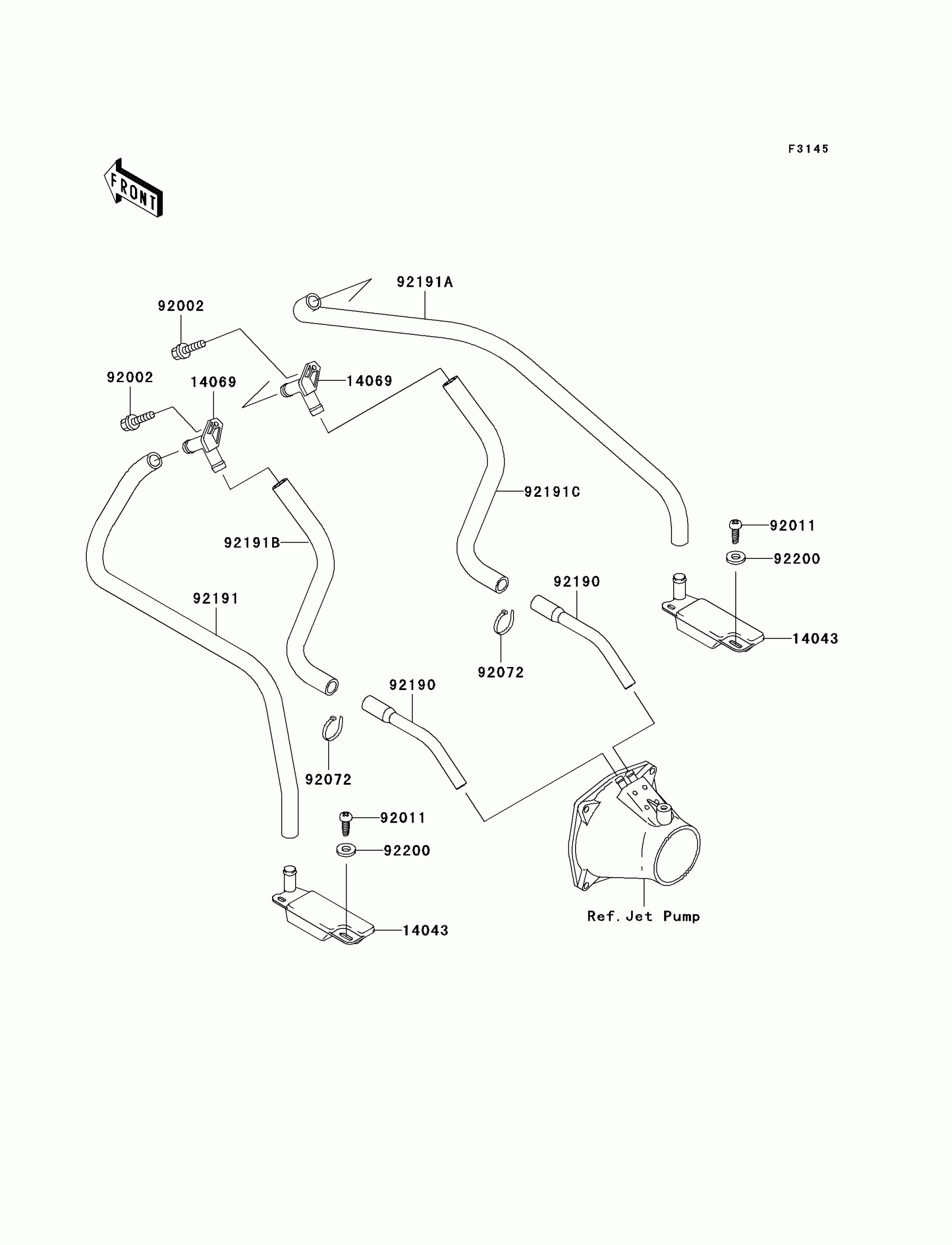

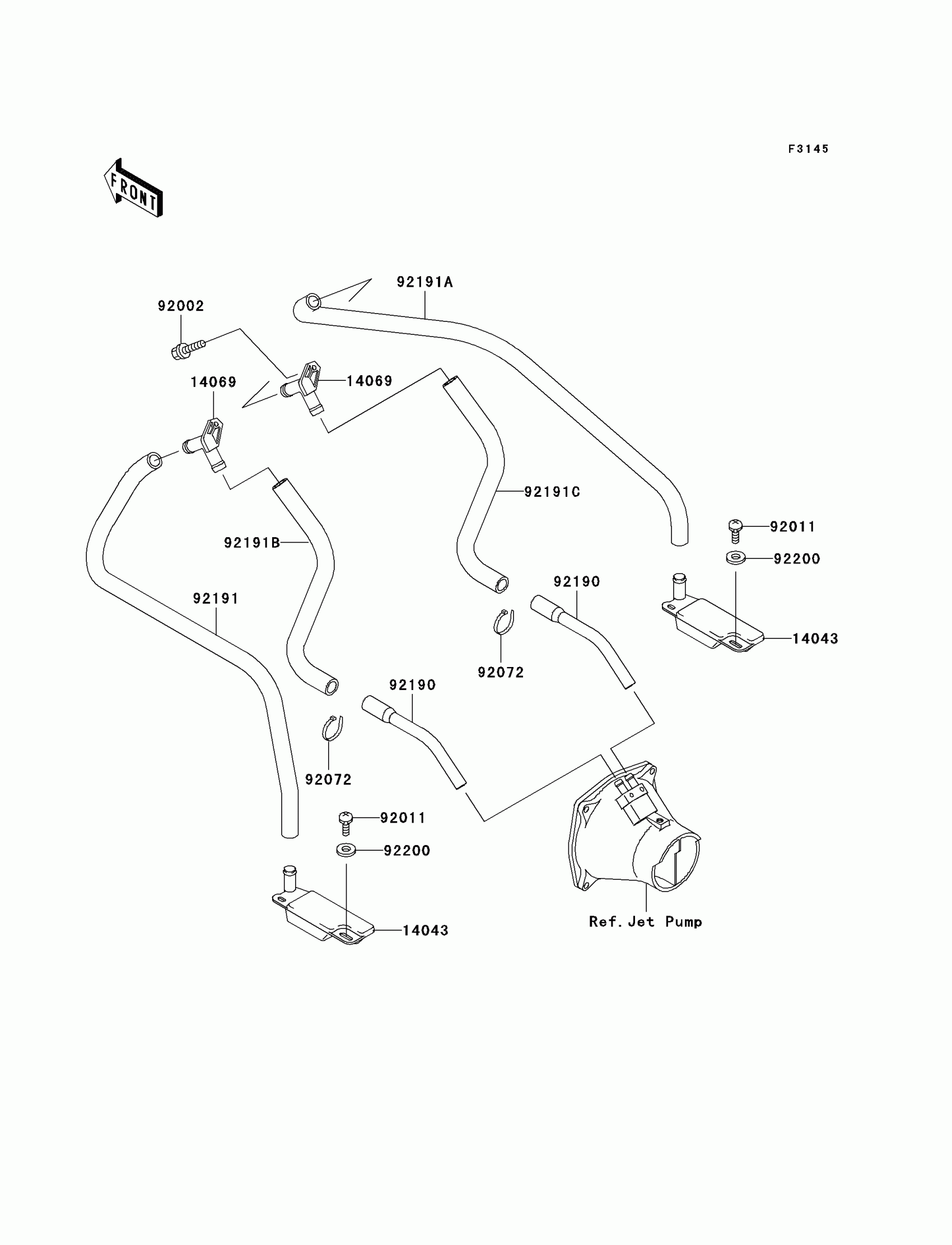

Kawasaki 1100 STX D.I. Bilge System Diagram

#

Description
Price

14043

FILTER

14043-3708

$15.37

14069

BREATHER

14069-3708

$7.23

92002

BOLT,6X16

92002-3728

$3.24

92011

SCREW,TAPPING

92011-561

Unavailable

92072

BAND,L=201

92072-3778

$1.61

92190

TUBE,HULL-NOZZLE

92190-3971

Unavailable

92191

TUBE,FILTER-BREATHER(LH)

92191-3821

$46.69

92191A

TUBE,FILTER-BREATHER(RH)

92191-3822

$56.17

92191B

TUBE,BILGE BREATHER-HULL,LEFT

92191-3927

$56.57

92191C

TUBE,BILGE BREATHER-HULL,RIGHT

92191-3928

$56.57

92200

WASHER,5.9X16X1.5

92200-3714

$1.55
