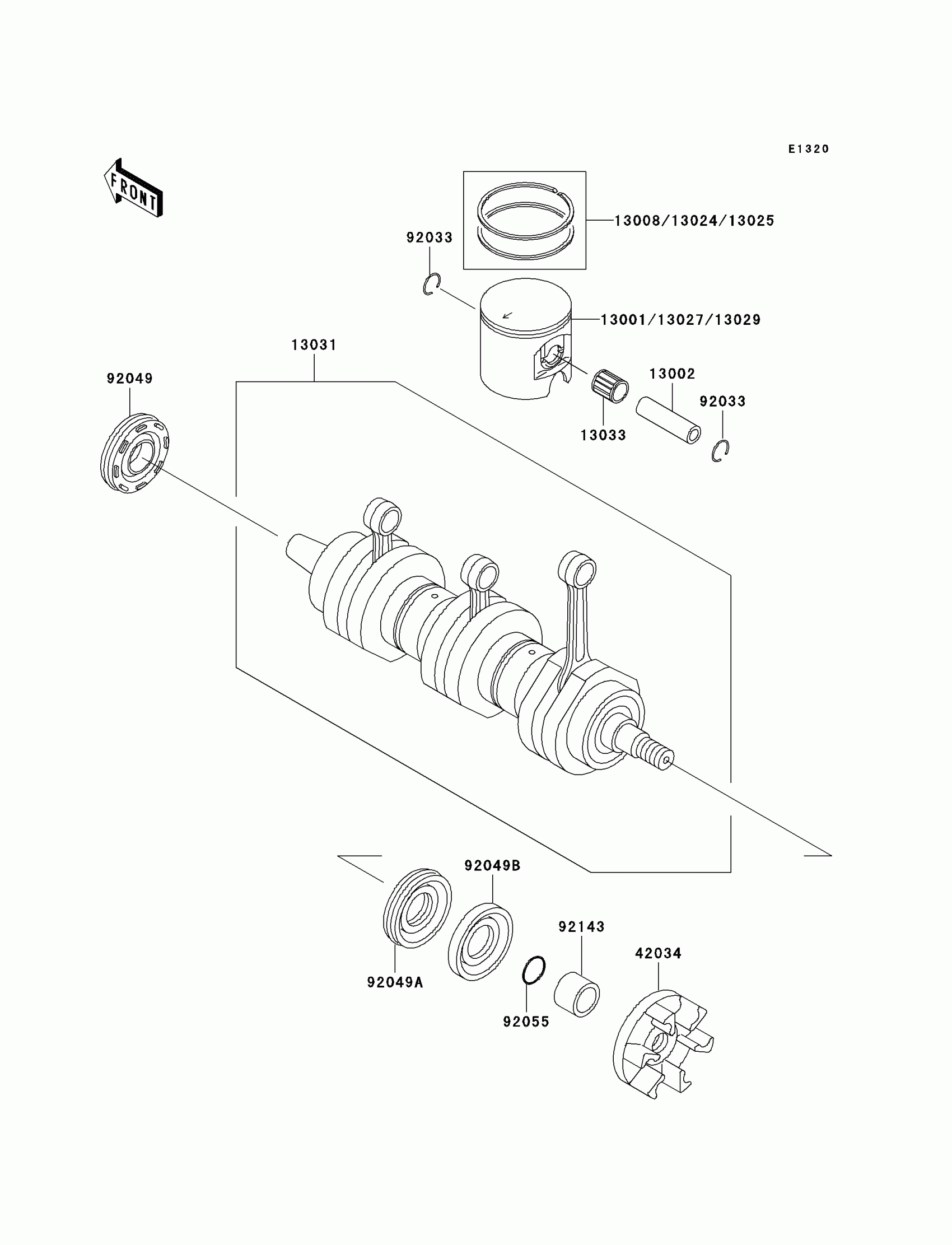

Kawasaki 1100 STX Crankshaft/Piston(s) Diagram

Description

Price

13001

PISTON-ENGINE

13001-3725

$142.47

13002

PIN-PISTON

13002-3706

$24.70

13008

RING-SET-PISTON,STD

13008-3708

$76.68

13024

RING-SET-PISTON LL,O/S 1.00

13024-3706

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-3706

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3715

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3715

Unavailable

13031

CRANKSHAFT-COMP

13031-3731

$1,645.36

13033

BEARING-SMALL END

13033-3703

$28.84

42034

COUPLING

42034-3709

$56.36

92033

RING-SNAP

92033-3721

$2.76

92049

SEAL-OIL,FWJ7307210ZS

92049-3713

$33.99

92049A

SEAL-OIL

92049-3715

$49.26

92049B

SEAL-OIL

92049-3716

$28.89

92055

RING-O,20.8X2.4

92055-3740

$3.74

92143

COLLAR

92143-3745

$36.45
