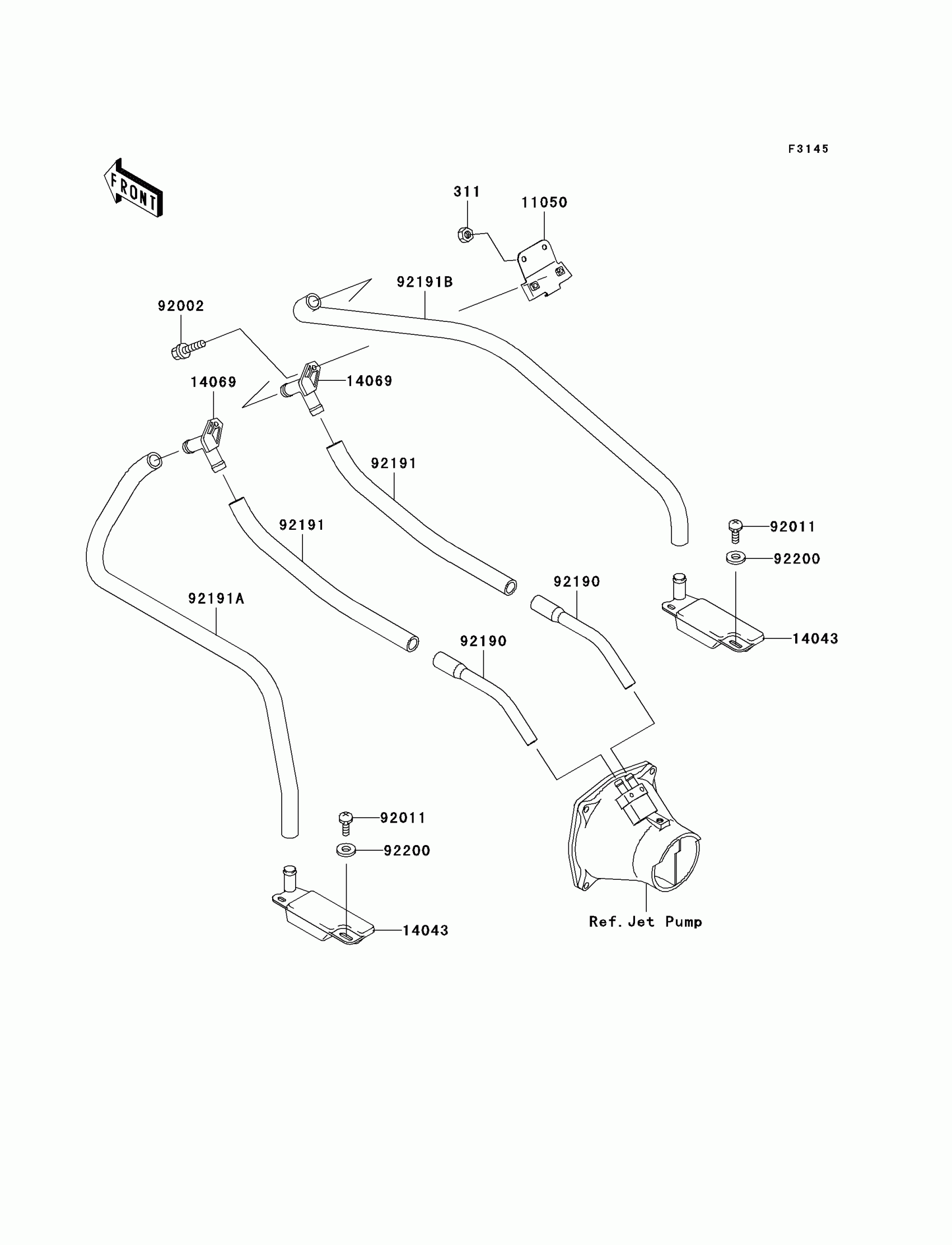

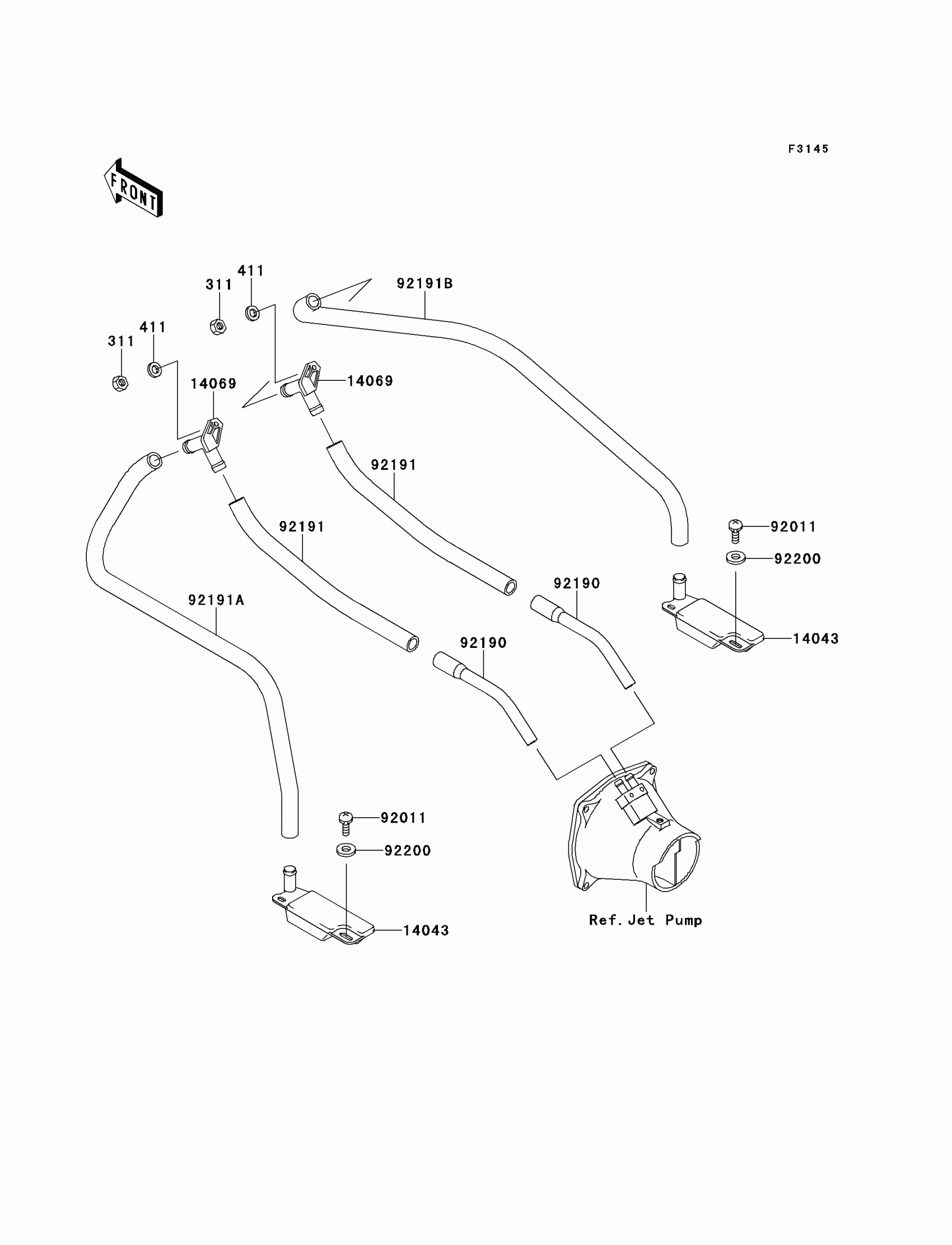

Kawasaki 1100 STX Bilge System Diagram

#

Description
Price

311

NUT-HEX,6MM

311R0600

$0.70

11050

BRACKET

11050-3734

Unavailable

14043

FILTER

14043-3708

$15.65

14069

BREATHER

14069-3708

$9.50

92002

BOLT,6X16

92002-3728

$4.69

92011

SCREW,TAPPING

92011-561

Unavailable

92190

TUBE,HULL-NOZZLE

92190-3971

Unavailable

92191

TUBE,BREATHER-HULL

92191-3820

Unavailable

92191A

TUBE,FILTER-BREATHER(LH)

92191-3821

$45.85

92191B

TUBE,FILTER-BREATHER(RH)

92191-3822

$55.15

92200

WASHER,5.9X16X1.5

92200-3714

$2.14
