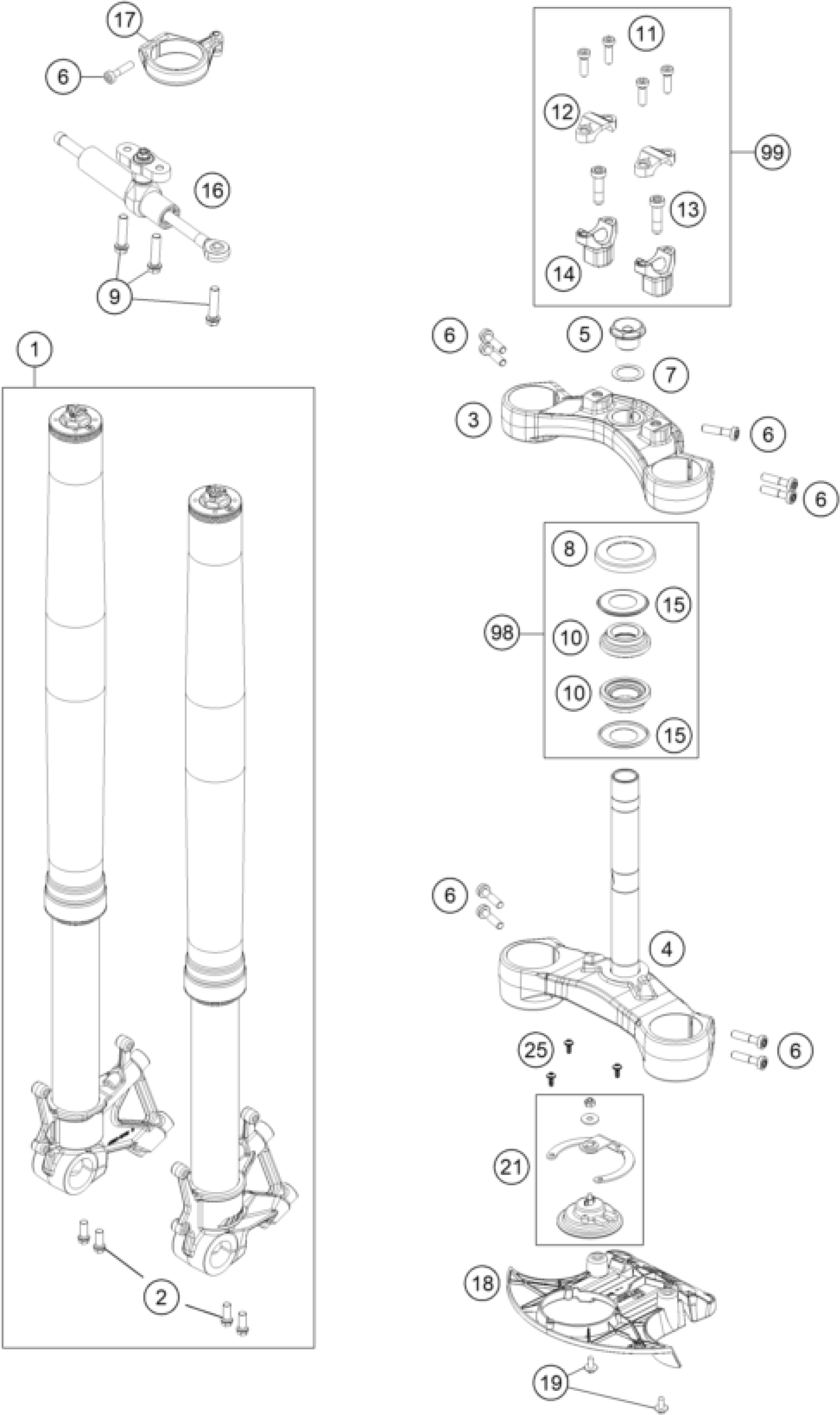

KTM 1090 Adventure R 2019 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork Adventure-R 2017

14188Q2501

Unavailable

2

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

3

Triple clamp

6070113403233S

Unavailable

4

Triple clamp

6040103203233S

Unavailable

5

STEERING HEAD SCREW 09

6900103600001

Unavailable

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

7

thrust wash DIN0988-25x35x0,5

0988253505

Unavailable

8

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

9

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

10

STEERINGHEAD KPL.17

69001181000

Unavailable

11

HH collar screw M8x25

0025080256

Unavailable

12

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

Unavailable

15

Stearing head gasket

69001084100

Unavailable

16

STEERING DAMPER CPL.

16181N53ES

Unavailable

17

CLAMP STEERING DAMPER

6031200700033S

Unavailable

18

TRIPLECLAMP-FACEPLATE BELOW

60308024200

Unavailable

19

SPECIAL SCREW M6X15X3

83008000015

Unavailable

21

HORN

60311060100

Unavailable

25

EJOT PT screw K50x12

0081050121

Unavailable

98

Stearing head rep. Kit

69001181010

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable
