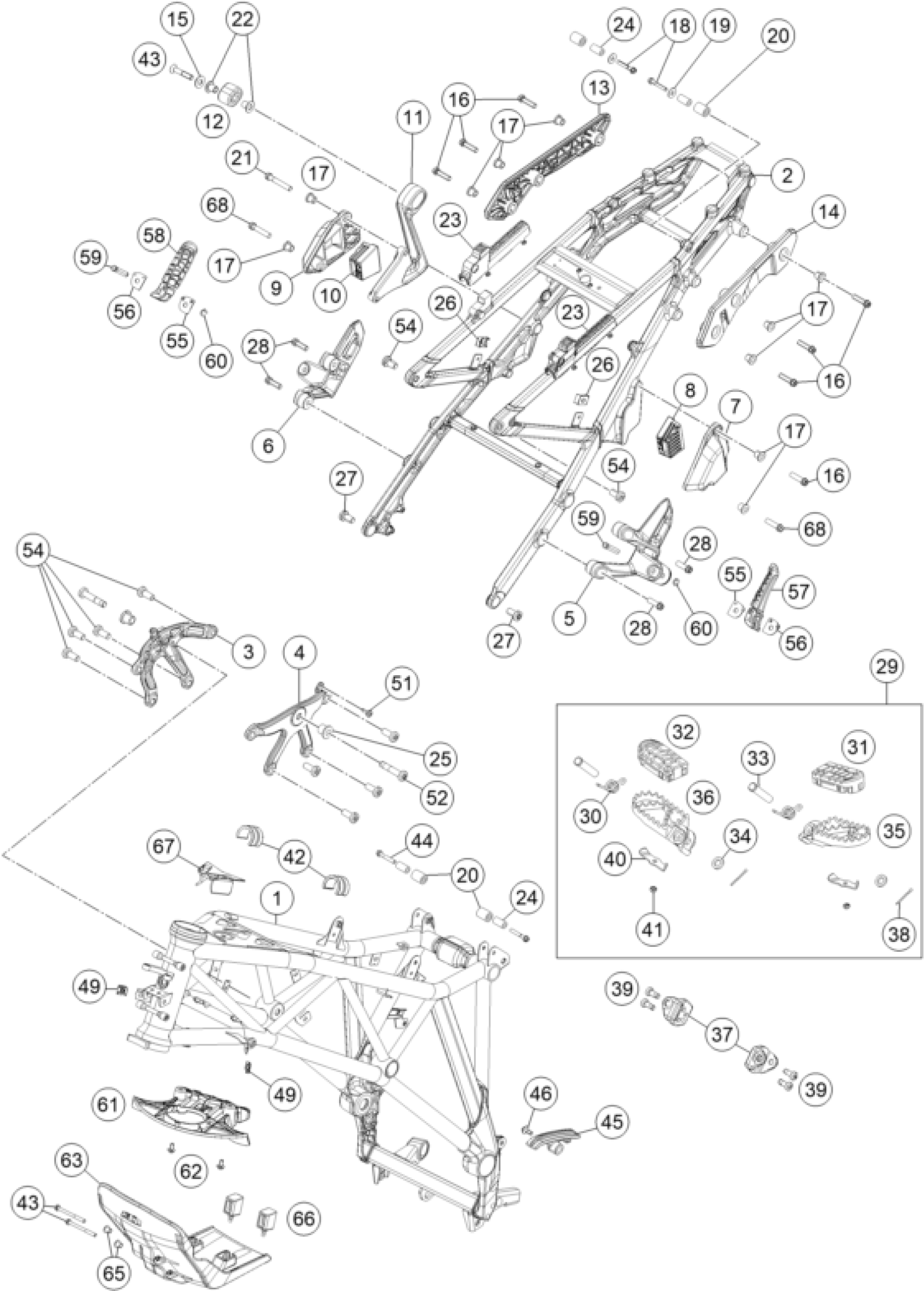

KTM 1090 Adventure R 2018 FRAME Diagram

#

Description
Price

1

Frame "608RA"

60803001100EB

$2,329.92

2

SUB FRAME

6030300200033

$999.41

3

ENGINE SUPPORT R/S BLACK

6030300600033S

$107.33

4

ENGINE SUPPORTL/S BLACK

6030300500033S

$107.33

5

FOOTR. SUP. REAR L/S BLACK

6030304800033S

$134.16

6

FOOTR. SUP. REAR R/S BLACK

6030304900033S

$126.78

7

SUITCASE HOOK L/S

60312010050

$7.66

8

Case clamp rubber left

60712010060

$3.08

9

SUITCASE HOOK R/S

60312011050

$7.38

10

Case clamp rubber right

60712011060

$3.08

11

EXHAUST BRACKET

6030508400033S

$104.80

12

DAMPING RUBBER

61305068000

$15.51

13

CASE BAR R/S

60312021250

$8.97

14

CASE BAR L/S

60312020250

$8.97

15

WASHER 8MM GALVANIZED

54633037000

$6.07

16

HH collar screw M8x30

0025080306

$3.08

17

SPACER BUSHING 13X17X8,2

60303002058

$6.44

18

HH collar screw M6x35 TX30

0025060356

$3.08

19

Washer DIN9021-A 6.4

0021060003

$2.05

20

RUBBER SEAT-CONTACT SURFACE

60307048000

$5.70

21

HH collar screw M8x50 TX40

0025080506

$3.08

22

BUSHING

60305069000

$2.05

23

PLATE RUBBER SEAT

60307040041

$10.46

24

BUSH 6.2X12X21.5

60307049000

$5.23

25

SPACER BUSH ENGINE SUPPORT

60303007000

$10.65

26

clip nut M6

54603048100

$4.11

27

AH collar screw M10x20 ISA45

0035100209

$7.85

28

Special screw M8X25 SL TX40

76009062000

$2.05

29

FOOTPEG LS+RS CPL.

60003040133

$147.07

30

FOOTREST SPRING L/S & R/S

54603041000

$5.23

31

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

32

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

33

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

34

washer DIN 125 A 10.5

0125100003

$2.05

35

FOOTREST L/S 08

78003040050

$43.66

36

FOOTREST R/S 08

78003041050

$43.66

37

FOOTREST MOUNTING

6030310109533S

$29.63

38

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

39

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

40

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

41

Self locking nut DIN 985 M5

0985050003

$2.05

42

SPACER FUEL TANK 05

61007014000

$6.63

43

HH collar screw M6x40 TX30

0025060406

$3.08

44

HH collar screw M6x30 TX30

0025060306

$3.08

45

CHAIN GUIDE

60303070000

$10.37

46

HH collar screw M6x15 TX30

0024060156

$3.08

49

RANGE CHANGE METAL NUT M5

54603048200

$5.23

51

special screw M5x12

69008021160

$4.11

52

AH collar screw M10x50 ISA45

0035100509S

$7.10

54

AH collar screw M10x24 ISA45

0035100249

$3.08

55

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

56

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

57

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

58

Footrest cmpl. r/s rear 03

60003051000

$61.89

59

footrest bolt, rear

60003044100

$8.03

60

retaining washer DIN 6799 - 6

0799060003

$1.49

61

TRIPLECLAMP-FACEPLATE BELOW

60308024200

$16.54

62

EJOT PT screw K50x12

0081050121

$2.05

63

SKID PLATE ADV

6030319000030

$68.34

65

COLLAR BUSHING 6,3X8X13X9,5

45239060050

$5.23

66

VIBRATION DAMPER 03

60003096000

$3.08

67

STEARING HEAD COVER

60303003010

$10.00

68

HH collar screw M8x25

0025080256

$2.05
