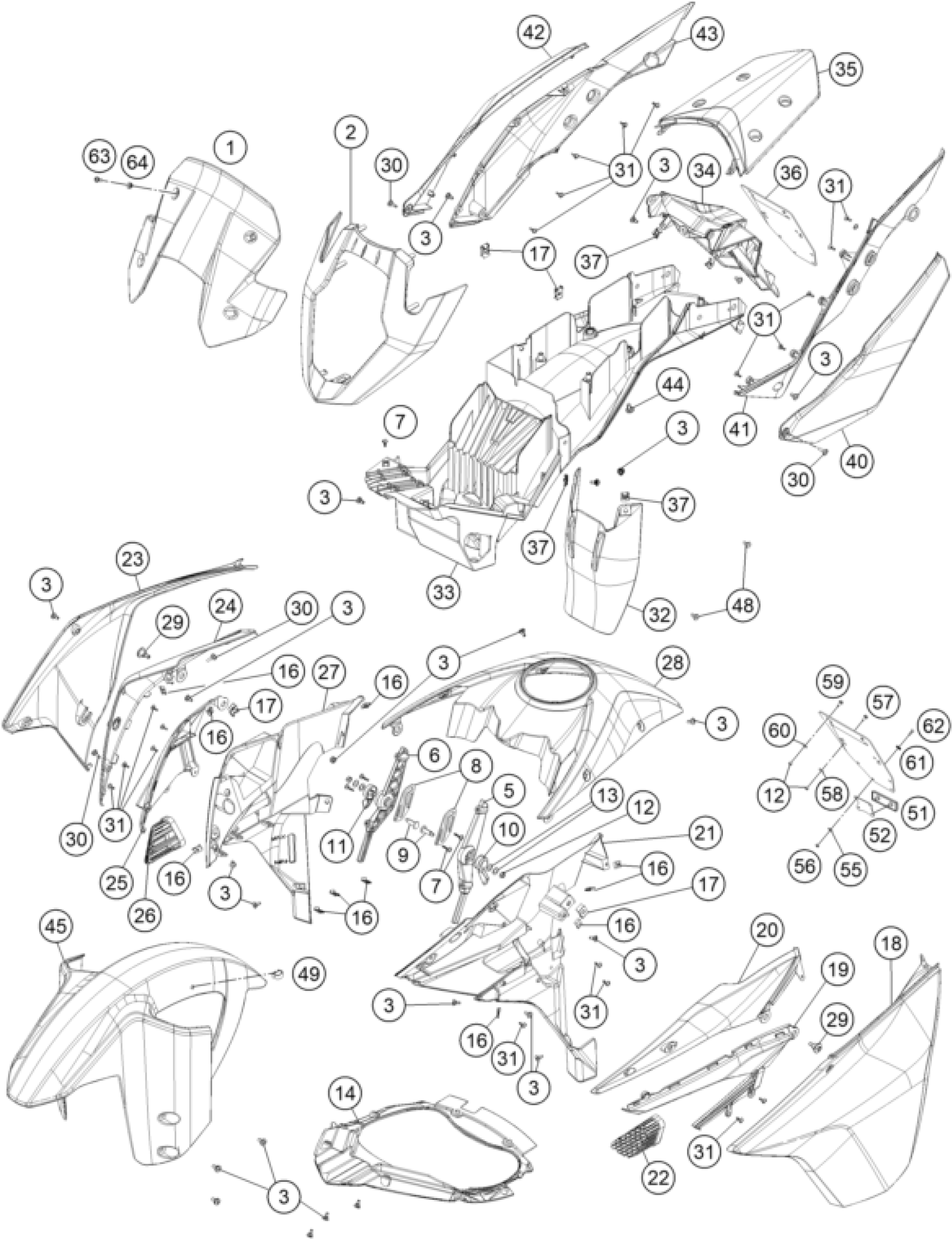

KTM 1090 ADVENTURE R 2017 MASK, FENDERS Diagram

#

Description
Price

1

WIND SHIELD SHORT USA

60308108500

$160.81

2

HEADLIGHT MASK

6030800100033

$29.49

3

special screw M5x12

69008021160

$4.11

5

WIND SHIELD SUPPORT L/S

60308008050

$19.16

6

WIND SHIELD SUPPORT R/S

60308008051

$22.43

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

SLIDING SHEET WIND SHIELD

60308008055

$6.63

9

TENSION BOLT

60308008056

$11.02

10

TENSION LEVER L/S

60308008052

$6.35

11

TENSION LEVER R/S

60308008053

$6.35

12

Self lock. nut DIN985-M6-A2

0985060003

$2.05

13

BELLEVILLE SPRING 8,2X15X0,8

0093081508

$1.49

14

COCKPIT COVER LOWER SIDE

60308005000

$19.37

16

clip nut M5

69008021080

$3.08

17

clip nut M6

54603048100

$4.11

18

Tank spoiler left

6030805000028

$53.10

19

AIR INTAKE L/S

6030800205033

$16.35

20

Fairing left

6030800200028

$30.38

21

INNER LINING LEFT

60308025100

$28.72

22

COVERING GRID AIR INTAKE L/S

60308021050

$12.15

23

Tankspoiler right

6030805100028

$53.10

24

Fairing right

6030800300028

$30.38

25

AIR INTAKE R/S

6030800305033

$17.10

26

COVERING GRID AIR INTAKE RIGHT

60308031050

$11.12

27

INNER LINING RIGHT

60308026100

$28.72

28

Tank cover black 17

6030803000030

$70.21

29

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

30

special screw M5x17

69008021060

$3.08

31

EJOT PT screw K50x12

0081050121

$2.05

32

SPLASH PROTECTION

60304050000

$14.58

33

Tail end lower part

60308019200

$57.96

34

NUMBER PLATE SUPPORT

60308015000

$18.97

35

REAR FENDER

6030801300033

$13.46

36

license plate mouning plate

60012081200

$8.41

37

RANGE CHANGE METAL NUT M5

54603048200

$5.23

40

Tail spoiler left white

6030804100028

$30.57

41

REAR SIDE COVER LEFT

6030804300033

$25.89

42

Tail spoiler right white

6030804200028

$30.57

43

REAR SIDE COVER RIGHT

6030804400033

$25.89

44

SPECIAL SCREW M6X15X3

83008000015

$3.08

45

FRONT FENDER

6030801000033

$65.36

48

HH collar screw M6x12 TX30

0025060126

$3.08

49

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

51

reflector, red

58412080200

$5.23

52

BRACKET FOR REFLECTOR

58412080050

$6.07

55

WASHER DIN0125-A 5,3

0125050003

$1.49

56

Self locking nut DIN 985 M5

0985050003

$2.05

57

HH collar screw M6x15 TX30

0024060156

$3.08

58

Washer DIN9021-A 6.4

0021060003

$2.05

59

HH collar screw M6x20 TX30

0024060206

$3.08

60

WASHER DIN0125-A 6,4

0125060003

$1.49

61

WASHER 6MM

40006006000

$1.49

62

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

63

Special screw M5x14

60708008071

$2.05

64

rubber bush windshield fixatio

60708008070

$2.05
