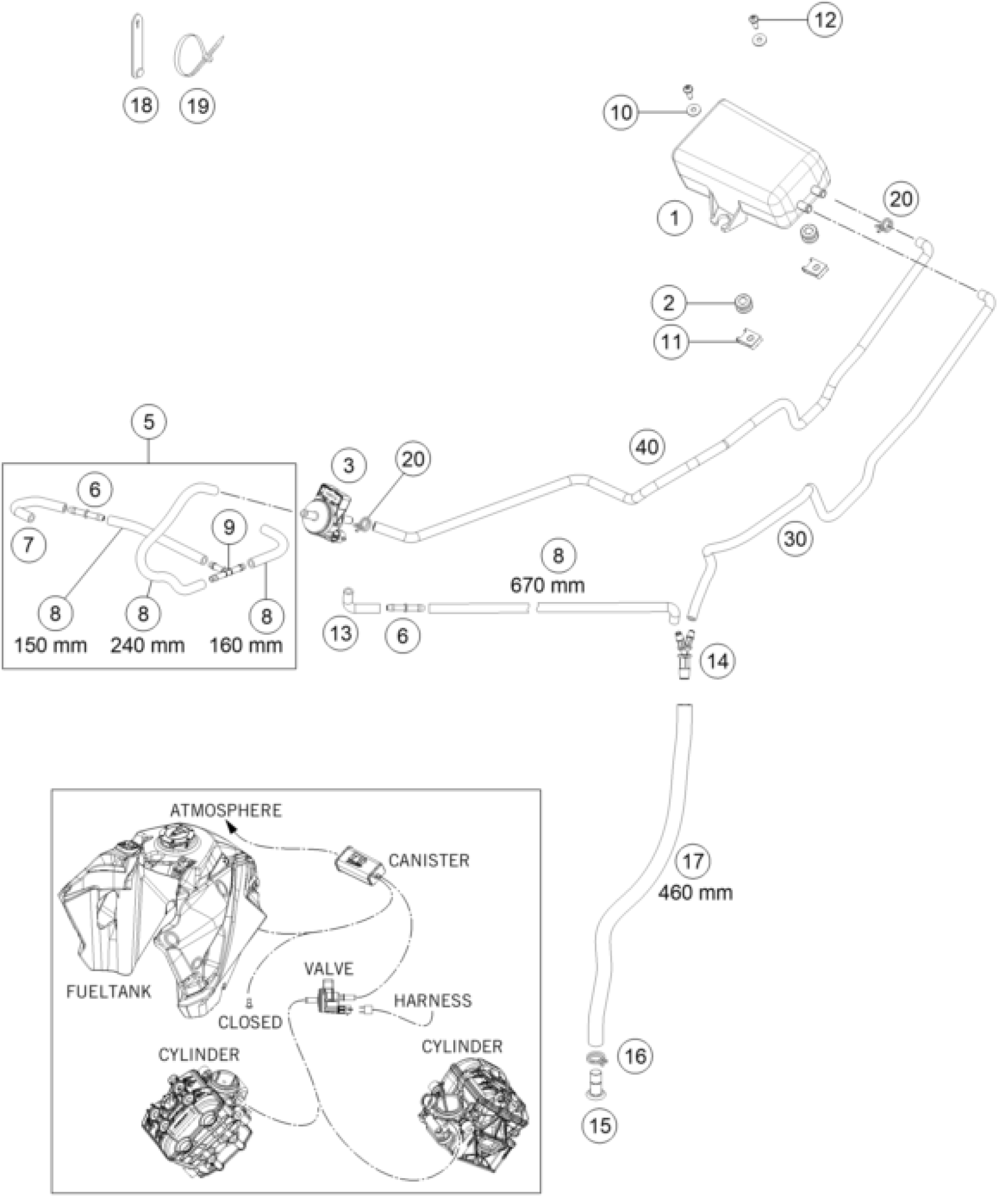

KTM 1090 ADVENTURE R 2017 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

EVAPORATE CANISTER

60415001000

Unavailable

2

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

3

EVAP valve

76015015000

Unavailable

5

Hose

60715020033

Unavailable

7

HOSE PURGE VALVE

61415021000

Unavailable

8

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

9

T-connector TS-6 03

60015022000

Unavailable

10

washer DIN 9021 A - 5.3

0021050003

Unavailable

11

clip nut M6

54603048100

Unavailable

12

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

14

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

15

PLUG D=10

61315026000

Unavailable

16

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

17

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

18

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

19

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

20

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

6

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

13

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

30

Hose tank - ACF

60715023000

Unavailable

40

Hose purge valve - ACF

60715024000

Unavailable
