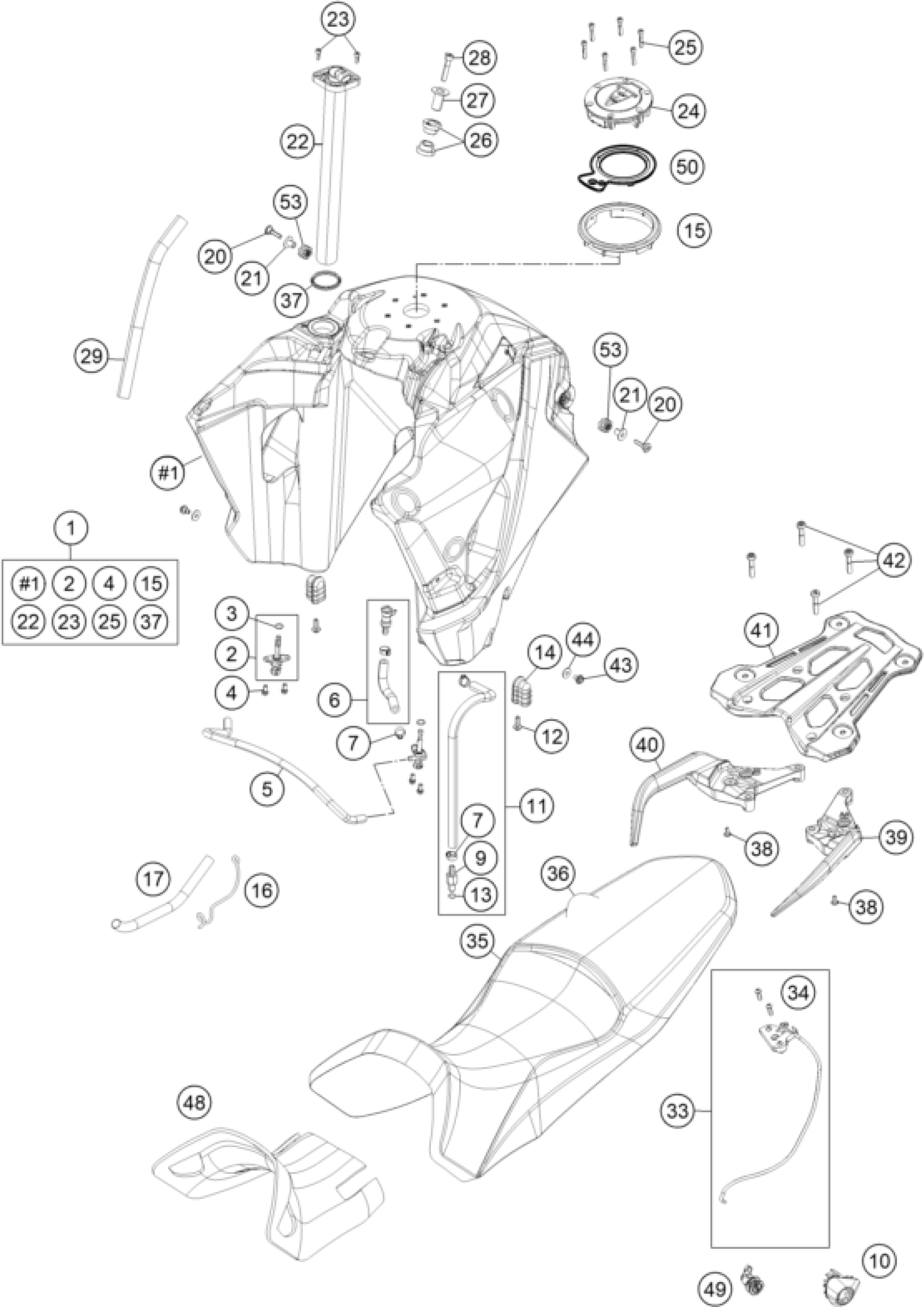

KTM 1090 ADVENTURE R 2017 TANK, SEAT Diagram

#

Description
Price

1

Fuel Tank Adventure cpl.

6070701304433

$1,684.96

2

Fuel cock cmpl.

58507003200

$26.55

3

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

4

HH collar screw M6x12 TX30

0025060126

$3.08

5

EXPANSION HOSE FUEL TANK

60307018000

$33.46

6

FUEL HOSE TANK/CONNECTOR

60307017000

$37.48

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

9

Plug CPC black 05

5850701030030

$43.28

10

SEAT LOCK COVER

60307053000

$11.12

11

FUEL HOSE 1 CPL.

60307016000

$50.11

12

HH collar screw M6x20 TX30

0024060206

$3.08

14

TANK RUBBER

60307020000

$24.40

15

TANK CAP RING

60307009000

$5.23

16

WIRE HOLDER FUEL HOSE

60307037000

$7.10

17

HEAT PROTECTION

60307016010

$10.46

20

SPECIAL SCREW M6X32.5 ISA 40

60307025000

$10.46

21

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

22

GAS LEVEL SENSOR

60307080000

$138.65

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

TANK CAP

60307008100

$458.33

25

AH SCREW DIN0912-M 5X25

0912050253

$1.49

26

collar bushing, front tank hol

61007065000

$7.85

27

collar bushing, bearing, outsi

61007060000

$9.90

28

AH collar screw DIN0912 M8x40

0912080403

$2.05

29

HOSE 5,4X9,4 NBR, METER

60007126001

$7.10

33

SEAT LOCK CPL.

60307050000

$34.68

34

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

35

SEAT R

60307140100

$289.56

36

SEAT COVERING

60307140050

$35.62

37

Gasket fuel lever sensor

60307080090

$50.67

38

Screw for expansion tank

69013099050

$4.11

39

GRIP L/S BLACK

6031200810030

$22.99

40

HAND GRIP R/S

6031200920030

$22.99

41

BAGGAGE CARRIER BRIDGE

6061201000030

$60.30

42

AH-COLLAR SCREW M8X40 ISA45

0035080406

$5.23

43

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

44

Washer DIN9021-A 6.4

0021060003

$2.05

48

HEAT PROTECTOR

60307040080

$66.94

49

LOCK CYLINDER SEAT LOCK

60307050020

$145.76

50

GASKET TANK CAP

60307008190

$7.85

53

rubber grommet, tank mounting

69007027000

$3.08

13

O-ring VITON f. plug CPC 0

58507012000

$6.26
