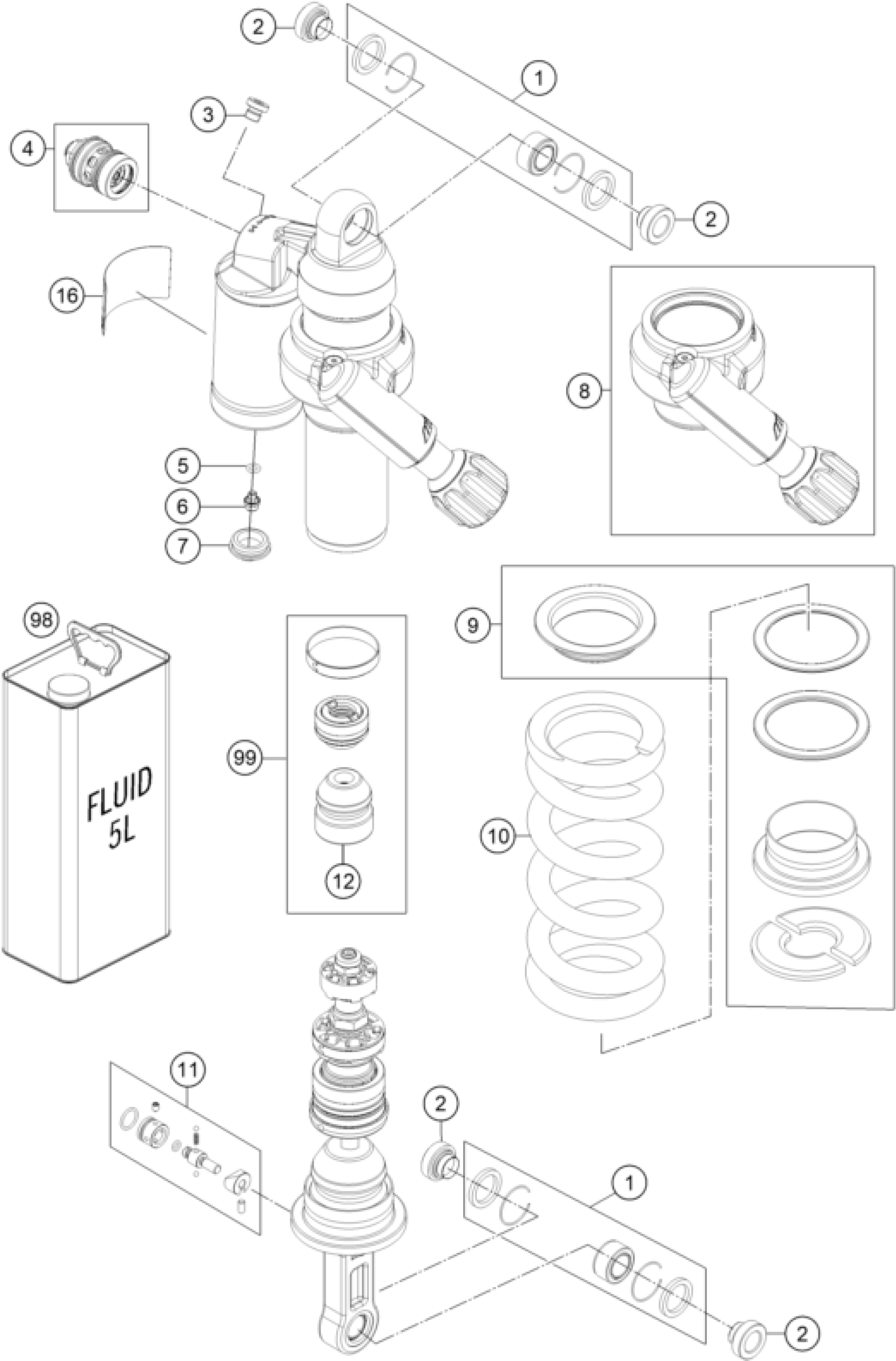

KTM 1090 ADVENTURE R 2017 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description

Price

1

Ball joint bearing kit top 12m

R12012

Unavailable

2

Bearing bush 14x15/23,5x14,45

46181307E

Unavailable

3

HS cylinder-head screw R1/8 l8

50180095

Unavailable

4

Compression cpl.

50180213S27

Unavailable

5

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

6

HS lock screw M5x6

36120151

Unavailable

7

Rubber cap do not open 22x5,5

46811208

Unavailable

8

POWER ADJUSTER CPL. WITH SCREW

15000M01S1

Unavailable

9

REPAIR KIT GASKET BOTTOM

R15015

Unavailable

10

Mainspring (59) 180-205 damper

91010358

Unavailable

11

TAP ADJ. REBOUND

46180522S1

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

12

Rubber pad 17x50x54

50181080

Unavailable

16

Sticker WP warning India 35x60

52000149

Unavailable

99

Repair kit ADV. R

RP10013

Unavailable
