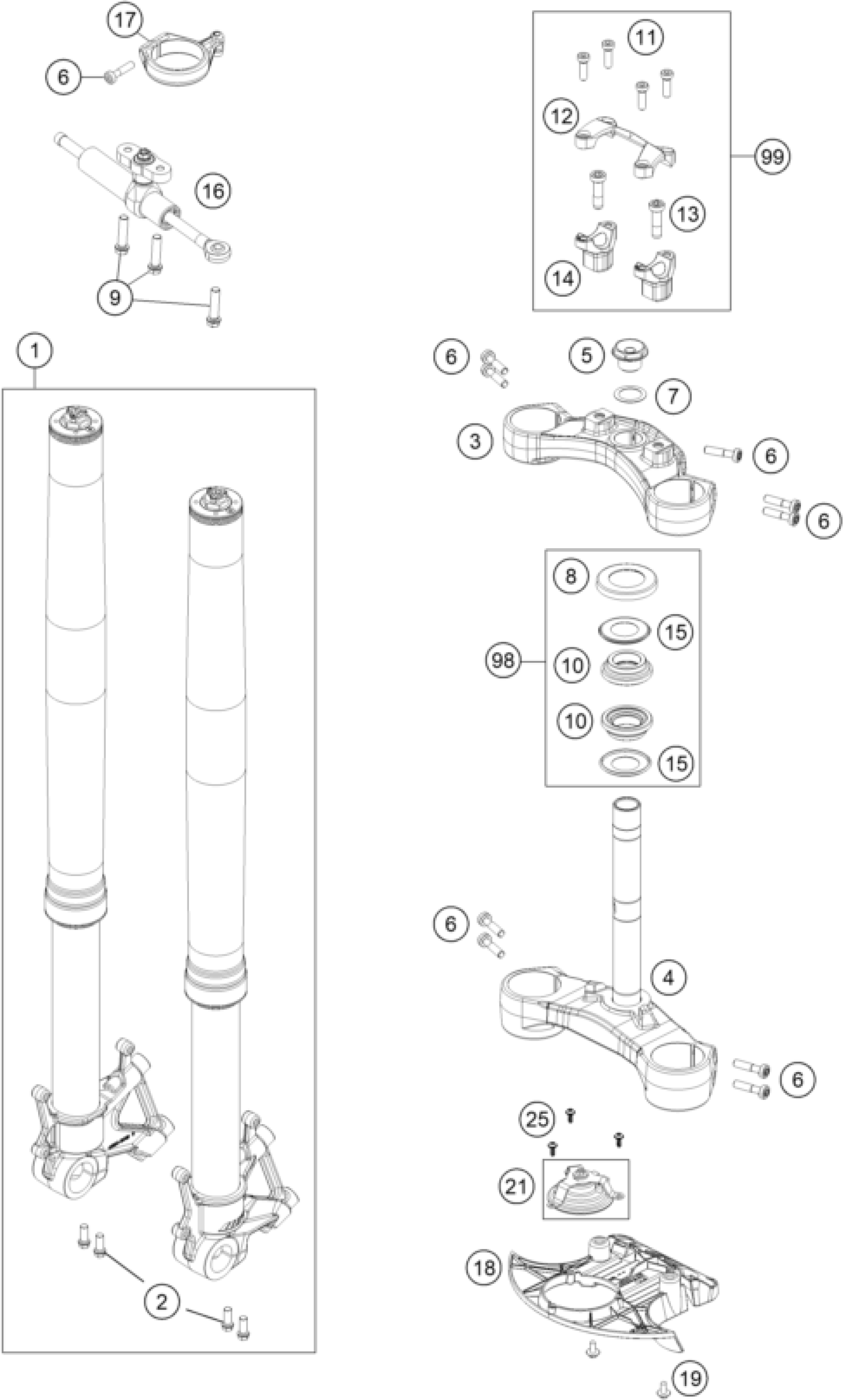

KTM 1090 ADVENTURE R 2017 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork Adventure-R 2017

14188Q2501

$2,876.61

2

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

3

Triple clamp

6070113403233S

$222.15

4

Triple clamp

6040103203233S

$331.45

5

STEERING HEAD SCREW 09

6900103600001

$16.73

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

8

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

10

STEERINGHEAD KPL.17

69001181000

$37.77

11

HH collar screw M8x25

0025080256

$2.05

12

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

$36.55

15

O-RING SUPPORT W. SEALING LIP

69001084000

$7.85

18

TRIPLECLAMP-FACEPLATE BELOW

60308024200

$16.54

19

SPECIAL SCREW M6X15X3

83008000015

$3.08

21

HORN

60311060100

$39.82

25

EJOT PT screw K50x12

0081050121

$2.05

98

Stearing head rep. Kit

69001181010

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

7

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

16

STEERING DAMPER CPL.

16181N53ES

$173.43

17

CLAMP STEERING DAMPER

6031200700033S

$56.93

9

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08
