Description

Price

1

Screw cap M51x1,5 cpl.

48600431E3

$120.98

2

Screw cap M51x1,5 cpl.

48600431E4

$101.93

3

O-ring 45x2 NBR70 siliconized

46810340

$1.49

4

Fork outer tube 49,13x600 dt54

48601174

$390.17

5

Mainspring (38,2) 65-555 fork

95010082

$110.49

6

Insert right cpl.

48601728S1

$459.92

7

Insert left cpl.

48601729S1

$459.92

8

REP. KIT SPACER

R14054

$17.85

9

GASKET KIT CPL.

R14040

$66.75

10

Guide bushing set fork 48mm

R14047

$25.70

11

AXLE CLAMP WITH INNER TUBE

48601305S1

$593.81

12

AXLE CLAMP WITH INNER TUBE

48601304S1

$593.81

13

AH SCREW M10X20 SET

00501020S1

$11.49

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

99

Fork repair kit 48mm offroad

R14063

Unavailable

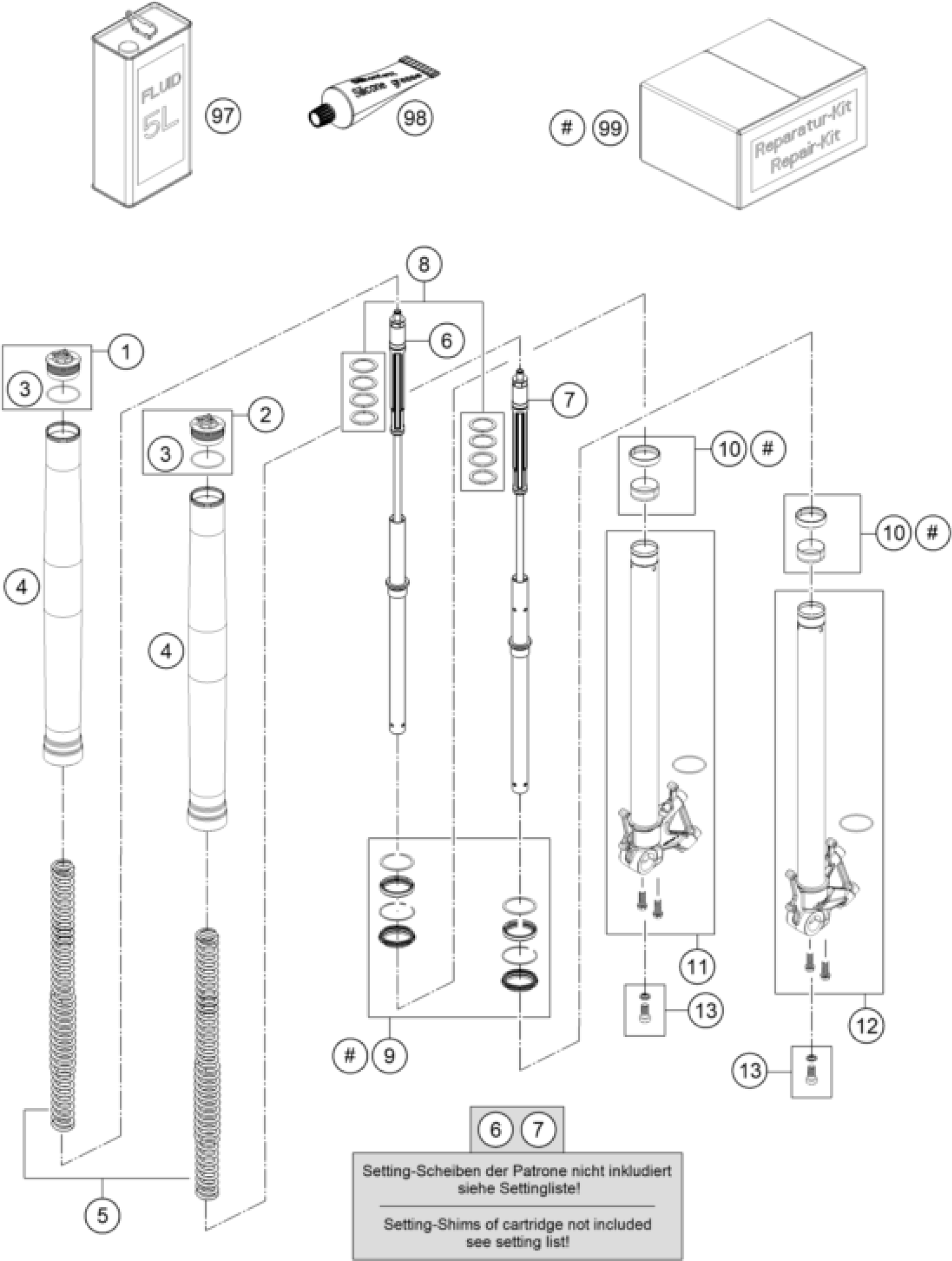

KTM 1090 ADVENTURE R 2017 FRONT FORK DISASSEMBLED Diagram

Screw cap M51x1,5 cpl.

Screw cap M51x1,5 cpl.

O-ring 45x2 NBR70 siliconized

Fork outer tube 49,13x600 dt54

Mainspring (38,2) 65-555 fork

Insert right cpl.

Insert left cpl.

REP. KIT SPACER

GASKET KIT CPL.

Guide bushing set fork 48mm

AXLE CLAMP WITH INNER TUBE

AXLE CLAMP WITH INNER TUBE

AH SCREW M10X20 SET

Fork Fluid Viscosity 4.0 5L

Fuchs grease IPR (250g)

Fork repair kit 48mm offroad
