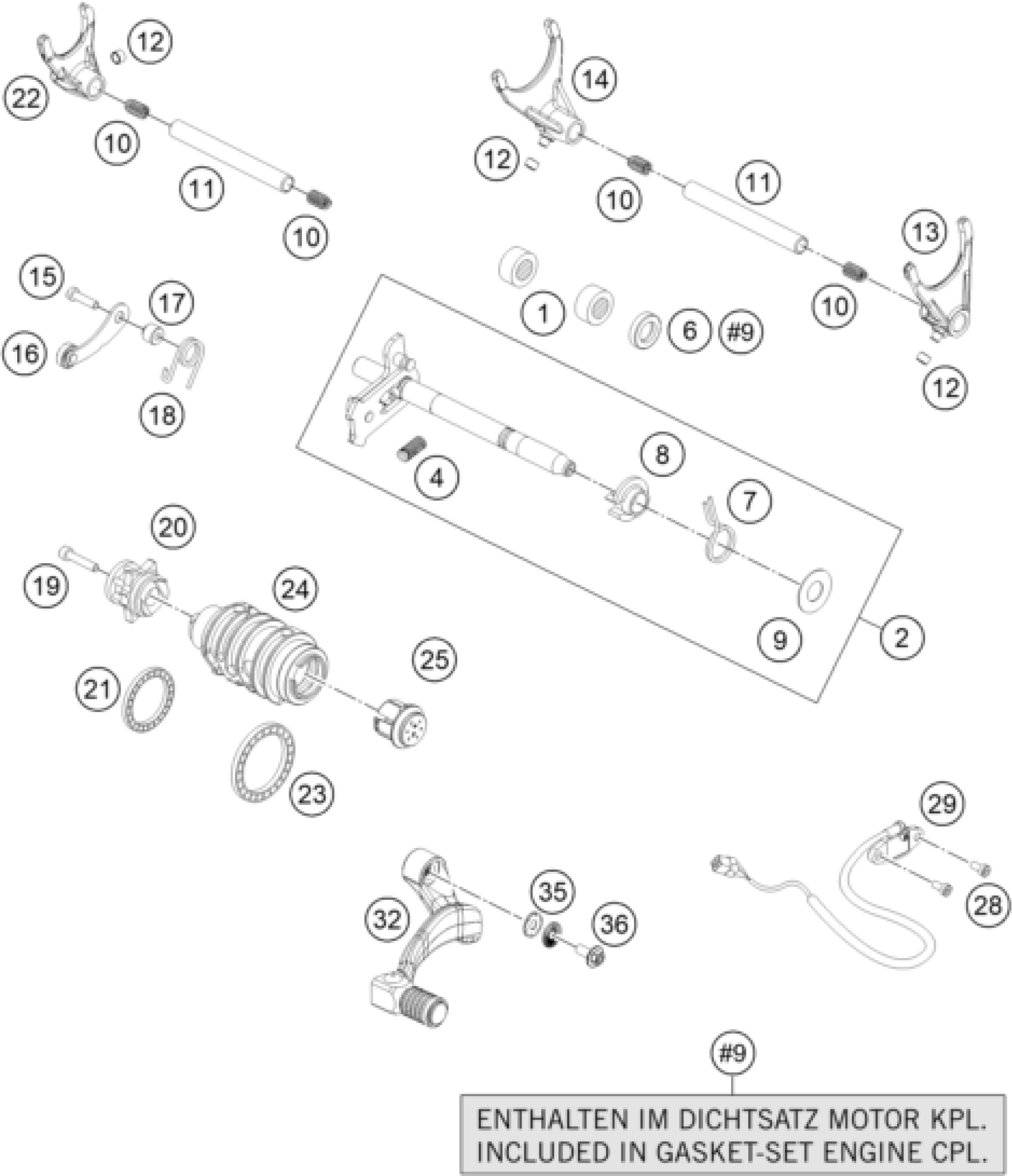

KTM 1090 ADVENTURE 2017 SHIFTING MECHANISM Diagram

#

Description
Price

1

needle sleeve HK 1412 14x20x12

54632095000

$7.00

2

SHIFT SHAFT CPL.

61234005333

$63.35

4

TENSIONING SPRING 0,8MM

56534113100

$1.49

6

radial shaft seal 14x24x6 B

0760142460

$9.25

7

RETURNSPRING 2MM

61234114000

Unavailable

8

SPRING GUIDE

54634120000

Unavailable

9

STOP DISK 14X30X1

54634150000

Unavailable

10

PRESSURE SPRING 0,9MM

58038023200

$4.11

11

SHIFT RAIL 11,8X105MM

59034020000

$13.36

12

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

13

SHIFT FORK 2-3 GEAR

61234002100

$51.60

14

SHIFTING FORK 08

61234001000

$48.89

15

HH collar screw M6x20 TX30

0024060206

$3.08

16

LOCKING LEVER CPL.

61434024000

$41.60

17

SLEEVE FOR LOCKING LEVER 07

75034052000

$4.11

18

SPRING - LOCKING LEVER

61234023000

$6.07

19

AH SCREW DIN0912-M 6X30 12.9

0912060309

$1.49

20

SHIFT LOCATING DRUM CPL.

61434015000

$30.47

21

BALL BEARING 61805 C3

0625618050

$43.94

22

SHIFT FORK 5-6 GEAR

61234003200

$52.73

23

GROOVED BALL BEARING 6808 JRC3

0625068080

$32.16

24

SHIFTING DRUM 6G

60434012001

$105.18

25

Magnet bracket cmpl.

79234012020

$58.71

28

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

$2.05

29

GEAR POSITION SENSOR

60411023000

$173.62

32

SHIFTING LEVER CPL.

6003403104433S

$143.14

35

PAIR NORDLOCK WASHER M6

50233041500

$4.11

36

HH collar screw M6x15 TX30

0024060156S

$2.05
