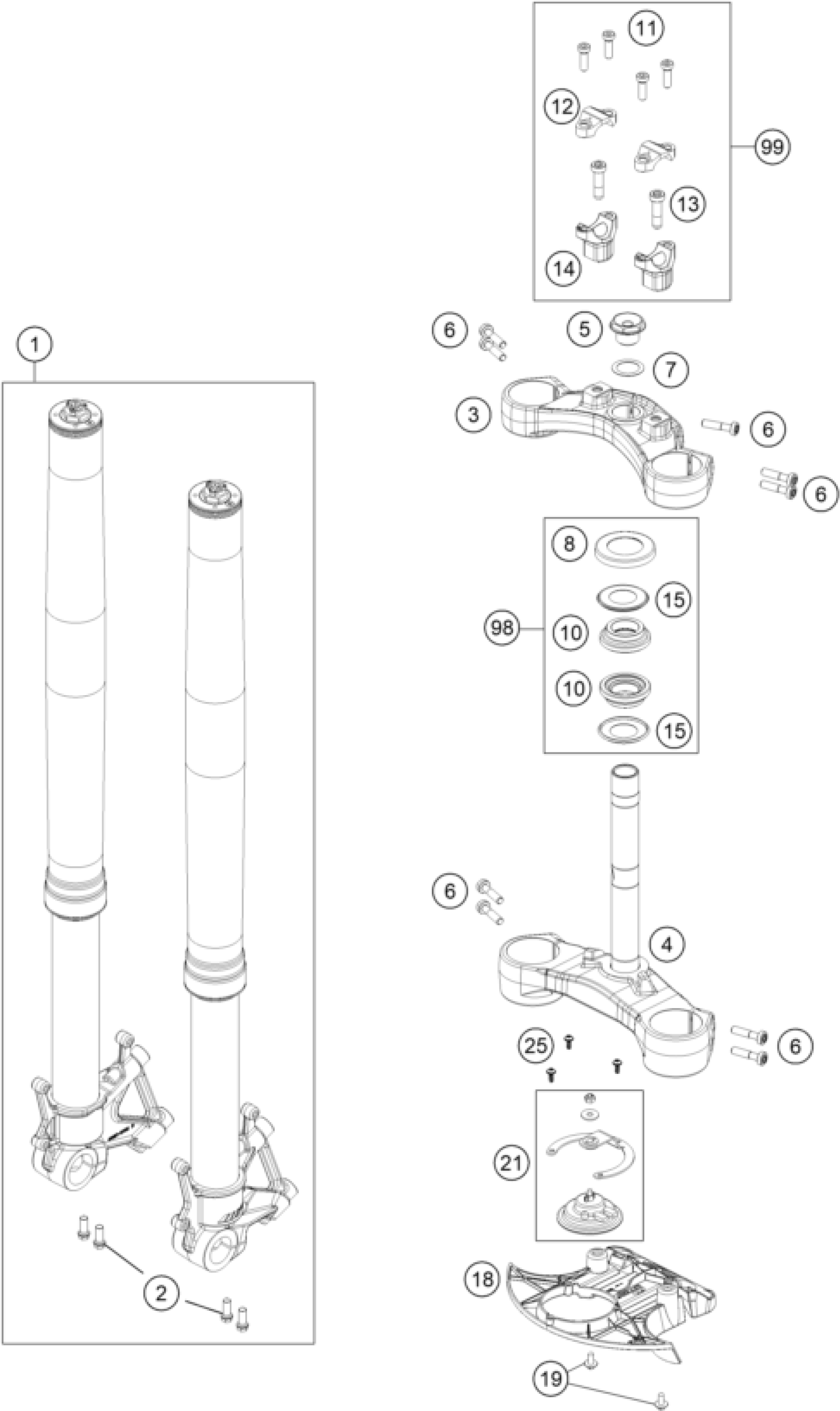

KTM 1090 ADVENTURE 2017 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

3

Triple clamp

6070113403233S

Unavailable

4

Triple clamp

6080113203233S

Unavailable

5

STEERING HEAD SCREW 09

6900103600001

Unavailable

8

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

10

STEERINGHEAD KPL.17

69001181000

Unavailable

11

HH collar screw M8x25

0025080256

Unavailable

12

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

Unavailable

15

O-RING SUPPORT W. SEALING LIP

69001084000

Unavailable

18

TRIPLECLAMP-FACEPLATE BELOW

60308024200

Unavailable

19

SPECIAL SCREW M6X15X3

83008000015

Unavailable

21

HORN

60311060100

Unavailable

25

EJOT PT screw K50x12

0081050121

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

1

FRONT FORK

05186O0801

Unavailable

2

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

98

Stearing head rep. Kit

69001181010

Unavailable

7

thrust wash DIN0988-25x35x0,5

0988253505

Unavailable
