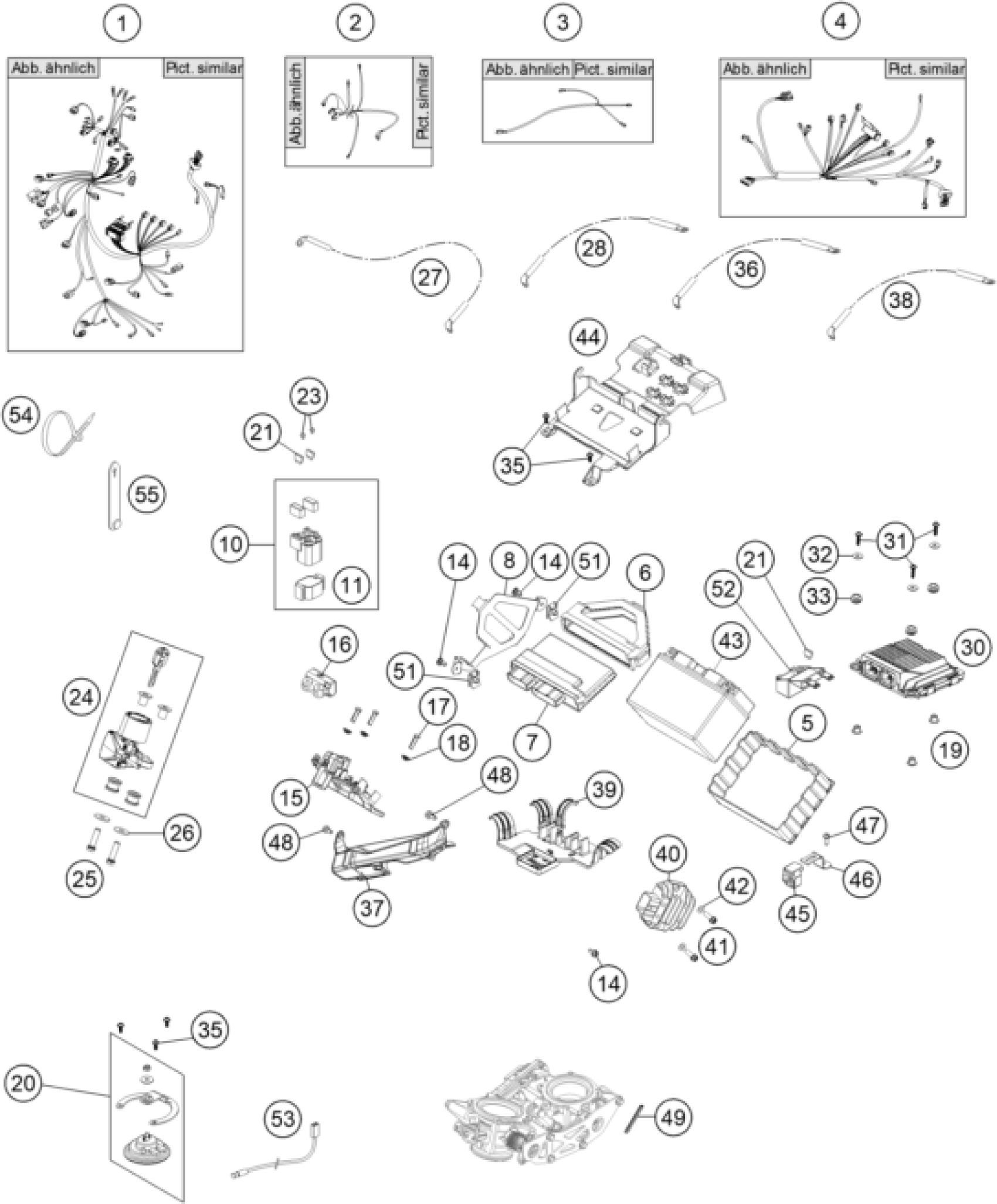

KTM 1090 ADVENTURE 2017 WIRING HARNESS Diagram

#

Description
Price

1

MAIN HARNESS

60811075000

$737.71

2

WIRING HARNESS ENGINE

60411085100

$425.14

3

WIRING HARNESS HEAD LIGHT

60311079000

$49.83

4

REAR WIRING HARNESS

60311076000

$44.12

10

Starter reley 12V 99

58211058000

$72.64

14

special screw M5x12

69008021160

$4.11

15

SUPPORT BRACKET FRONT

60311048100

$5.23

16

ROLLOVER SENSOR 05

61041088000

$67.69

21

FUSE 40 A

58011109140

Unavailable

21

Plug-in fuse, big 30A

58011109130

Unavailable

5

Battery Housing

60311053050

$13.74

6

ECU RUBBER BRACKET

60341031050

$17.76

7

Control unit EFI

61341031300

$625.23

8

BRACKET ELECTRIC

60311057050

$41.97

17

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

18

COLLAR BUSHING 6,5X8,8X12,5X10

60611046000

$5.70

19

collar bushing 6.1x9.2x15x8.5x

69014015000

$5.23

20

HORN

60311060100

$39.82

21

Plug-in fuse, big 10A

58011109110

Unavailable

23

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

24

IGNITION LOCK

60311066100

$589.14

25

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

26

WASHER DIN9021-A 8,4

0021080003

$1.49

32

washer DIN 9021 A - 5.3

0021050003

$1.49

33

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

35

EJOT PT screw K50x12

0081050121

$2.05

36

GROUND CABLE

60311097000

$28.04

37

CABLE CHANNEL R/S

60311047000

$8.13

44

BATTERIE COVER

60308017000

$19.81

45

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

46

BRACKET PRESSURE SENSOR

60311040100

$11.30

47

EJOT PT SCREW K50X16 1451

0081050161

$1.49

49

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

52

RUBBERCOVER F.LOCKHOLDER

58411087050

$11.49

54

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

54

Cable tie 200/4.6mm black

44011076200

Unavailable

54

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

55

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

55

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

21

FUSE 25 A

58011109125

Unavailable

21

FUSE 15 A

58011109115

Unavailable

27

STARTER CABLE

60311059000

$29.82

28

GROUND CABLE

60311098000

$22.81

30

MOTORCYCLE CONTROL UNIT 2.1

60311033200

$838.03

31

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

38

BATTERIE CABLE

60311059050

$20.75

39

Plug board rear

60311049200

$6.35

40

VOLTAGE REGULATOR

60311034000

$177.55

41

HH collar screw M6x20 TX30

0025060206

$3.08

43

BATTERY 12V/11AH 03

60011053000

$366.89

48

COLLAR SCREW M6X12 TX

0023060123

$2.05

53

Temperatur sensor

61111018100

$31.59

55

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

42

PLASTIC WASHER 03

60007020040

$1.49

51

RANGE CHANGE METAL NUT M5

54603048200

$5.23

11

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23
