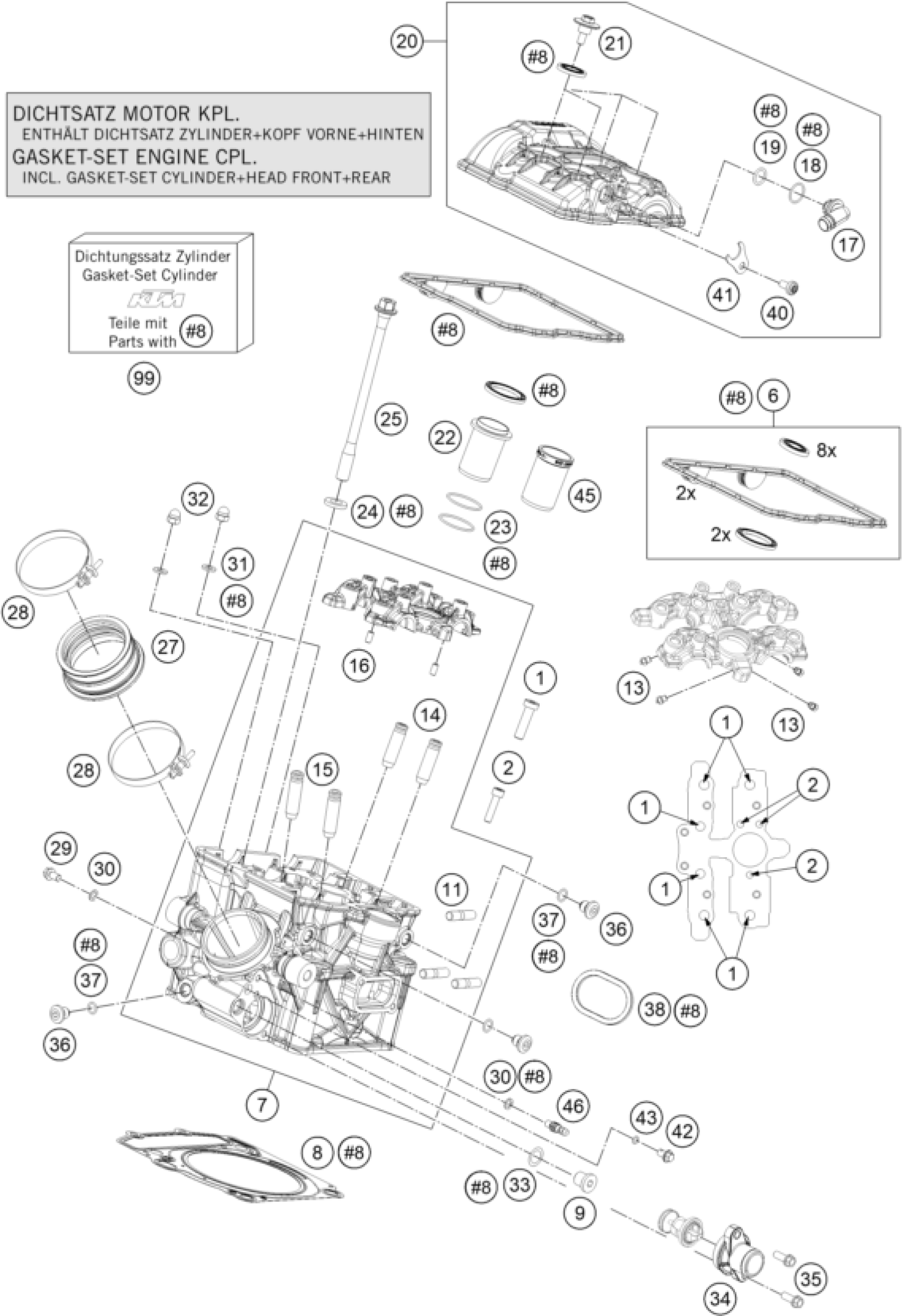

KTM 1090 ADVENTURE 2017 CYLINDER HEAD REAR Diagram

#

Description
Price

1

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.49

2

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.49

6

VALVE COVER GASKET SET

61236099100

$55.25

7

CYLINDER HEAD REAR

60636120000

$891.89

8

CYLINDER HEAD GASKET 08

61230036000

$27.76

9

threaded plug DIN 908 M12x1.5

0908120153

$4.11

11

STUD M 8X16 10.9

0835080165

$3.08

13

oil jet 50 M5

60030063050

$9.44

14

VALVE GUIDE EXHAUST 08

61236026001

$25.70

15

VALVE GIUDE INTAKE 6MM

61236025001

$22.43

16

needle roller DIN 5402 5x9.8

0402050980

$1.49

17

CONNECTING ANGLE

61236082100

$5.23

18

O-RING 15,00X1,50 VITON

0770150151

$3.08

19

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

20

VALVE COVER REAR

6123615214433

$68.62

21

collar screw M 6 WS=10 03

60036052020

$3.08

22

SPARK PLUG SHAFT

61336075100

$18.97

23

O-RING 29,87X1,78 VITON

0770298178

$2.05

24

WASHER 11,1X20X3 08

61236079050

$5.51

25

CYLINDER HEAD SCREW 08

61236079000

$15.79

27

INTAKE BOOT

61336044000

$39.64

28

HOSE CLAMP GEMI 75

61336048000

$14.30

29

HH collar screw M6x10 TX30

0025060106

$3.08

30

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

31

WASHER DIN0125-A 6,4

0125060003

$1.49

32

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

33

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

34

WATER CONNECTION CPL.

61235019100

$22.43

35

HH collar screw M6x20 TX30

0025060206

$3.08

36

SCREW PLUG

77336056095

$7.00

37

O-RING 9x1,5 V80 SH

07700900151

$2.05

38

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

40

EJOT ALtracs 60x12 TX30

0080060123

$1.49

41

connecting angle retaining pla

61236082150

$5.23

42

VENT SCREW M6X10 CPL.

59036006090

$4.11

43

O-RING 5,0X1,2 NBR 70

0770050012

$1.49

45

INSERT SPARK-PLUG SHAFT

61336074100

$22.71

99

GASKET KIT CYLINDER+HEAD F+R

61230097100

$262.17

46

VACUUM CONNECTION M6/0.75MM

60036023200

$10.46
