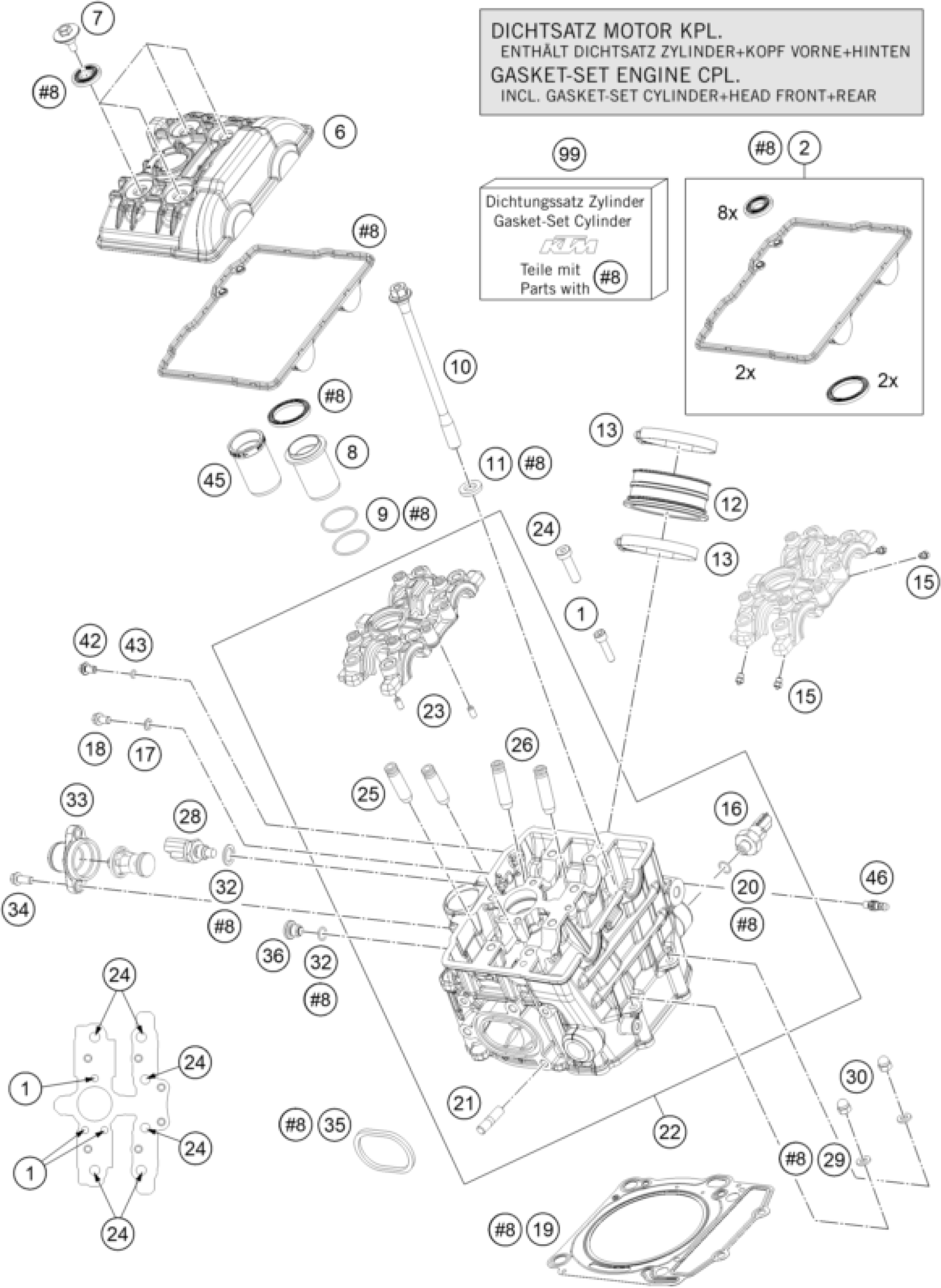

KTM 1090 ADVENTURE 2017 CYLINDER HEAD FRONT Diagram

#

Description
Price

1

AH SCREW DIN0912-M 6X25 10.9

0912060255

Unavailable

2

VALVE COVER GASKET SET

61236099100

Unavailable

6

VALVE COVER FRONT 09

6123605210033

Unavailable

7

collar screw M 6 WS=10 03

60036052020

Unavailable

8

SPARK PLUG SHAFT

61336075100

Unavailable

9

O-RING 29,87X1,78 VITON

0770298178

Unavailable

10

CYLINDER HEAD SCREW 08

61236079000

Unavailable

11

WASHER 11,1X20X3 08

61236079050

Unavailable

12

INTAKE BOOT

61336044000

Unavailable

13

HOSE CLAMP GEMI 75

61336048000

Unavailable

15

oil jet 50 M5

60030063050

Unavailable

16

oil pressure switch ''BITRON''

61238091000

Unavailable

17

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

18

HH collar screw M6x10 TX30

0025060106

Unavailable

19

CYLINDER HEAD GASKET 08

61230036000

Unavailable

20

O-RING 8,00X1,5 NBR 70

0770080015

Unavailable

21

STUD M 8X16 10.9

0835080165

Unavailable

22

CYLINDER HEAD FRONT

60636020000

Unavailable

23

needle roller DIN 5402 5x9.8

0402050980

Unavailable

24

AH SCREW DIN7984-M 8X30 10.9

0984080305

Unavailable

25

VALVE GUIDE EXHAUST 08

61236026001

Unavailable

26

VALVE GIUDE INTAKE 6MM

61236025001

Unavailable

28

TEMPERAT.-SENSOR WATER LC8 02

60011252000

Unavailable

29

WASHER DIN0125-A 6,4

0125060003

Unavailable

30

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

31

o-ring 10.00x2.00 silicone

0770100020

Unavailable

32

O-RING 9x1,5 V80 SH

07700900151

Unavailable

33

WATER CONNECTION CPL.

61235019100

Unavailable

34

HH collar screw M6x20 TX30

0025060206

Unavailable

35

EXHAUST PIPE FLANGE GASKET

69005005100

Unavailable

36

SCREW PLUG

77336056095

Unavailable

42

VENT SCREW M6X10 CPL.

59036006090

Unavailable

43

O-RING 5,0X1,2 NBR 70

0770050012

Unavailable

45

INSERT SPARK-PLUG SHAFT

61336074100

Unavailable

99

GASKET KIT CYLINDER+HEAD F+R

61230097100

Unavailable

46

VACUUM CONNECTION M6/0.75MM

60036023200

Unavailable
