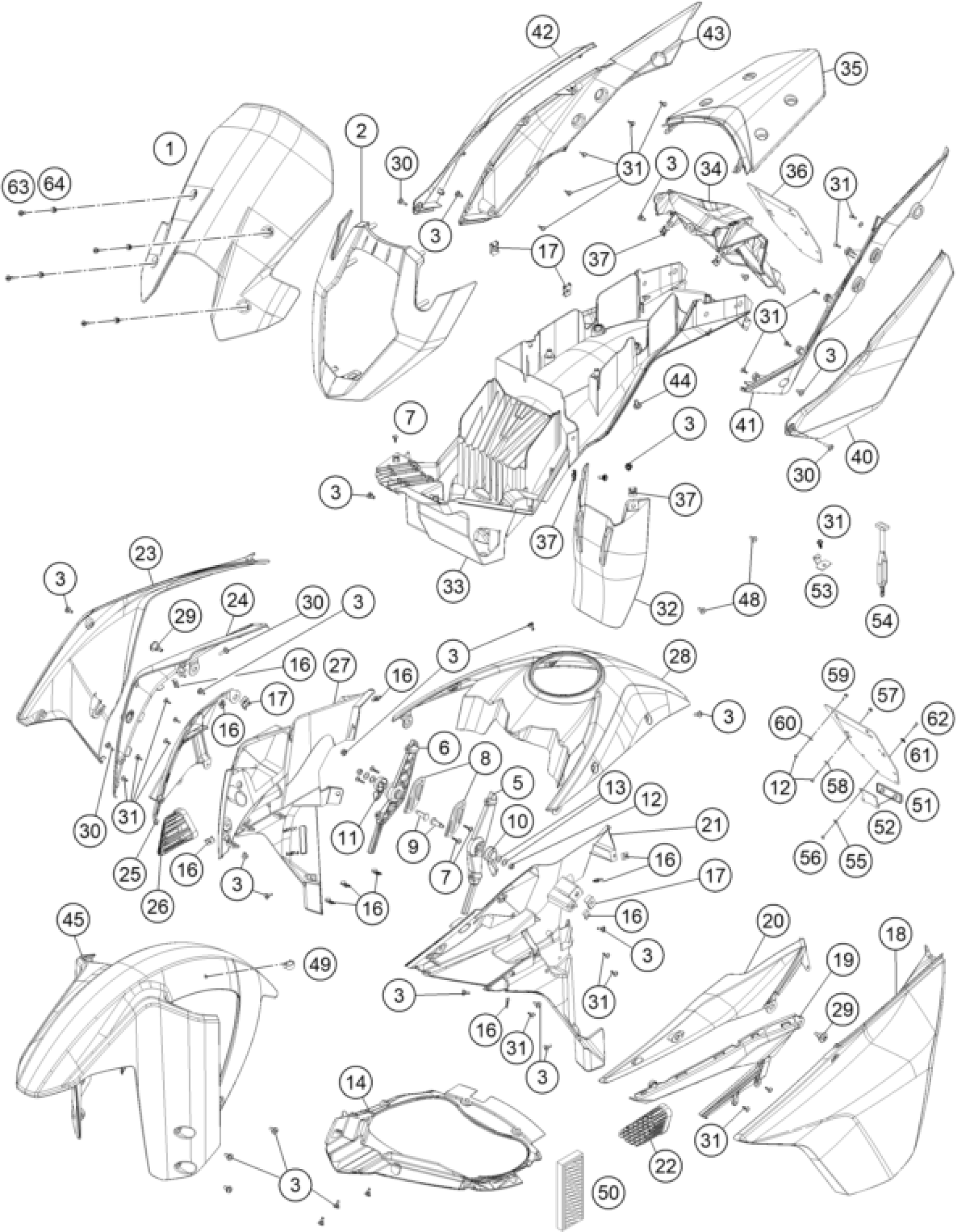

KTM 1050 ADVENTURE ABS 2016 MASK, FENDERS Diagram

#

Description
Price

1

WINDSCREEN EU

60308008100

Unavailable

2

HEADLIGHT MASK

6030800100033

$29.49

3

special screw M5x12

69008021160

$4.11

5

WIND SHIELD SUPPORT L/S

60308008050

$19.16

6

WIND SHIELD SUPPORT R/S

60308008051

$22.43

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

SLIDING SHEET WIND SHIELD

60308008055

$6.63

9

TENSION BOLT

60308008056

$11.02

10

TENSION LEVER L/S

60308008052

$6.35

11

TENSION LEVER R/S

60308008053

$6.35

12

Self lock. nut DIN985-M6-A2

0985060003

$2.05

13

BELLEVILLE SPRING 8,2X15X0,8

0093081508

$1.49

14

COCKPIT COVER LOWER SIDE

60308005000

$19.37

16

clip nut M5

69008021080

$3.08

17

clip nut M6

54603048100

$4.11

18

SPOILER LEFT BLACK

6030805000030

$48.89

19

AIR INTAKE L/S

6030800205033

$16.35

20

MASK SPOILER L/S

60308002000B1

Unavailable

21

INNER LINING LEFT

60308025100

$28.72

22

COVERING GRID AIR INTAKE L/S

60308021050

$12.15

23

SPOILER RIGHT BLACK

6030805100030

$49.92

24

MASK SPOILER R/S

60308003000B1

Unavailable

25

AIR INTAKE R/S

6030800305033

$17.10

26

COVERING GRID AIR INTAKE RIGHT

60308031050

$11.12

27

INNER LINING RIGHT

60308026100

$28.72

28

COVER FUEL TANK ORANGE

6030803000004

Unavailable

29

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

30

special screw M5x17

69008021060

$3.08

31

EJOT PT screw K50x12

0081050121

$2.05

32

SPLASH PROTECTION

60304050000

$14.58

33

REAR END LOWER PART

60308019100

$57.96

34

NUMBER PLATE SUPPORT

60308015000

$18.97

36

license plate mouning plate

60012081200

$8.41

37

RANGE CHANGE METAL NUT M5

54603048200

$5.23

44

SPECIAL SCREW M6X15X3

83008000015

$3.08

35

REAR FENDER

6030801300033

$13.46

40

SIDE COVER LEFT BLACK

6030804100030

Unavailable

41

REAR SIDE COVER LEFT

6030804300033

$25.89

42

SIDE COVER RIGHT BLACK

6030804200030

Unavailable

43

REAR SIDE COVER RIGHT

6030804400033

$25.89

45

FRONTFENDER

6030811000033

$63.76

48

HH collar screw M6x12 TX30

0025060126

$3.08

49

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

50

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

51

REFLECTOR RED

58412080000

$5.23

52

BRACKET FOR REFLECTOR

58412080050

$6.07

53

BRACKET FOR VEHICLE TOOLS

60312062000

$21.78

54

RUBBER L=145MM

50303018000

$6.44

55

WASHER DIN0125-A 5,3

0125050003

$1.49

56

Self locking nut DIN 985 M5

0985050003

$2.05

57

HH collar screw M6x15 TX30

0024060156

$3.08

58

Washer DIN9021-A 6.4

0021060003

$2.05

59

HH collar screw M6x20 TX30

0024060206

$3.08

60

WASHER DIN0125-A 6,4

0125060003

$1.49

61

WASHER 6MM

40006006000

$1.49

62

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

63

Special screw M5x14

60708008071

$2.05

64

rubber bush windshield fixatio

60708008070

$2.05
