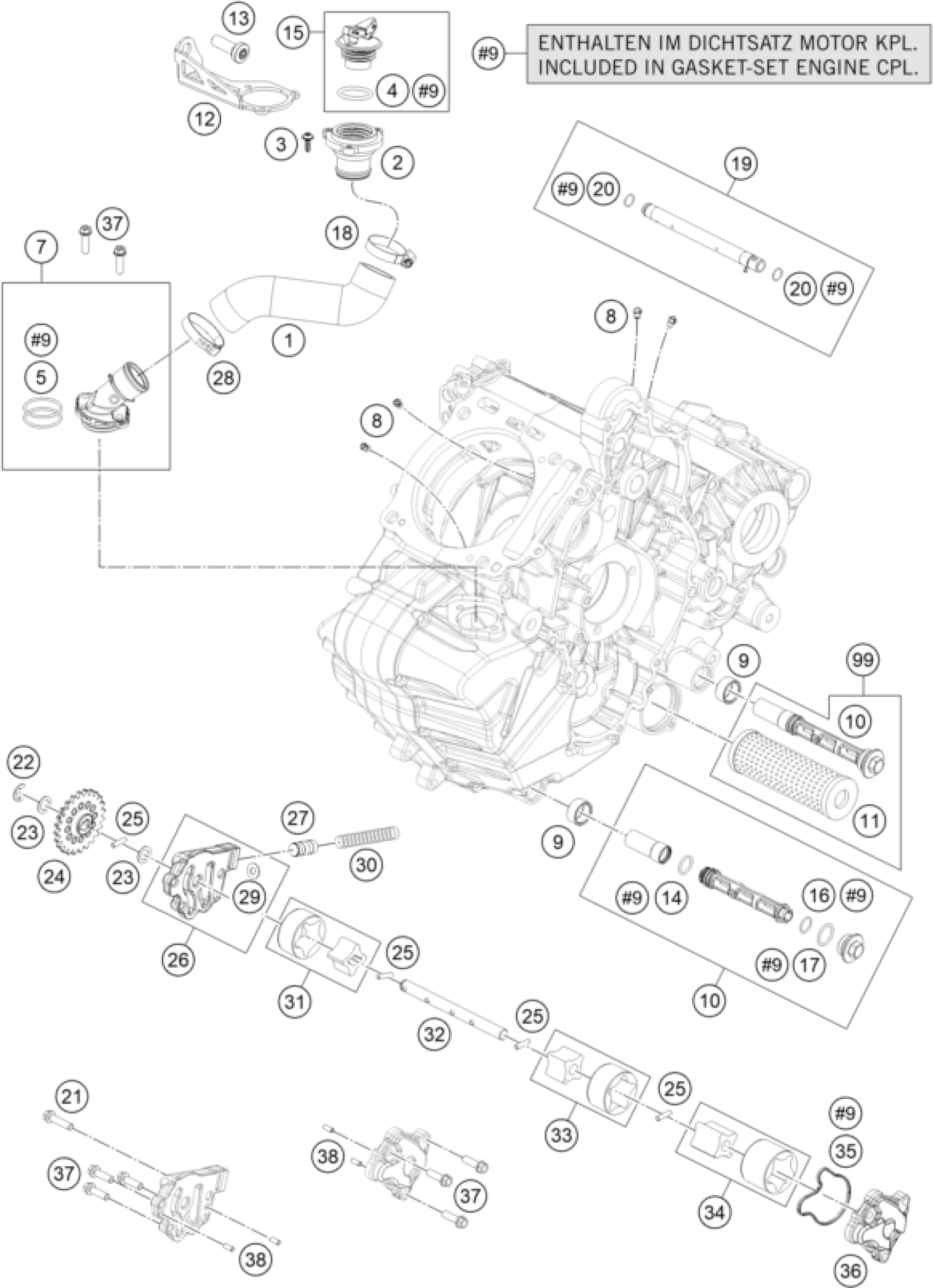

KTM 1050 ADVENTURE ABS 2016 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL INFILLING HOSE

60307026100

Unavailable

2

THREADED ADAPTER

60307129000

Unavailable

3

EJOT PT screw K50x14

0081050141

Unavailable

4

O-RING 25,00X3,20 NBR 70

0770250032

Unavailable

5

O-RING 30X2,0 FPM

0770300020

Unavailable

7

OIL FILLING FLANGE CPL.

60638085000

Unavailable

8

oil jet 70 M5

60030063070

Unavailable

9

OIL SCREEN BUSHING 08

61238017000

Unavailable

10

oil screen cpl.

61238021100

Unavailable

11

OIL FILTER

61338015100

Unavailable

12

OIL INFILLING ADAPTER BRACKET

60312967040

Unavailable

13

AH collar screw M10x30 ISA45

0035100309S

Unavailable

14

O-RING 14,00X2,00

0770140200

Unavailable

15

OIL PLUG CPL.

60338085100

Unavailable

16

O-RING 12,5X1,5 NBR

0770125015

Unavailable

17

O-RING 17,00X2,00

0770170200

Unavailable

18

Hose clamp 25-40 SGT 4

10001120000

Unavailable

19

OIL INJECTION TUBE CPL. 08

61230065000

Unavailable

20

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

21

HH collar screw M6x25 TX30

0025060256

Unavailable

22

retaining washer DIN 6799 - 8

0799080000

Unavailable

23

washer 10x16x0.5

60038007010

Unavailable

24

oil pump gear 24 teeth

60038001224

Unavailable

25

needle roller NRB 4x15.8 G2

0402041580

Unavailable

26

PRESSURE PUMP COVER CPL.

61238009144

Unavailable

27

CONTROL PISTON LC8 03

60038028000

Unavailable

28

VARIABLE ONE-EAR CLAMP 37,6MM

00050376706

Unavailable

29

shim

50337073000

Unavailable

30

CONTROL SPRING

61238026000

Unavailable

31

ROTOR-SET 19MM 03

60038009000

Unavailable

32

OIL PUMP SHAFT 08

61238002000

Unavailable

33

ROTOR SET 22MM

61238011100

Unavailable

34

eaton pump set 30mm

61238010100

Unavailable

35

MOLDED RING SUCTION PUMP COVER

61238008150

Unavailable

36

SUCTION PUMP COVER

61238008200

Unavailable

37

HH collar screw M6x20 TX30

0025060206

Unavailable

38

needle roller DIN 5402 5x9.8

0402050980

Unavailable

99

OILFILTER SERVICE KIT

00050000068

Unavailable
