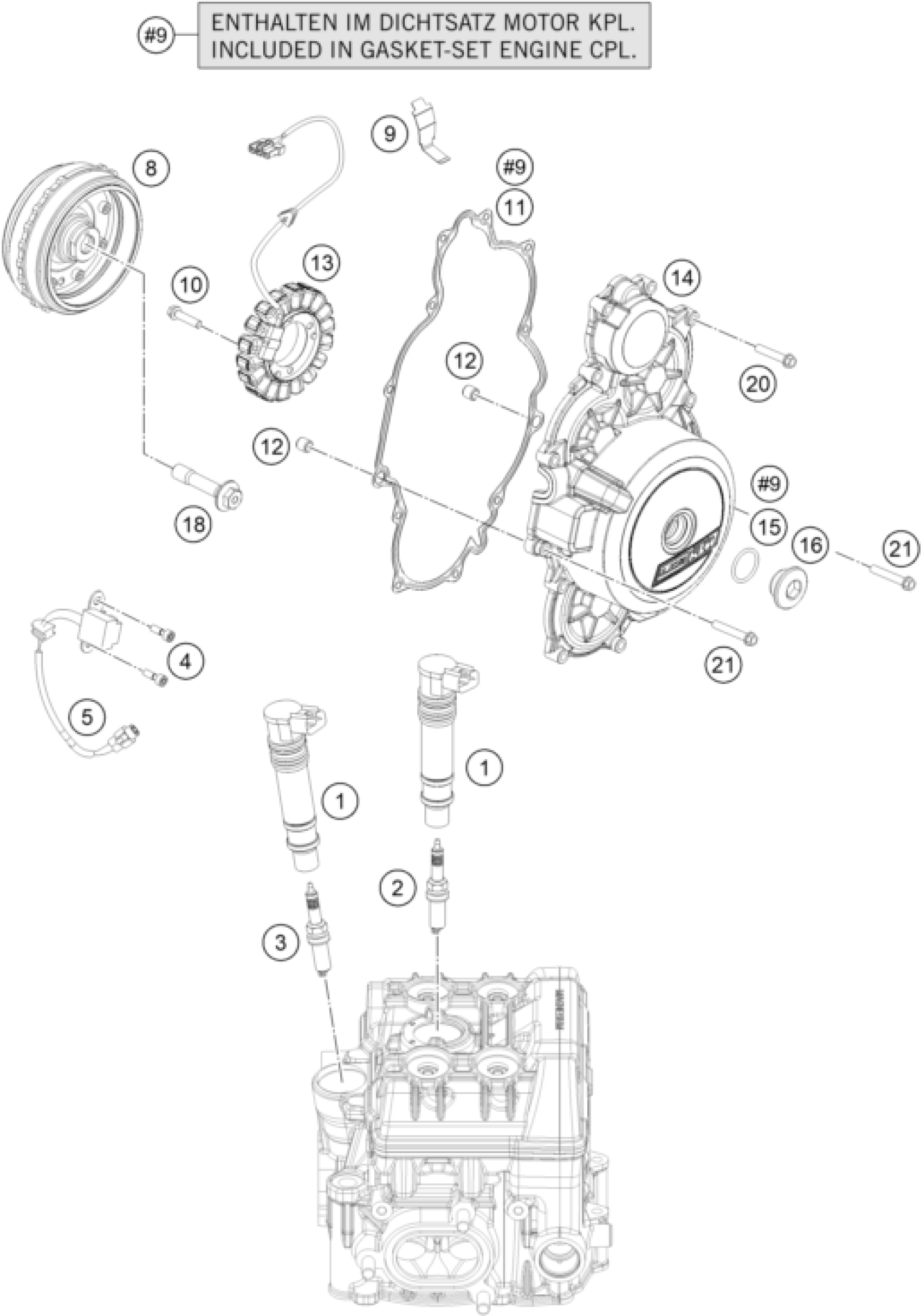

KTM 1050 ADVENTURE ABS 2016 IGNITION SYSTEM Diagram

#

Description
Price

1

STICK COIL

76039006000

$97.14

2

SPARK PLUG M12X1.25

60439093000

$27.85

3

SPARK PLUG

60439094000

$29.91

4

SPECIAL SCREW M5X16

60339035000

$4.11

5

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

8

ROTOR CPL.

60439005000

$663.47

9

generator line bracket

60039040020

$3.08

10

HH collar screw M6x25 TX30

0025060256

$3.08

11

GASKET GENERATORCOVER

61230040100

$27.95

12

DOWEL 9,8 X 7 X 10

49030090000

$2.05

13

STATOR

60339004000

$225.61

14

IGNITION COVER WITH BEARINGS

6023010214441

$188.96

15

o-ring 24.00x2.50 Viton

07700240251

$3.08

16

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

18

special screw M12x1.5 WS15

60339003000

$19.63

20

HH collar screw M6x30 TX30

0025060306

$3.08

21

HH collar screw M6x35 TX30

0025060356

$3.08
