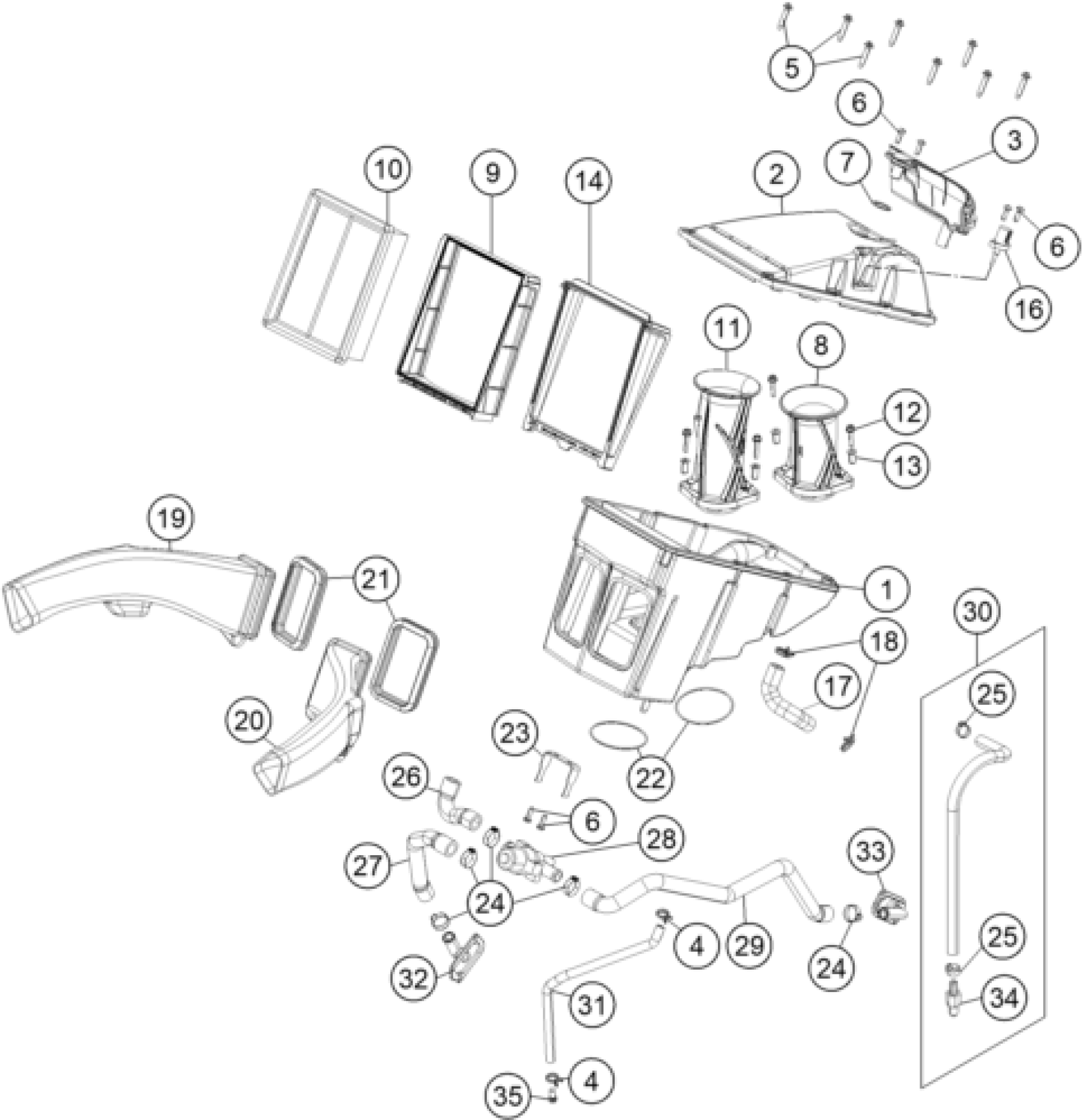

KTM 1050 ADVENTURE ABS 2016 AIR FILTER Diagram

#

Description
Price

1

AIR FILTER HOUSING LOWER PART

60306001200

$42.16

2

AIR FILTER BOX COVER

60306002000

$43.00

3

OIL SEPARATOR

60330088100

$37.67

4

CLAMP YDNAC 10128 12MM

58031005000

$3.08

5

Special screw K60X30 WS=6

0017060305

$2.05

6

EJOT PT SCREW K50X16 1451

0081050161

$1.49

7

O-RING 21,00X2,00 NBR70

0770021020

$2.05

8

INTAKE FUNNEL REAR

60641140000

$14.86

9

FILTERCLAMPING FRAME

60406016000

$6.63

10

Air filter

60706015000

$10.84

11

INTAKE FUNNEL FRONT

60641040000

$14.86

12

HH collar screw M5x25 TX30

0025050256S

$1.49

13

Bushing intake funnel

60306042010

$4.11

14

FILTERCLAMPING LINER

60406017000

$7.28

16

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

17

OIL SEPARATOR FOAM HOSE

60330088030

$9.53

18

CLAMP YDNAC 10173 (19MM)

60306082000

$2.05

19

INTAKE DUCT R/S

60406040000

$23.37

20

INTAKE DUCT L/S

60406041000

$23.37

21

GASKET INTAKE DUCT

60306040050

$6.63

22

O-RING 66X2,5 FKM

0770066025

$6.35

23

RETAINING BRACKET SLS

61305031000

$22.71

24

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

25

Variable one-ear clamp 15.7mm

00050157706

$5.23

26

SAS HOSE - AIRBOX

61305035023

$16.54

27

SAS HOSE CYLINDER FRONT

61305035021

$19.72

28

CONTROL VALVE SAS 05

61005026000

$132.76

29

SAS HOSE CYLINDER REAR

61305035022

$32.25

30

FUEL HOSE 1 CPL.

60307016000

$50.11

31

HOSE NBR 7X11 PER METER

60015019001

$7.66

32

SAS flange

61205122000

$13.36

33

SAS-FLANGE

61205032000

$18.97

34

Plug CPC black 05

5850701030030

$43.28

35

HH collar screw M8x12 TX40

0025080126

$3.08
