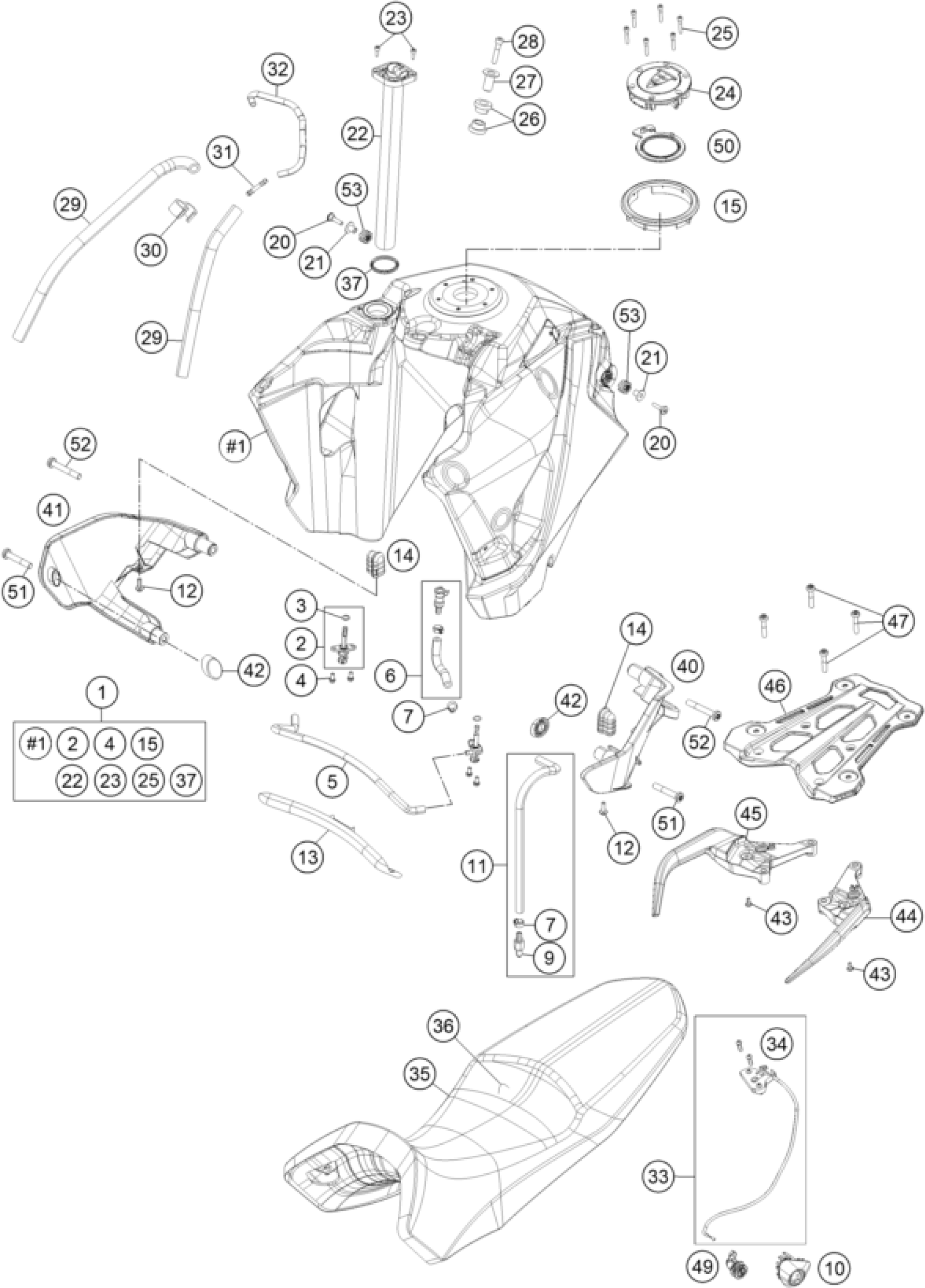

KTM 1050 ADVENTURE ABS 2015 TANK, SEAT Diagram

FUEL TANK ADV. CPL.

6060701314430

Unavailable

Fuel cock cmpl.

58507003200

$26.55

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

HH collar screw M6x12 TX30

0025060126

$3.08

FUEL HOSE 6,4X3,2 L=510MM

60007416510

$21.12

FUEL HOSE TANK/CONNECTOR

60307017000

$37.48

Variable one-ear clamp 15.7mm

00050157706

$5.23

Plug CPC black 05

5850701030030

$43.28

SEAT LOCK COVER

60307053000

$11.12

FUEL HOSE 1 CPL.

60307016000

$50.11

HH collar screw M6x20 TX30

0024060206

$3.08

BRACKET FUEL HOSE

60307070000

$15.79

TANK RUBBER

60307020000

$24.40

TANK CAP RING

60307009000

$5.23

SPECIAL SCREW M6X32.5 ISA 40

60307025000

$10.46

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

GAS LEVEL SENSOR

60307080000

$138.65

AH collar screw DIN 912 M5x16

0912050163

$1.49

TANK CAP

60307008100

$458.33

AH SCREW DIN0912-M 5X25

0912050253

$1.49

collar bushing, front tank hol

61007065000

$7.85

collar bushing, bearing, outsi

61007060000

$9.90

AH collar screw DIN0912 M8x40

0912080403

$2.05

HOSE 5,4X9,4 NBR, METER

60007126001

$7.10

DISTANCE HOLDER 10/10 BLACK

60038039000

$2.05

HOSE CONNECTION STRAIGHT

69015019010

$5.23

HOSE TANK BREAT.

60307008150

$27.39

SEAT LOCK CPL.

60307050000

$34.68

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

SEAT

60607040000

Unavailable

SEAT COVER

60607140050

Unavailable

Gasket fuel lever sensor

60307080090

$50.67

DAMPER

60307032000

$8.31

Screw for expansion tank

69013099050

$4.11

TANK PROT. L/S SILVER

60307027000B1

Unavailable

TANK PROT. R/S SILVER

60307028000B1

Unavailable

GRIP L/S BLACK

6031200810030

$22.99

HAND GRIP R/S

6031200920030

$22.99

BAGGAGE CARRIER BRIDGE

6061201000030

$60.30

AH collar screw M8x50 ISA45

0035080506S

$5.23

LOCK CYLINDER SEAT LOCK

60307050020

$145.76

GASKET TANK CAP

60307008190

$7.85

AH-COLLAR SCREW M10X60 ISA45

0035100609S

$9.34

AH-COLLAR SCREW M10X70 ISA45

0035100709S

$7.85

rubber grommet, tank mounting

69007027000

$3.08
