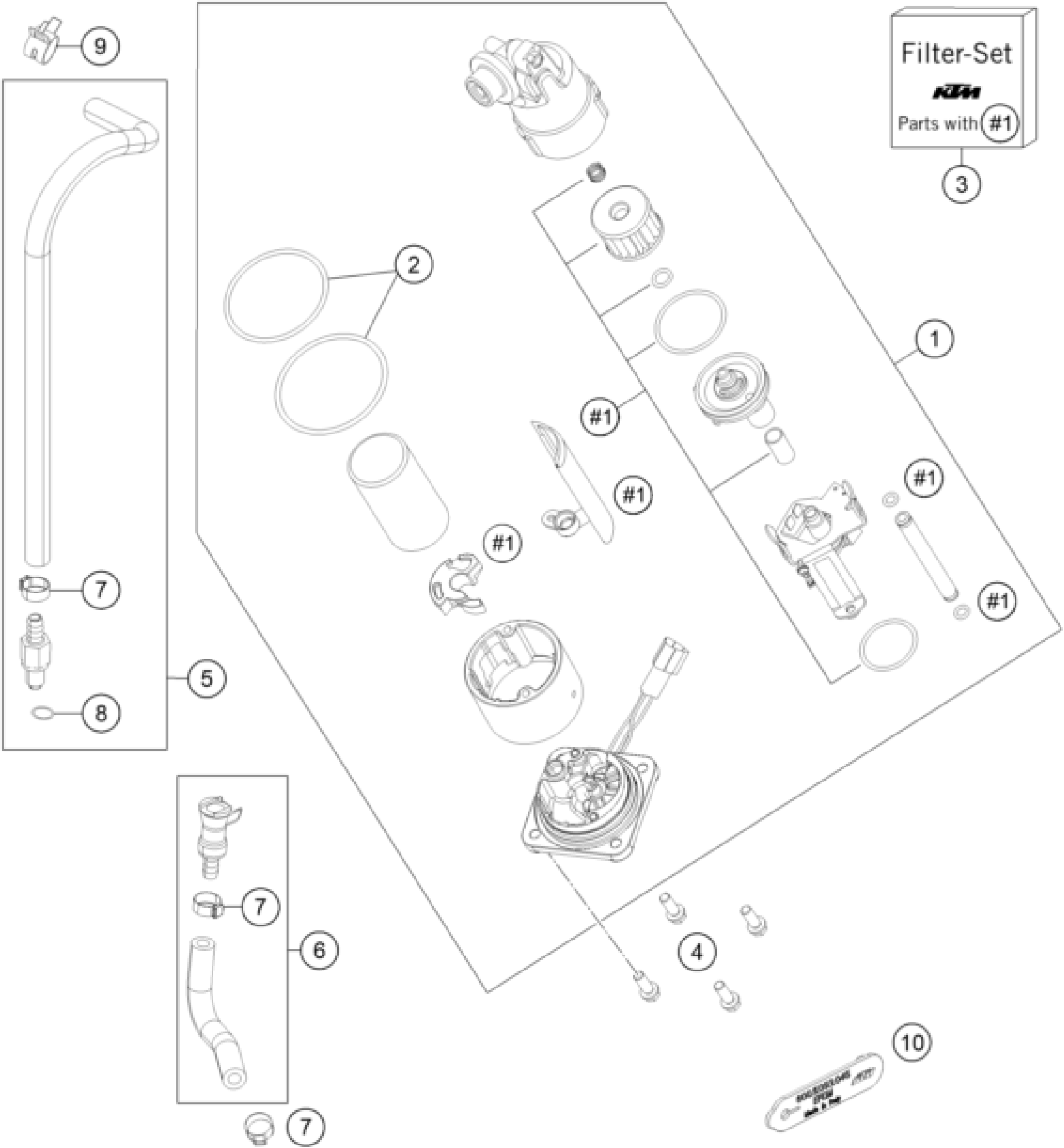

KTM 1050 ADVENTURE ABS 2015 FUEL PUMP Diagram

#

Description

Price

1

FUEL PUMP

60307088000

Unavailable

2

O-RING SET FOR FUEL PUMP 05

61007089000

Unavailable

3

FILTER-SET FUEL PUMP

61007090100

Unavailable

4

HH collar screw M6x16 TX30

0025060166

Unavailable

5

FUEL HOSE 1 CPL.

60307016000

Unavailable

6

FUEL HOSE TANK/CONNECTOR

60307017000

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

Unavailable

8

O-ring VITON f. plug CPC 0

58507012000

Unavailable

9

CLAMP STD DN14

00049140121

Unavailable

10

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable
