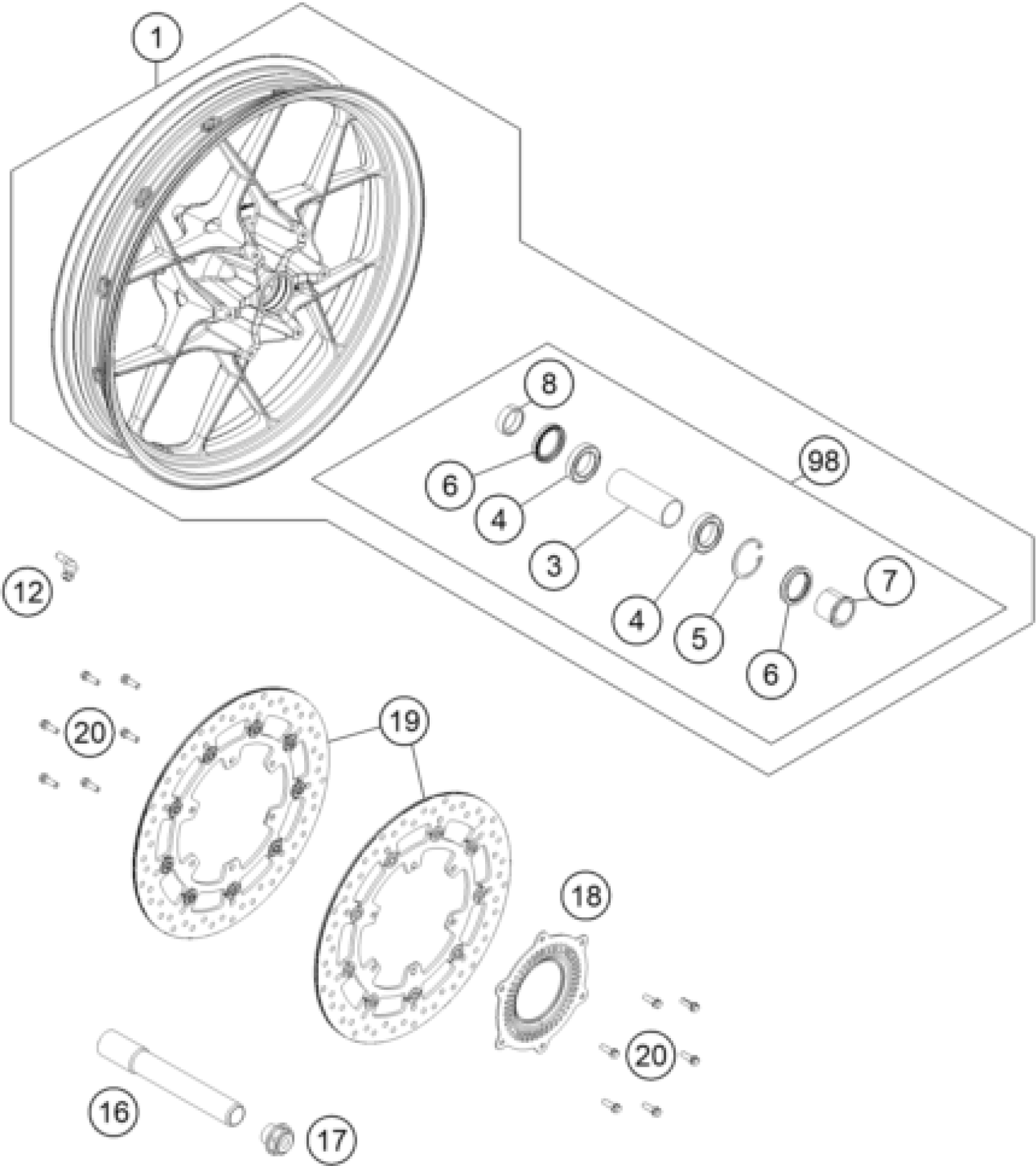

KTM 1050 ADVENTURE ABS 2015 FRONT WHEEL Diagram

#

Description
Price

12

VALVE ANGLED

61009076100

Unavailable

8

Spacer bush. fr. whee R/S 03

60009013000

Unavailable

1

FRONT WHEEL 3.0X19'' CPL.

6060900104430

Unavailable

3

BUSHING SPACER TUBE FRONT

60309011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSH. FRONT WHEEL L/S

60309012100

Unavailable

16

AXLE FRONT

60309081000

Unavailable

17

STEERING HEAD SCREW 09

6900103600001

Unavailable

18

Phonic wheel ABS

60342020000

Unavailable

19

BRAKE DISC FRONT D=320X4,5

6030906000030

Unavailable

20

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

98

FRONT WHEEL REP. KIT ADV. 1050

60609015000

Unavailable
