Description

Price

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

15

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

9

STEARING HEAD GASKET TOP

54601184000

$7.10

18

TRIPLECLAMP-FACEPLATE BELOW

60308024200

$16.54

19

SPECIAL SCREW M6X15X3

83008000015

$3.08

21

HORN

60311060100

$39.82

25

EJOT PT screw K50x12

0081050121

$2.05

10

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

11

HH collar screw M8x25

0025080256

$2.05

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

7

STEER.HEAD NUT

57301036100

$21.96

8

STEERING HEAD COVER 05

61001086000

$13.92

1

FRONT FORK

05186O0801

Unavailable

2

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

3

TOP TRIPLE CLAMP

6030103403233S

$165.05

4

BOTTOM TRIPLE CLAMP CPL.

6060103203201S

Unavailable

5

STEER.HEAD SCREW M22X1,5 SW27

6030103600001

$15.61

12

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

$36.55

98

STEARING HEAD REP. KIT ADV 13

60301081010

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

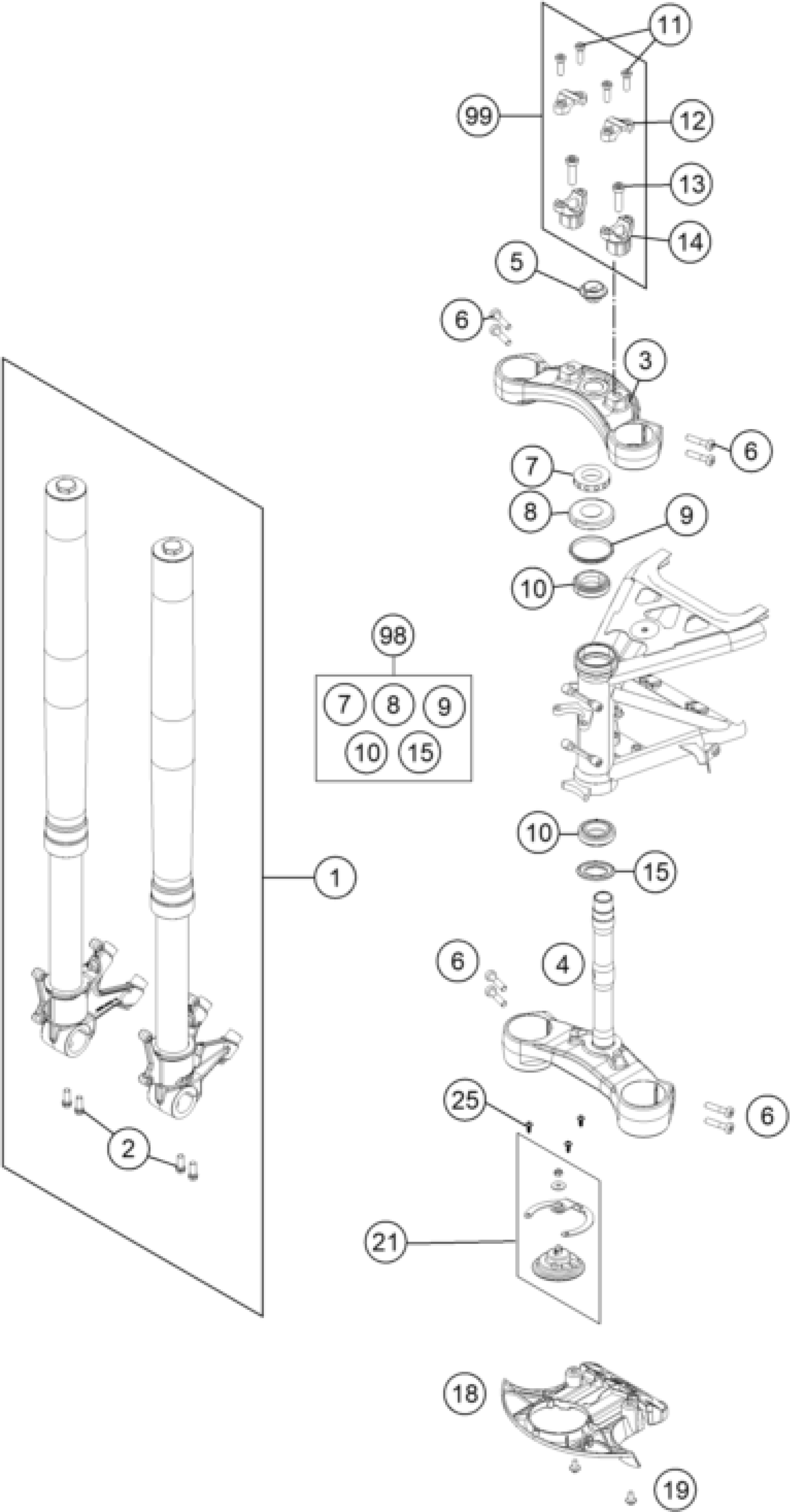

KTM 1050 ADVENTURE ABS 2015 FRONT FORK, TRIPLE CLAMP Diagram

AH-COLLAR SCREW M10X35 ISA45

O-RING SUPPORT W. SEALING LIP

STEARING HEAD GASKET TOP

TRIPLECLAMP-FACEPLATE BELOW

SPECIAL SCREW M6X15X3

HORN

EJOT PT screw K50x12

TAPERED ROLLER BEARING CPL. 06

HH collar screw M8x25

AH-COLLAR SCREW M8X35 ISA45

STEER.HEAD NUT

STEERING HEAD COVER 05

FRONT FORK

HH collar screw M8x20 TX40 SL

TOP TRIPLE CLAMP

BOTTOM TRIPLE CLAMP CPL.

STEER.HEAD SCREW M22X1,5 SW27

HANDLEBAR CLAMP 28MM

HANDLEB.SUPP. D=28MM H=37MM

STEARING HEAD REP. KIT ADV 13

HANDLEBAR SUPPORT KIT ADV.1190
