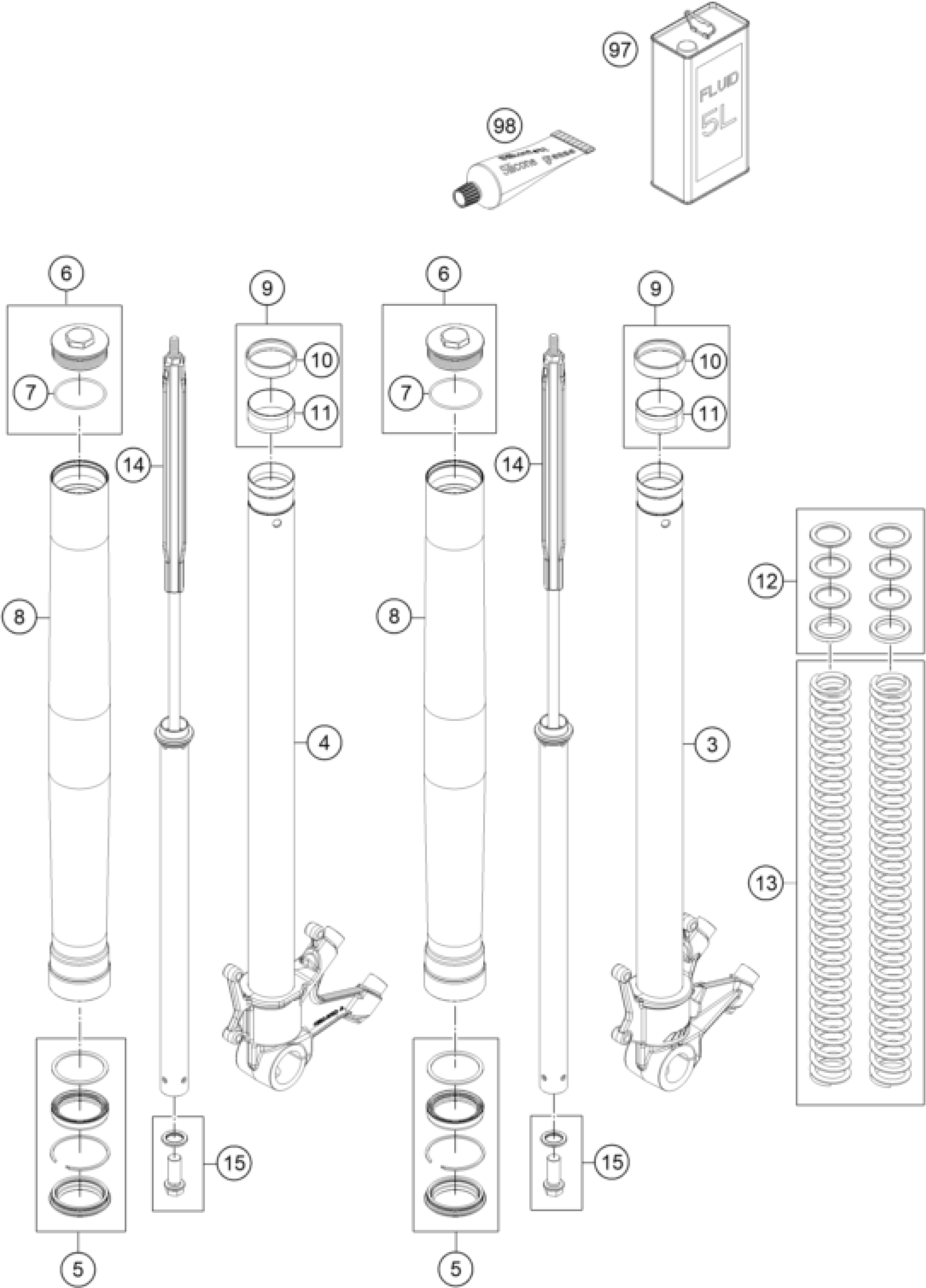

KTM 1050 ADVENTURE ABS 2015 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

4

AXLE-CL. + INNER TUBE R/S

43570751S1

Unavailable

5

GASKET SET CPL.

R14049

Unavailable

6

Screw cap M51x1,5 cpl.

57430001S

Unavailable

7

O-ring 45x2 NBR70 siliconized

46810340

Unavailable

8

Fork outer tube 44,13x580 dt54

43570715

Unavailable

9

GUIDE BUSHING SET

R14042

Unavailable

10

Guide bushing 43x47x12

43570618

Unavailable

11

Guide bushing 42x44x20

43570617

Unavailable

12

SPRING SPACER KIT

R514

Unavailable

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

3

AXLE-CL. + INNER TUBE L/S

43570750S1

Unavailable

13

SPRING KIT

95010077S

Unavailable

14

Cartige cpl. KTM 1050 ADV

57430006S4

Unavailable

15

AH SCREW M10X20 SET

00501020S1

Unavailable
