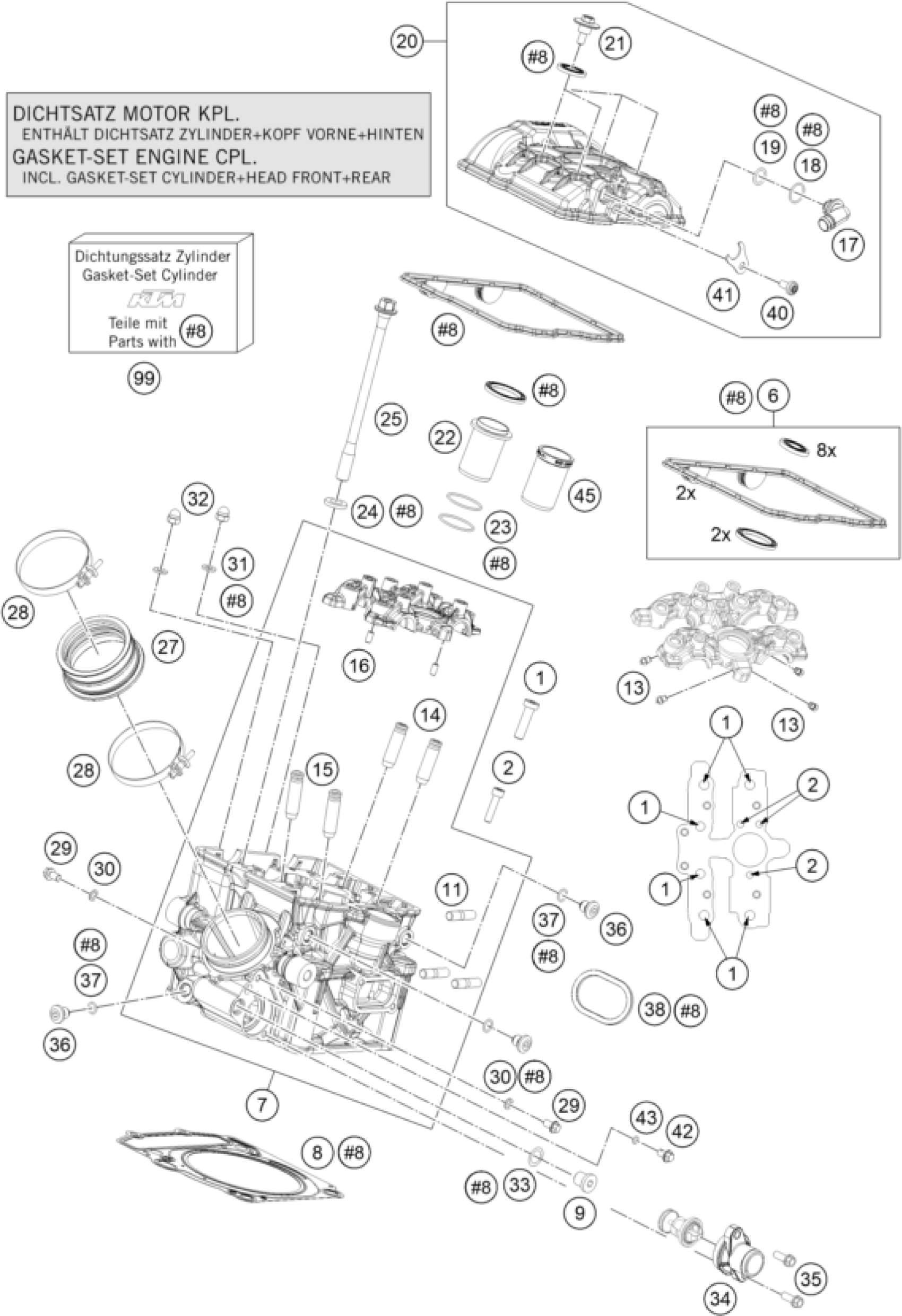

KTM 1050 ADVENTURE ABS 2015 CYLINDER HEAD REAR Diagram

#

Description
Price

15

VALVE GIUDE INTAKE 6MM

61236025001

Unavailable

14

VALVE GUIDE EXHAUST 08

61236026001

Unavailable

16

needle roller DIN 5402 5x9.8

0402050980

Unavailable

17

CONNECTING ANGLE

61236082100

Unavailable

18

O-RING 15,00X1,50 VITON

0770150151

Unavailable

19

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

20

VALVE COVER REAR

6123615214433

Unavailable

21

collar screw M 6 WS=10 03

60036052020

Unavailable

22

SPARK PLUG SHAFT

61336075100

Unavailable

23

O-RING 29,87X1,78 VITON

0770298178

Unavailable

24

WASHER 11,1X20X3 08

61236079050

Unavailable

25

CYLINDER HEAD SCREW 08

61236079000

Unavailable

27

INTAKE BOOT

61336044000

Unavailable

28

HOSE CLAMP GEMI 75

61336048000

Unavailable

29

HH collar screw M6x10 TX30

0025060106

Unavailable

30

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

31

WASHER DIN0125-A 6,4

0125060003

Unavailable

35

HH collar screw M6x20 TX30

0025060206

Unavailable

37

O-RING 9x1,5 V80 SH

07700900151

Unavailable

42

VENT SCREW M6X10 CPL.

59036006090

Unavailable

43

O-RING 5,0X1,2 NBR 70

0770050012

Unavailable

45

INSERT SPARK-PLUG SHAFT

61336074100

Unavailable

99

GASKET KIT CYLINDER+HEAD F+R

61230097100

Unavailable

32

CAP NUT M6 STAINLESS STEEL

61230045000

Unavailable

33

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

34

WATER CONNECTION CPL.

61235019100

Unavailable

2

AH SCREW DIN0912-M 6X25 10.9

0912060255

Unavailable

6

VALVE COVER GASKET SET

61236099100

Unavailable

7

CYLINDER HEAD REAR

60636120000

Unavailable

8

CYLINDER HEAD GASKET 08

61230036000

Unavailable

1

AH SCREW DIN7984-M 8X30 10.9

0984080305

Unavailable

9

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

11

STUD M 8X16 10.9

0835080165

Unavailable

36

SCREW PLUG

77336056095

Unavailable

41

connecting angle retaining pla

61236082150

Unavailable

38

EXHAUST PIPE FLANGE GASKET

69005005100

Unavailable

40

EJOT ALtracs 60x12 TX30

0080060123

Unavailable

13

oil jet 50 M5

60030063050

Unavailable
