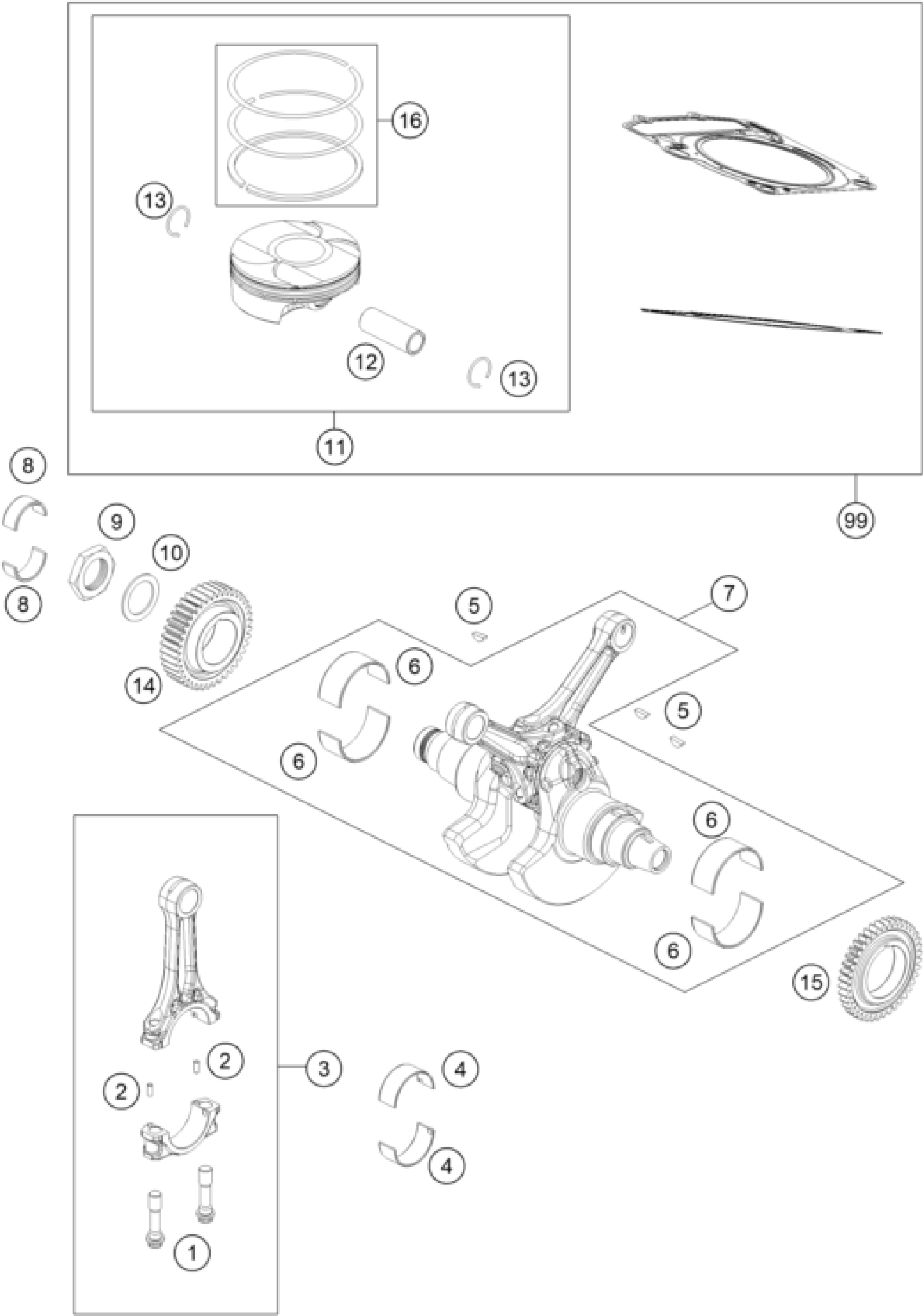

KTM 1050 ADVENTURE ABS 2015 CRANKSHAFT, PISTON Diagram

#

Description
Price

15

DRIVE WHEEL BALANCER SHAFT 08

61230056000

$67.87

16

PISTON RING KIT D103

60630031044

$114.72

99

PISTON KIT GR. I 1050 ADV

60630007110 I

Unavailable

99

PISTON KIT GR. II 1050 ADV

60630007110 II

Unavailable

1

CONNECTING ROD SCREW MJ10X1

61230015100

$18.50

2

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

3

CONNECTING ROD CPL. 125MM

60630013000

$346.50

4

SPLIT BEAR. BUSH RED

612300151101

Unavailable

4

SPLIT BEAR. BUSH BLUE

612300151102

Unavailable

4

SPLIT BEAR. BUSH YELLOW

612300151103

Unavailable

5

woodruff key DIN 6888 4x5x13

0888040050

$4.11

6

SPLIT BEAR. BUSH RED 08

612300820001

Unavailable

6

SPLIT BEAR. BUSH BLUE 08

612300820002

Unavailable

6

SPLIT BEAR. BUSH YELLOW 08

612300820003

Unavailable

7

CRANKSHAFT CPL.

60630018000

$1,339.31

8

BUSHING BOWL 28X32X13 03

60030026010

$14.02

9

HH-NUT M33X1,5 L/S WS46 03

60032009050

$15.89

10

WASHER 33,2X46X2 03

60032009040

$3.08

11

PISTON D103 CPL. GR. I

60630007100 I

Unavailable

11

PISTON D103 CPL. GR. II

60630007100 II

Unavailable

12

PISTON PIN

61330033000

$77.41

13

CIRCLIP LC4 07

75030074000

$12.33

14

PRIMARY GEAR

61230055000

$98.26
