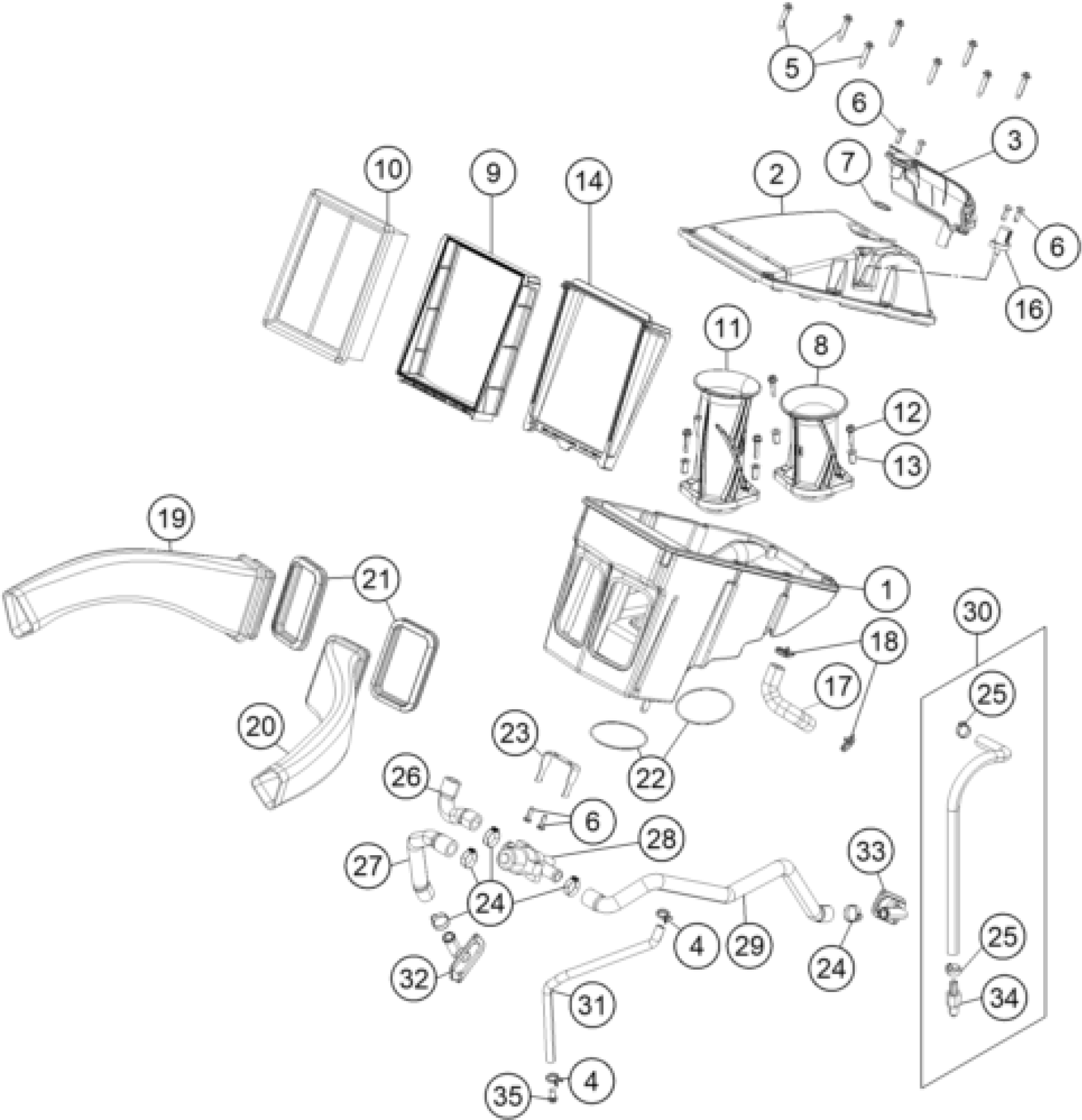

KTM 1050 ADVENTURE ABS 2015 AIR FILTER Diagram

#

Description
Price

14

FILTERCLAMPING LINER

60406017000

Unavailable

1

AIR FILTER HOUSING LOWER PART

60306001200

Unavailable

2

AIR FILTER BOX COVER

60306002000

Unavailable

3

OIL SEPARATOR

60330088100

Unavailable

4

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

5

Special screw K60X30 WS=6

0017060305

Unavailable

6

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

7

O-RING 21,00X2,00 NBR70

0770021020

Unavailable

9

FILTERCLAMPING FRAME

60406016000

Unavailable

10

Air filter

60706015000

Unavailable

11

INTAKE FUNNEL FRONT

60641040000

Unavailable

12

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

13

Bushing intake funnel

60306042010

Unavailable

16

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

17

OIL SEPARATOR FOAM HOSE

60330088030

Unavailable

18

CLAMP YDNAC 10173 (19MM)

60306082000

Unavailable

19

INTAKE DUCT RS

60306040000

Unavailable

20

INTAKE DUCT LS

60306041000

Unavailable

21

GASKET INTAKE DUCT

60306040050

Unavailable

22

O-RING 66X2,5 FKM

0770066025

Unavailable

23

RETAINING BRACKET SLS

61305031000

Unavailable

24

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

25

Variable one-ear clamp 15.7mm

00050157706

Unavailable

26

SAS HOSE - AIRBOX

61305035023

Unavailable

27

SAS HOSE CYLINDER FRONT

61305035021

Unavailable

28

CONTROL VALVE SAS 05

61005026000

Unavailable

29

SAS HOSE CYLINDER REAR

61305035022

Unavailable

30

FUEL HOSE 1 CPL.

60307016000

Unavailable

31

HOSE NBR 7X11 PER METER

60015019001

Unavailable

32

SAS flange

61205122000

Unavailable

33

SAS-FLANGE

61205032000

Unavailable

34

Plug CPC black 05

5850701030030

Unavailable

35

HH collar screw M8x12 TX40

0025080126

Unavailable

8

INTAKE FUNNEL REAR

60641140000

Unavailable
