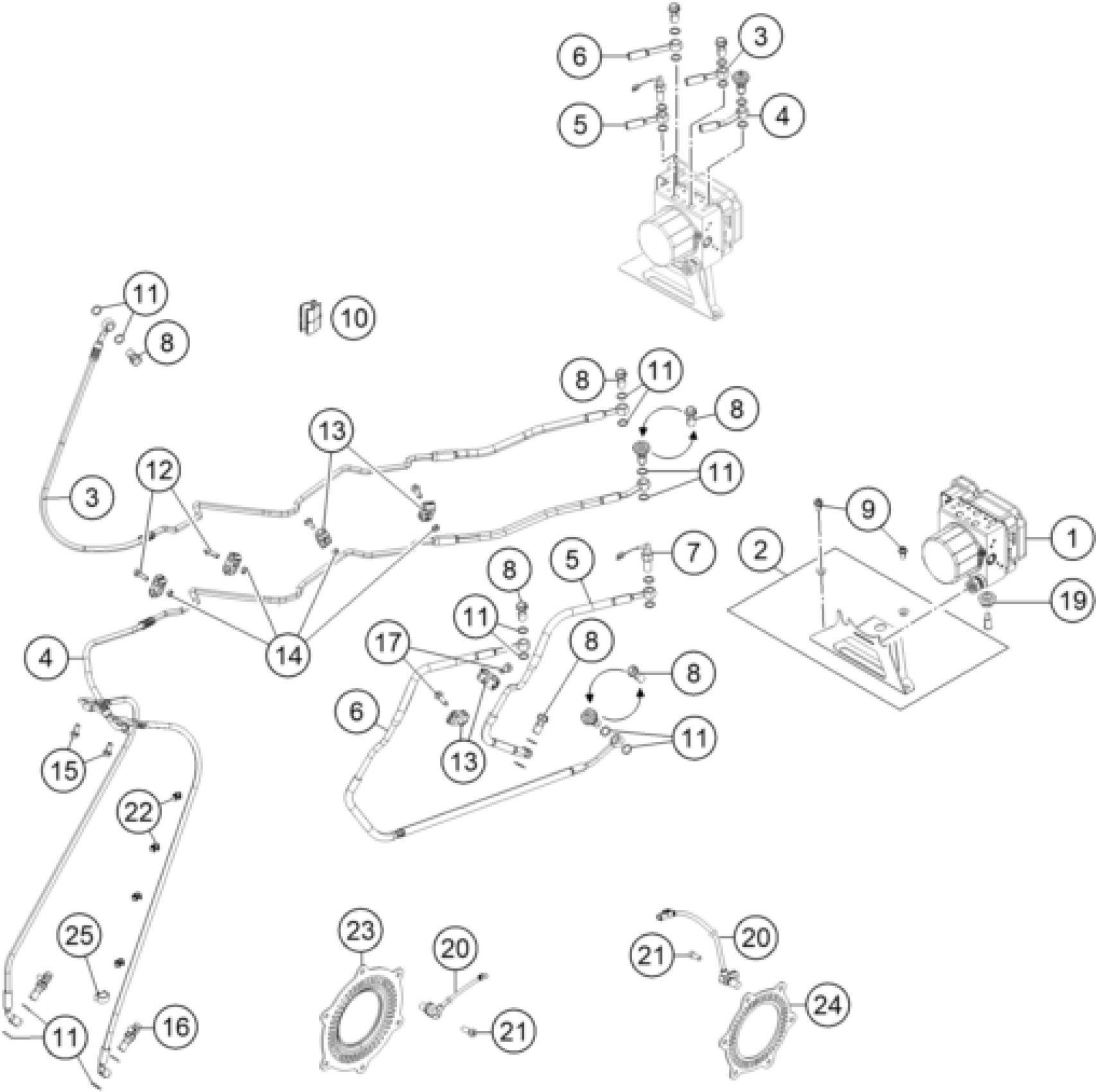

KTM 1050 ADVENTURE ABS 2015 ABS Diagram

#

Description
Price

1

ABS MODULE FILLED

60642031044

Unavailable

2

BRACKET ABS MODULE CPL.

60642040044

Unavailable

3

HOSE HAND BRAKE CYLINDER

60642003000

Unavailable

4

BRAKE HOSE BRAKECALIPER FRONT

60342104000

Unavailable

5

BRAKE HOSE REAR BRAKE CONTROL

60342001000

Unavailable

6

HOSE BRAKE CALIPER REAR

60342002000

Unavailable

7

BRAKE LIGHT SWITCH REAR

60311051000

Unavailable

8

banjo bolt M10x1x19.5

62113020100

Unavailable

9

HH collar screw M6x16 TX30

0025060166

Unavailable

10

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

11

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

12

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

13

SUPPORT FOR BRAKE HOSE M5

60113146000

Unavailable

14

Self locking nut DIN 985 M5

0985050003

Unavailable

15

HH collar screw M6x12 TX30

0025060126

Unavailable

16

BLEEDER SCREW CPL. 05

62513020000

Unavailable

20

ABS-SENSOR

76042025000

Unavailable

21

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

22

CLIP 5/7 MM 06

60111094000

Unavailable

23

Phonic wheel ABS

60342020000

Unavailable

24

Phonic wheel ABS, rear

60142021100

Unavailable

25

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

17

HH collar screw M5x20 TX30

0025050206

Unavailable

19

DAMP RUBBER

60342041000

Unavailable
