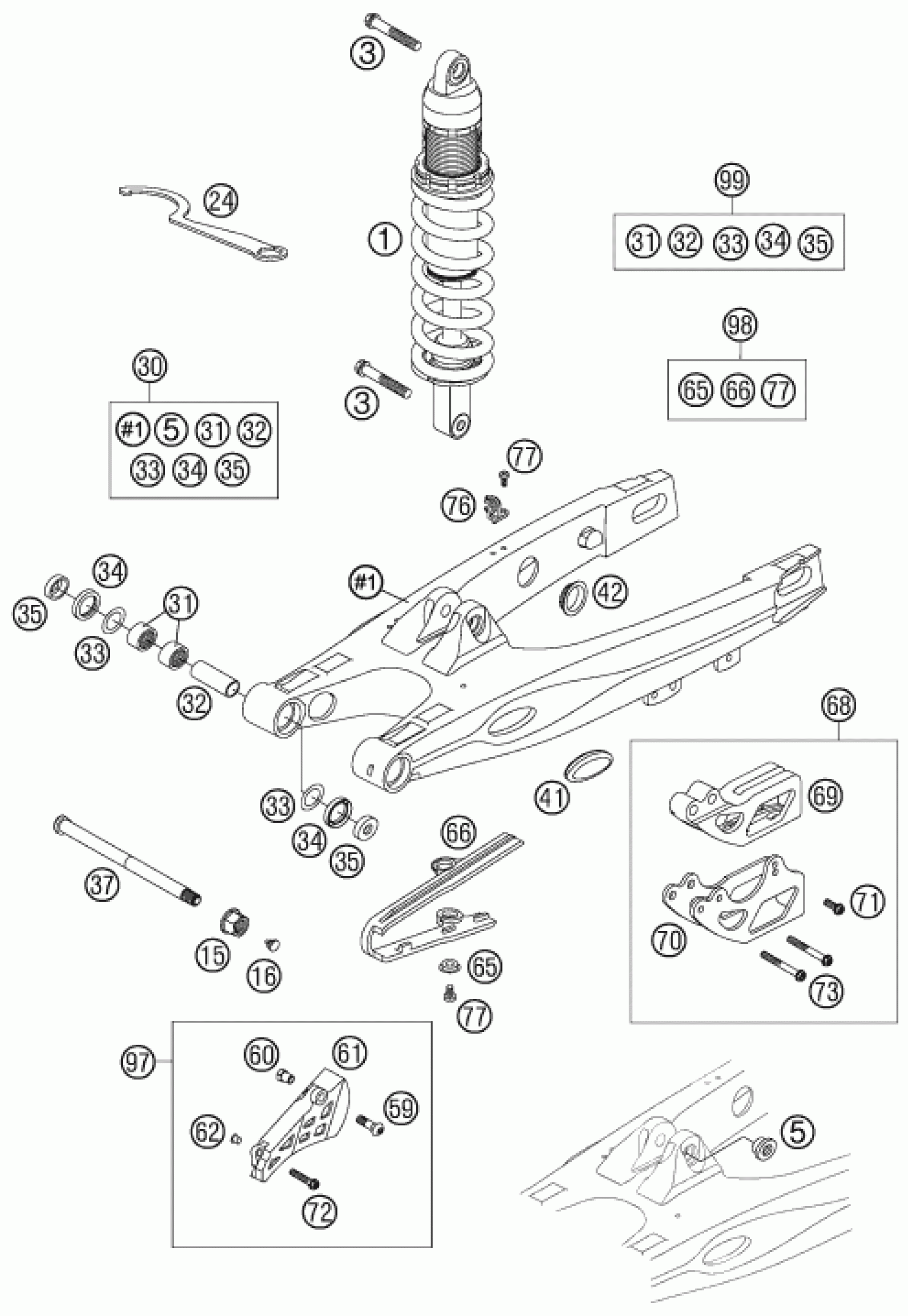

KTM 105 XC <2008> SHOCK ABSORBER Diagram

#

Description
Price

1

MONOSHOCK 85 / 105 XC 2008

15187D04

Unavailable

3

HH COLLAR M12X55 WS=13 06

0015120556S

$5.23

5

Threaded bush M12 d20

50180105

$15.51

15

Self locking nut M14x1.5 WS19

54603015000

$5.51

16

PLASTIC CAP SFL10

54403135000

$2.05

24

HOOK WRENCH FOR SHOCK ABSORBER

46012024000

$26.83

30

SWINGARM 85SX CPL. 2004

47004030144

$669.13

31

NEEDLE BUSH HK2012V

59004031000

$15.51

32

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

33

Shim 20x31.9x1

59033080000

$2.05

34

radial shaft seal 25x32x7

0760253270

$6.63

35

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

37

SWINGARM BOLT 85 SX 2003

47004037000

$65.16

41

CLOSING COVER SWINGARM SM 03

58404041000

$7.00

42

CLOSING COVER ROUND 03

58404041100

$1.49

59

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

60

THREADED BUSH FOR CHAIN GUARD

47030060051

$5.23

61

CHAIN GUARD 85 SX 2003

47007061000

$13.92

62

spacer bushing for speedometer

58314060050

$5.23

65

BUCKET

72210079000

$3.00

66

CHAIN SLIDING GUARD SM 03

58404066000

$12.99

68

CHAIN GUIDE KIT REAR CPL.

54607069000

Unavailable

69

CHAIN GUIDE REAR '94

54607066100

$28.60

70

RETAINING PLATE CPL.

54607070144

$31.41

71

HH collar screw M6x16 TX30

0025060166

$3.08

72

HH collar screw M6x30 TX30

0025060306

$3.08

73

HH collar screw M6x50 TX30

0025060506

$3.08

76

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

77

SPECIAL SCREW M 5,0X10

0009050103

$2.05

97

SPROCKET COVER KIT

47007061010

Unavailable

98

CHAIN GUARD KIT 105/85 SX

58404066010

$14.58

99

SWINGARM REP. KIT 105/85 SX

47004230010

$138.18
