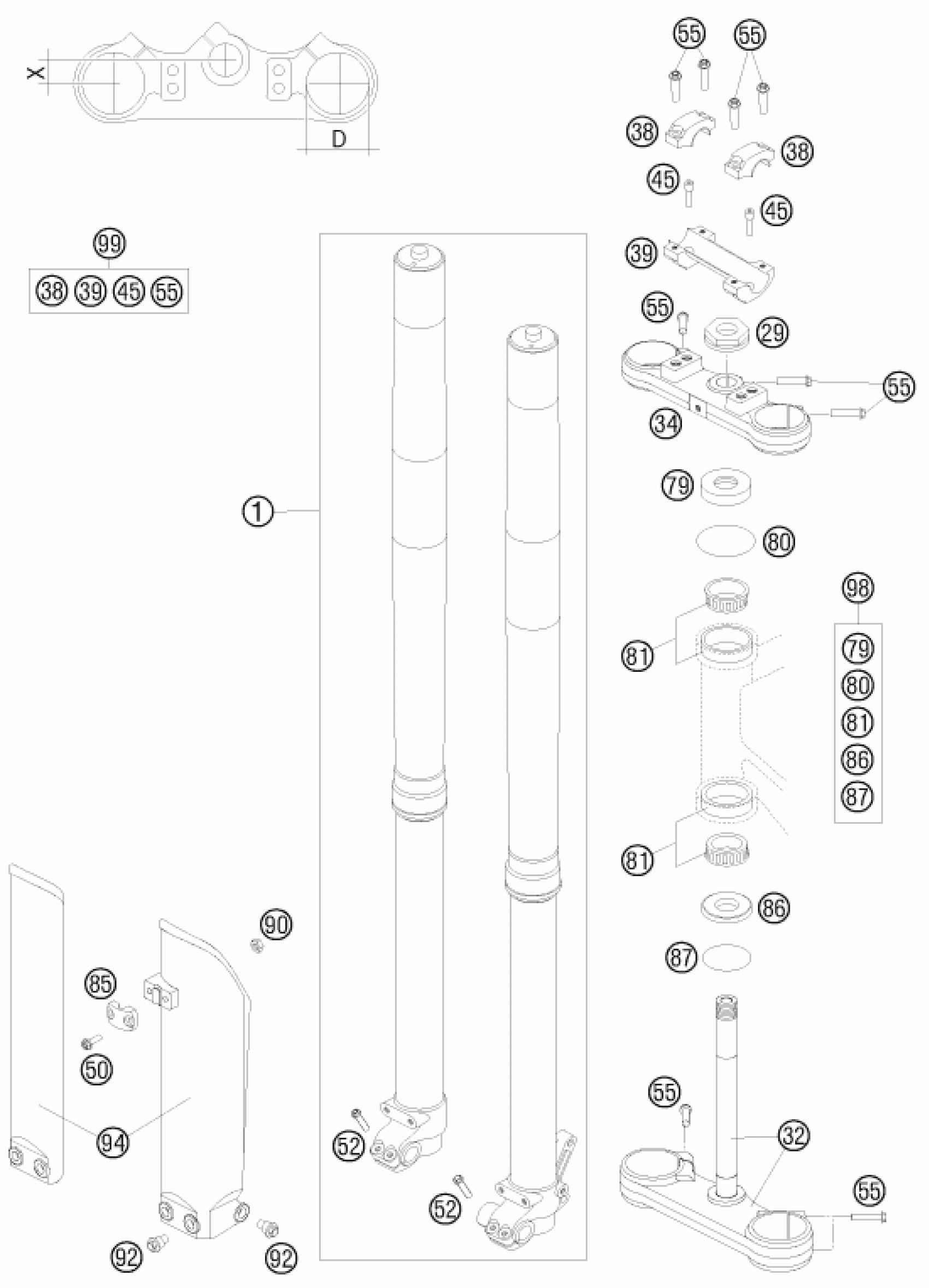

KTM 105 XC <2008> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK 85/105 XC 2008

05187D06

Unavailable

29

HH NUT M20X1,5 WS=27 RIGHT

59030029000

$8.87

32

BOT.TRIPLE CLAMP CPL. 85 SX 03

47001032014

$229.91

34

TOP TRIPLE CLAMP 85 SX 2003

47001034014

$132.54

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

$21.50

39

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

$53.05

45

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

50

HH collar screw M5x16 TX30

0025050166

$2.05

52

HH collar screw M6x20 TX30

0025060206

$3.08

55

HH collar screw M8x30

0025080306

$3.08

79

COVERING CAP

49001086000

$6.72

80

O-ring 40.94X2.62 NBR70

0770021300

$3.08

81

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

85

BRAKE HOSE CLAMP ORANGE 06

5460108500004

$3.05

86

PROTECTION RING 20,1X39X5

46001086000

$8.59

87

O-RING 36,00X3,00 NBR

0770360030

$2.05

90

Self locking nut DIN 985 M5

0985050003

$2.05

92

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

94

FORK PROTECTOR L/S+R/S 85SX

4700109400004

$22.62

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000923

Unavailable
