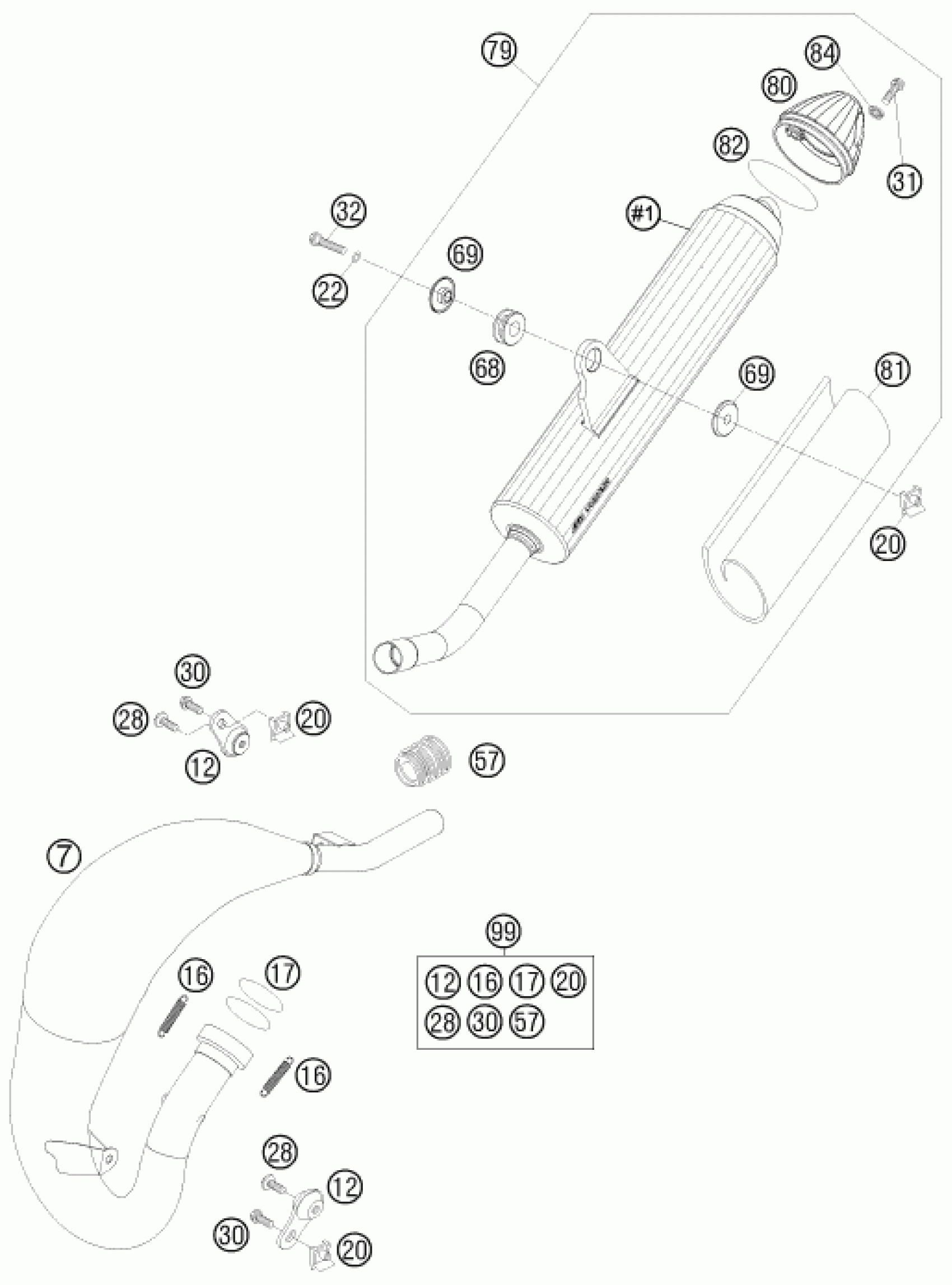

KTM 105 XC <2008 EXHAUST SYSTEM Diagram

EXHAUST PIPE 85 SX 07

47005007100

$289.47

Silent block for exhaust pipe

50305012000

$19.91

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

O-ring 38x3 VITON

0770380030

$5.23

clip nut M6

54603048100

$4.11

spring washer DIN 137 B - 6

0137060003

$2.05

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

HH collar screw M6x16 TX30

0025060166

$3.08

HH collar screw M6x20 TX30

0025060206

$3.08

HH collar screw M6x30 TX30

0025060306

$3.08

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

EXHAUST SILENCER 85/105 XC 08

47005079200

$217.53

SILENCER ENDCAP SX REAR

50305079169

$41.79

STUFFING YARN 160 GRAM

50305079160

$67.87

0-RING 55,00X2,00 NBR70

0770055020

$2.05

Pair of washers M6 NORDLOCK

50233041000

$4.11

EXHAUST HARDWARE KIT MINI

00050000812

$86.48
