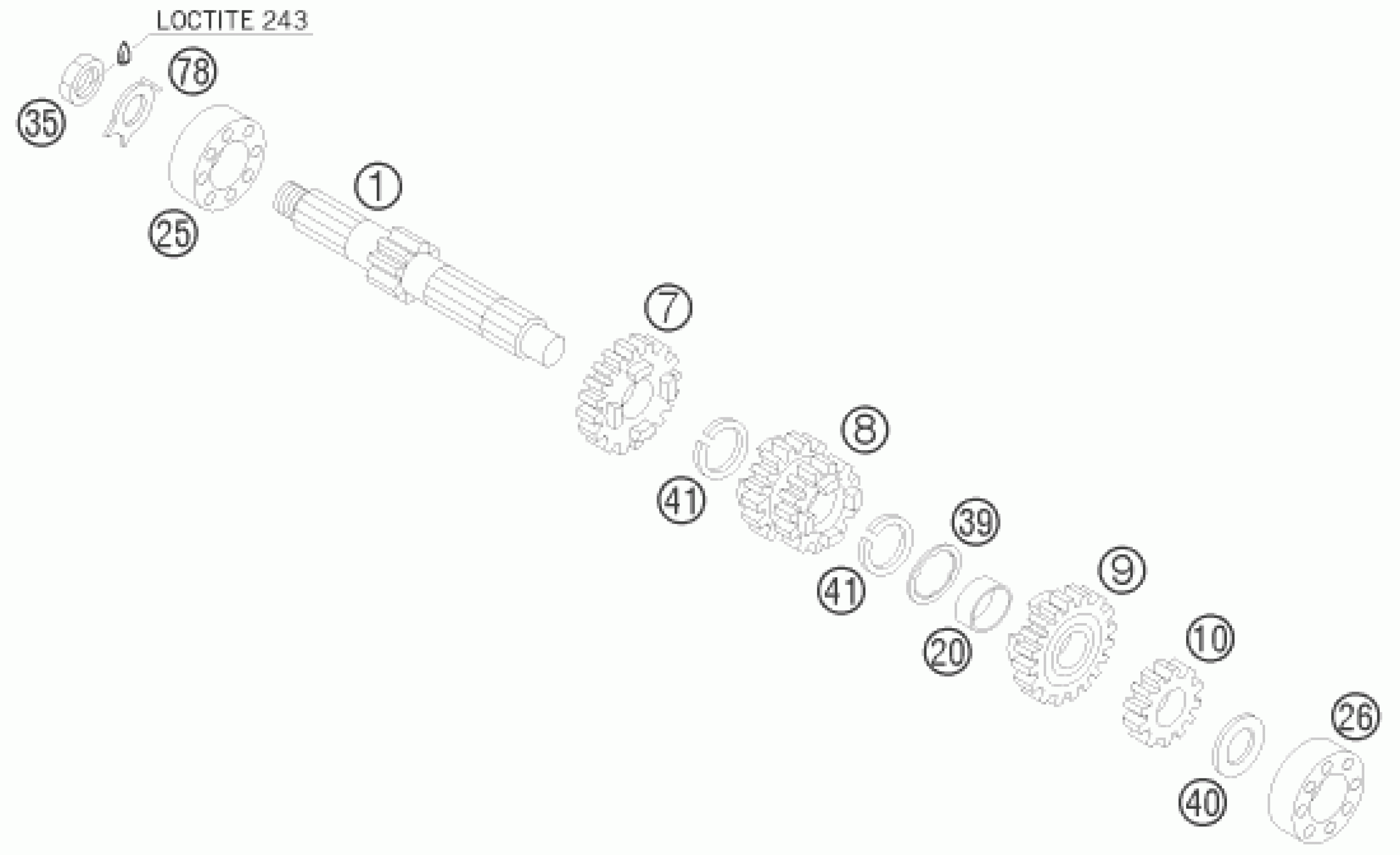

KTM 105 SX <2008> TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT 11-T 85 SX 2003

47033001000

$144.57

7

IDLER GEAR 5TH G. 21-T 03

47033007000

$85.92

8

SLID. GEAR 3RD/4TH G. 16/19-T

47033008000

$110.42

9

IDLER GEAR 6TH G. 20-T 05

47033009100

$74.77

10

SOLID GEAR 2ND G. 14-T 03

47033010000

$63.38

20

IDLER GEAR BUSHING 05

47033020000

$20.38

25

Grooved ball bearing 20X42X12

46033028000

$38.42

26

BALL BEARING 16X35X8

47033026000

$25.42

35

HH NUT 14X1,25X7 WS=22

46030029000

$9.72

39

STOP DISK 05

47033039000

$5.23

40

STOP DISC 16X26X1

47033041000

$3.08

41

AXIAL CIRCLIP 19 SW

47033096000

$2.05

78

LOCKING PLATE D=14MM

46030078000

$4.11
