REAR BRAKE CONTROL

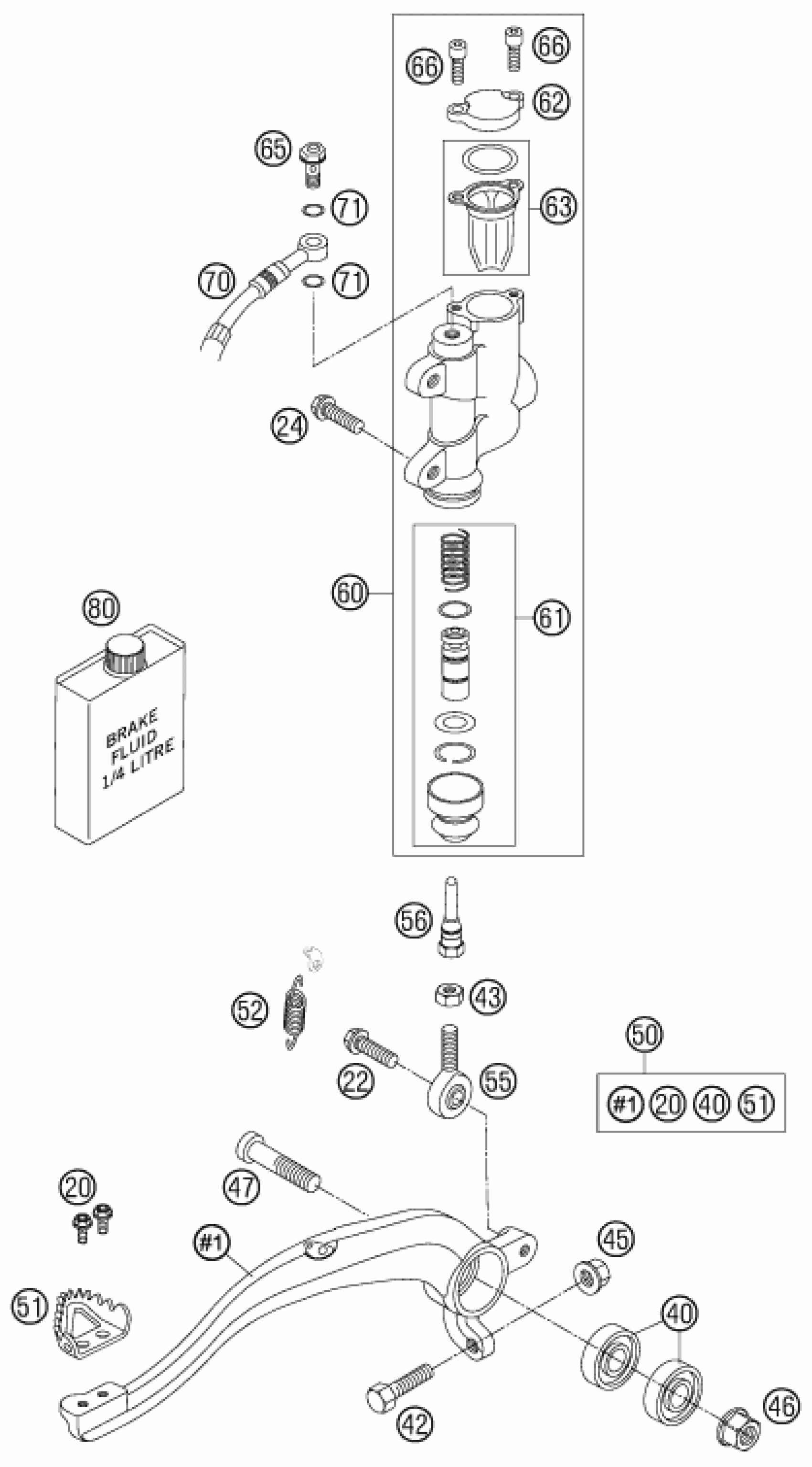

KTM 105 SX <2008 REAR BRAKE CONTROL Diagram
#
Description
Price
20
HH collar screw M5x12 TX30
0025050126
$3.08
22
HH collar screw M6x20 TX30
0025060206
$3.08
24
HH collar screw M6x12 TX30
0025060126
$3.08
40
deep groove ball bearing SKF 6
0625060002
$12.33
42
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
43
Hex. nut DIN 934 M6
0934060003
$1.49
45
flanged nut M8 WS10
46030045000
$7.85
47
AH SCREW DIN6912 M10X40 10.9
0912100406
$4.11
46
COLLAR NUT M10 WS=13
54630044000
$1.49
50
FOOT BRAKE LEVER CPL. 85 SX 03
47013050044
$120.33
51
STEP PLATE FOR BRAKE LEVER
54813051000
$11.02
52
RETURN SPRING FOR BRAKELEVER
54603062000
$6.54
55
SWIVEL HEAD KA6 03
54813055000
$19.91
56
PRESSURE ROD 85 SX 06
47013056100
$13.08
60
FOOT BRAKE CYL.R. CPL. D=11 05
47013060200
Unavailable
60
FOOTBRAKECYL.R. CPL. D=12 05
47013060300
$189.14
61
REP. SET PISTON REAR D=11 2003
47013061000
Unavailable
61
Rep.set piston, rear D=12 2004
47013061100
$75.45
62
CYLINDER COVER REAR 85 SX 03
47013062000
$8.87
63
GASKET CYLINDER COVER REAR 03
47013063000
$10.74
65
Hollow screw, brake cylinder 0
47013025000
$10.84
66
AH.SCREW DIN0912-M 4X10
0912040103
$2.05
70
BRAKE HOSE REAR 85 SX 03
47013070000
$92.28
71
O-RING 8,00X1,00 FORMULA
0770080019
$2.05
80
Brake fluid DOT5.1 0,25L
00062030000
$12.52
