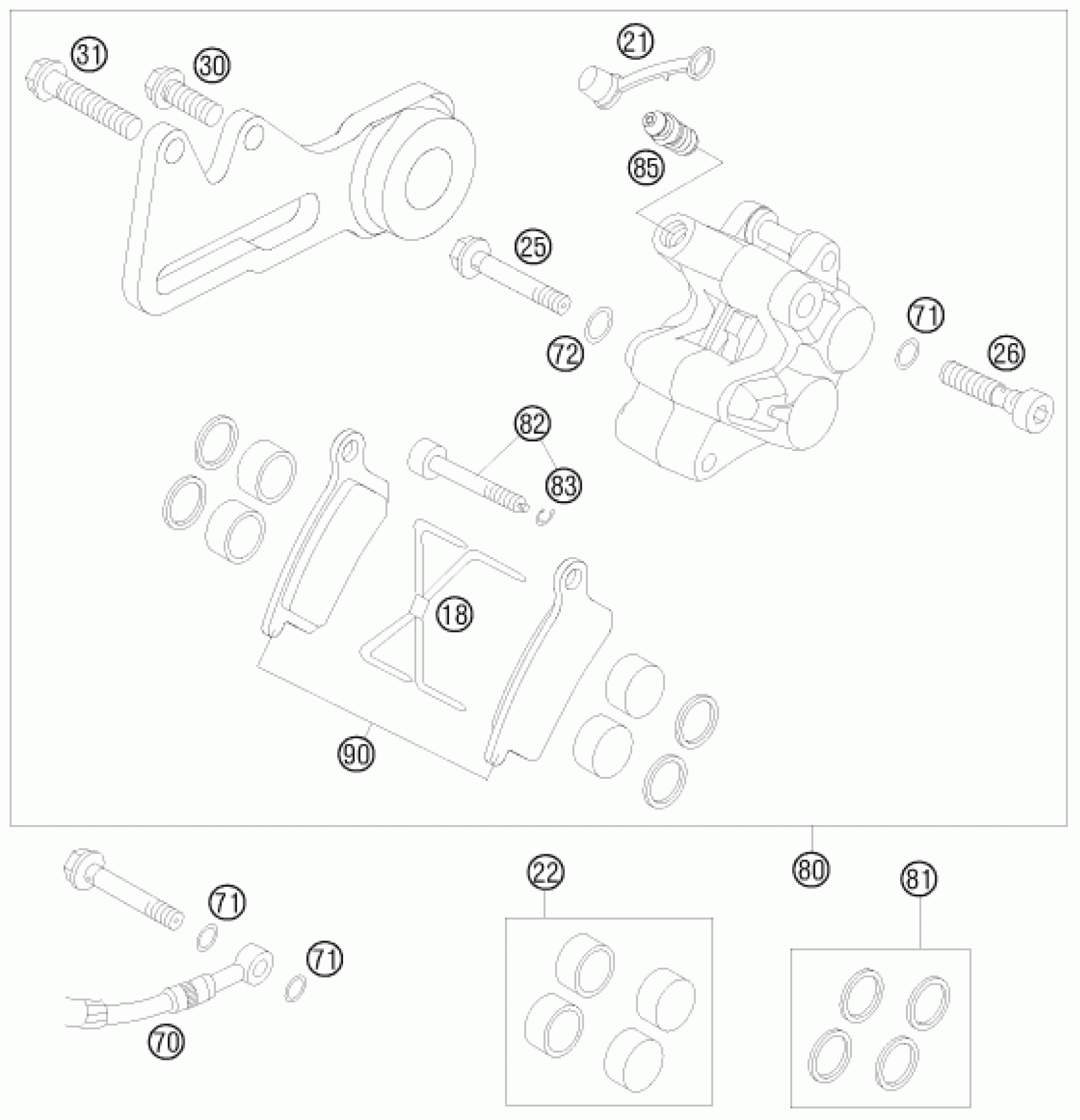

KTM 105 SX <2008> REAR BRAKE CALIPER Diagram

#

Description
Price

18

RETAINING SPRING 65 SX

46113018000

$7.66

21

CAP FOR BLEEDER SCREW

47013021000

$6.72

22

REPAIR KIT BRAKEPISTON

47013083100

$35.15

25

HOLLOW SCREW REAR 85 SX 2003

47013225000

$14.95

26

HOLLOW SCREW REAR 85 SX 2003

47013325000

$14.95

30

HH collar screw M8x20

0025080206

$2.05

31

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

70

BRAKE HOSE REAR 85 SX 03

47013070000

$92.28

71

O-RING 8,00X1,00 FORMULA

0770080019

$2.05

72

O-RING 10X1 EPDM

0770100019

$5.04

80

BRAKE CALIPER RE. CPL. 85SX 08

47013080200

$357.44

81

REPAIR KIT SEAL RING REAR 03

47013081000

$16.07

82

AH SCREW + CIRCLIP 85/105

47013425000

$13.83

83

TAB WASHER DIN6799-RA 4,0

0799040009

$1.49

85

BLEEDER SCREW M8X1

47013085000

$11.02

90

BRAKE PADS REAR SINTER 85SX 08

47013090200

$39.26
