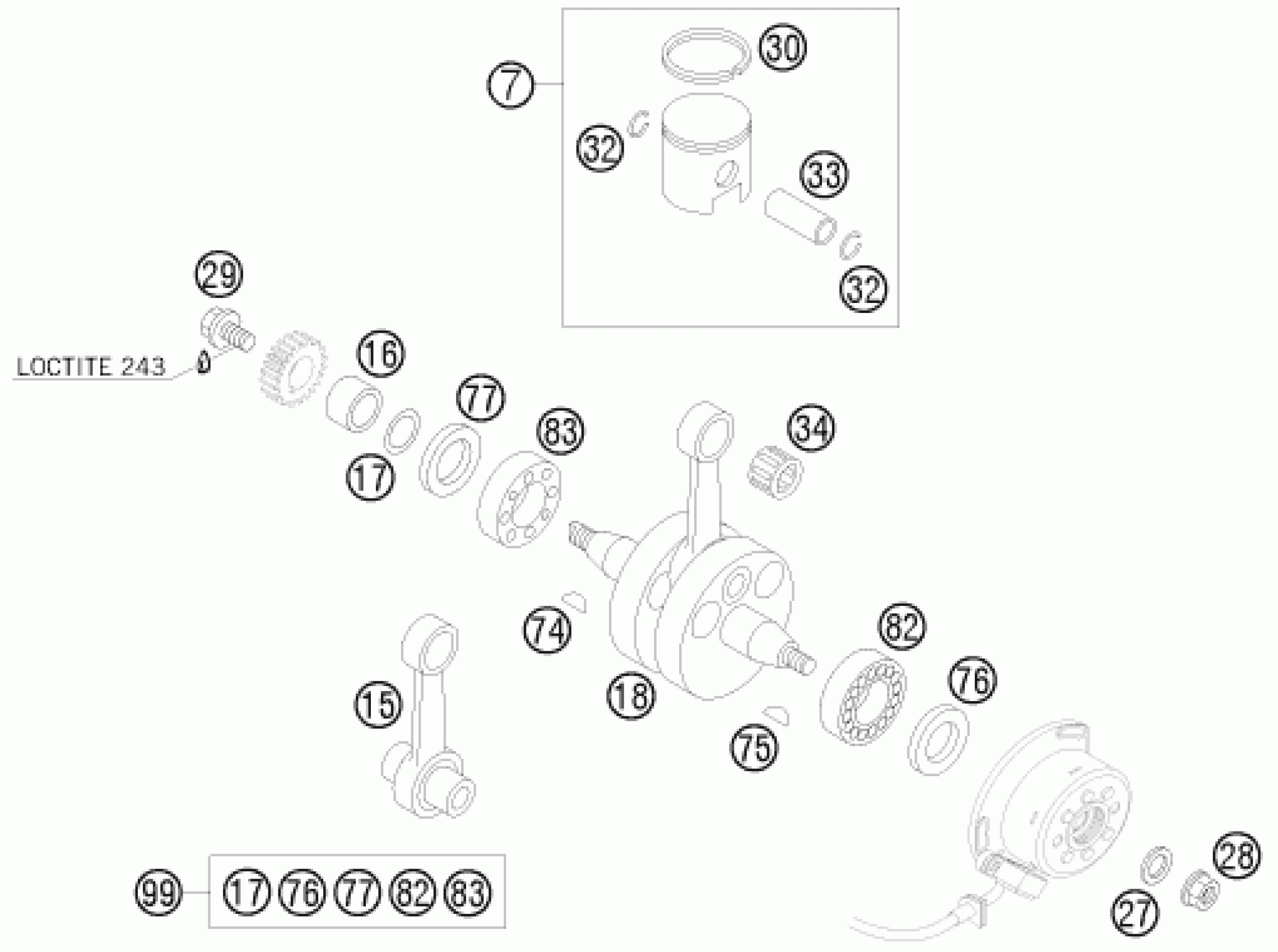

KTM 105 SX <2008> CRANKSHAFT, PISTON Diagram

PISTON I CPL. 105 SX 52MM 04

47530007000 I

$160.34

PISTON II CPL. 105 SX 52MM 04

47530007000 II

$160.34

CON. ROD. REP. KIT 85 SX '06

47030015100

$292.65

SPACER SLEEVE 85 SX 2003

47030016000

$28.11

O-RING 18,77X1,78 NBR 70

0770020180

$1.49

CRANKSHAFT CPL.

47030018100

$474.50

LOCKING RING VSK 12

50230029012

$2.05

COLLAR NUT M12X1 R/S

49030021000

$2.05

HH SCREW W. COLLAR M10X1,25X20

47032019000

$18.50

PISTON RING 105 SX 2004

47530030000

$38.52

WIRE LOCK RING 85 SX 2003

47030074000

$2.05

PISTON BOLT 105 SX 2004

47530033000

$15.16

NEEDLE BEARING KBK 14X18X17 03

47030034000

$33.65

woodruff key DIN 6888 4x5x13

0888040050

$4.11

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

SEAL SHAFT RING 20X35X6 BTSL

47030076100

$21.50

OIL SEAL

0760304261

$16.45

CYL.ROLLER BRG NJ205ET2XCS42

47030082000

$74.42

BALL BEARING 22X52X15

47030083000

$28.70

CRANKSHAFT REP. KIT 85/105 SX

00050002307

Unavailable
