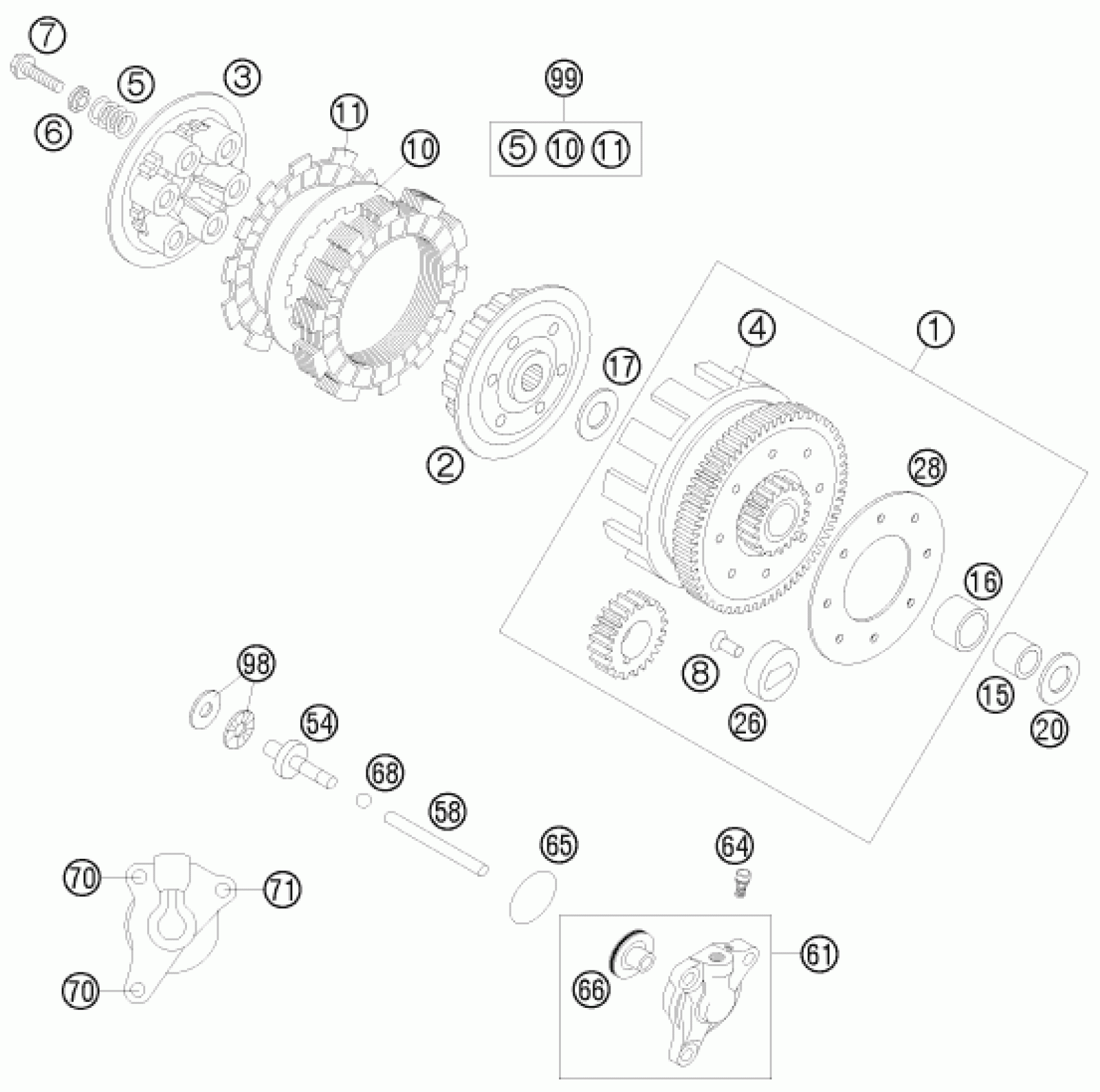

KTM 105 SX <2008 CLUTCH Diagram
#
Description
Price
1
OUTER CLUTCH HUB CPL 85 SX 07
47032001144
$211.67
2
INNER CLUTCH HUB 85 SX 2003
47032002000
$130.22
3
PRESSURE CAP 85 SX 2003
47032003000
$74.04
4
OUT. CLUTCH HUB LOOSE 85 SX 07
47032001100
$68.15
5
CLUTCH SPRING 85 SX 2003
47032005000
$3.08
6
SPRING RETAIN. 5,1X10,2X15X2,5
47032006000
$11.02
7
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
8
RIVET DIN0661 5X14
47032008000
$2.05
10
STEEL DISC 85 SX 03
47032010000
$9.62
11
LINING DISC 85 SX 2003
47032011000
$26.56
15
BUSHING 20X25X20,5
47032015000
$35.99
16
INNER RING 25X28X20
47032016000
$14.95
17
SUPPORT WASHER 18,5X35X1,5 03
47032017000
$4.11
20
thrust washer 20x32x2
47032020000
$4.11
26
DAMPING ELEMENT 85 SX 2003
47032026000
$3.08
28
RETAINING PLATE 85 SX 2003
47032028000
$10.86
54
PRESSURE PLATE 85 SX 2003
47032054000
$33.28
58
PUSH ROD 85 SX 2003
47032058000
$15.04
61
OUTPUT CYLINDER CPL. 27MM 03
59032061044
$240.75
64
BLEEDER SCREW WITH CAP
54732064000
$21.96
65
O-ring 30x1.5 NBR 70
0770300015
$2.05
66
PISTON + O-RING + BALL 27MM
59032066000
$240.75
68
BALL D=6MM 85 SX 2003
47032068000
$1.49
70
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
71
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
98
AXIAL NEEDLE BEARING 85 SX 03
47032098000
$10.09
99
CLUTCH KIT 105/85 SX 03-14
47032010010
$192.32
