Description

Price

39

CLAMP WITH PIN 2000

50302030150

$33.18

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

52

GRIPP SET HALF WAFFLE

50202021000

Unavailable

63

PIPE KIT FOR HYDR.CLUTCH 65 SX

46132063000

$59.34

64

SELF CUTTING RING HYDR.PIPE

50332063050

$5.23

89

Kill switch

50311089200

$37.58

91

THROTTLE C. 125-380 DOM/KEIH

50302091000

$39.45

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

1

HANDLEBAR D=22MM 85 SX 2005

47002001100

$65.35

10

THR.TWIST CRIP CPL. W.O C.'97

50302010000

$67.31

16

PROTECTION CAP

54002016000

$10.65

20

PROTECTION COVER '97

50302020000

$19.16

30

MASTER CYLINDER CPL. D=9MM 05

46102030100

$284.23

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

$39.16

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

32

REP.KIT PISTON 9,0MM RAC. 2004

59002032100

$64.23

33

COVER HYD.CLUTCH 2T 2000

50302033100

$27.76

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

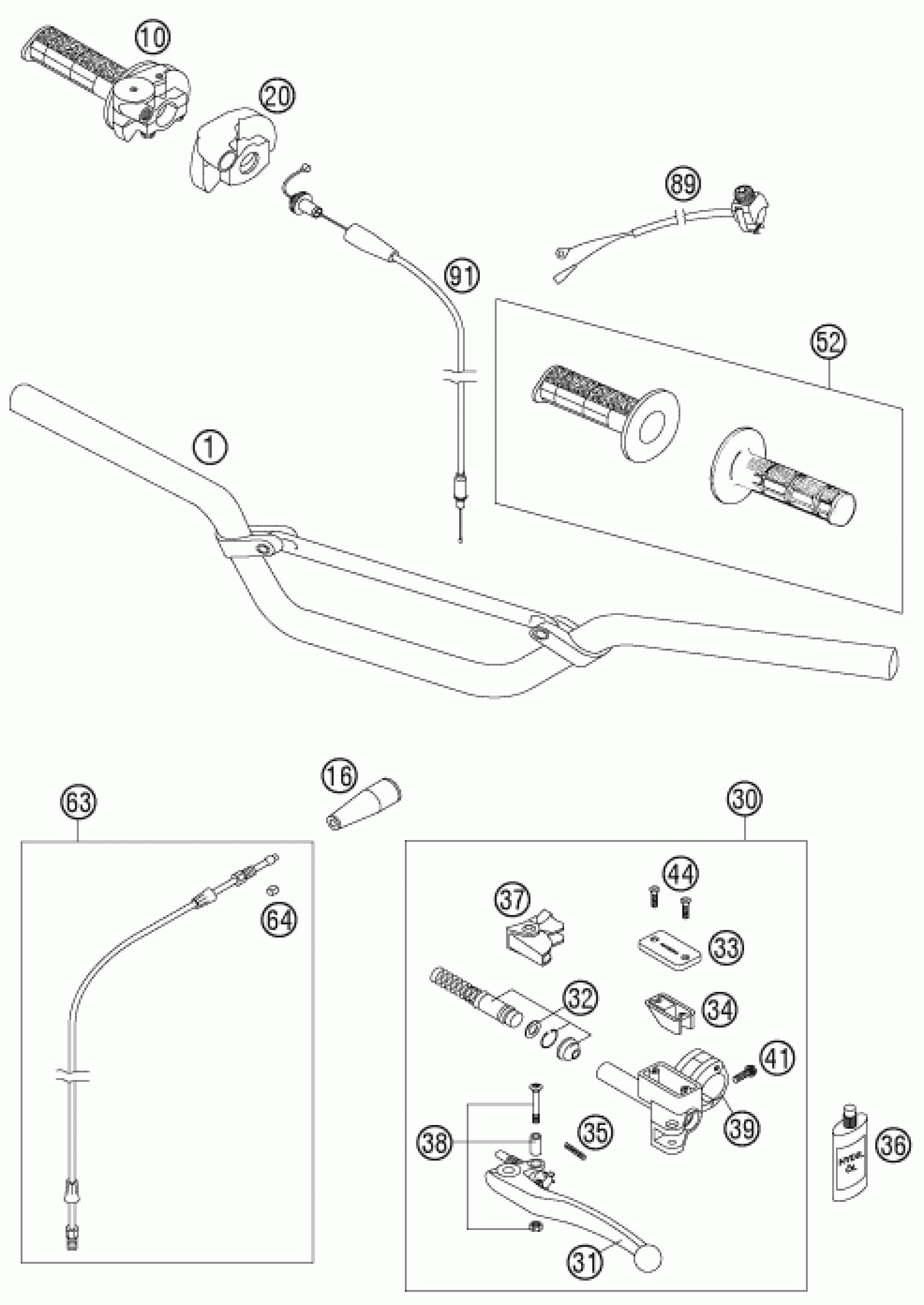

KTM 105 SX 2007 HANDLEBAR, CONTROLS Diagram
