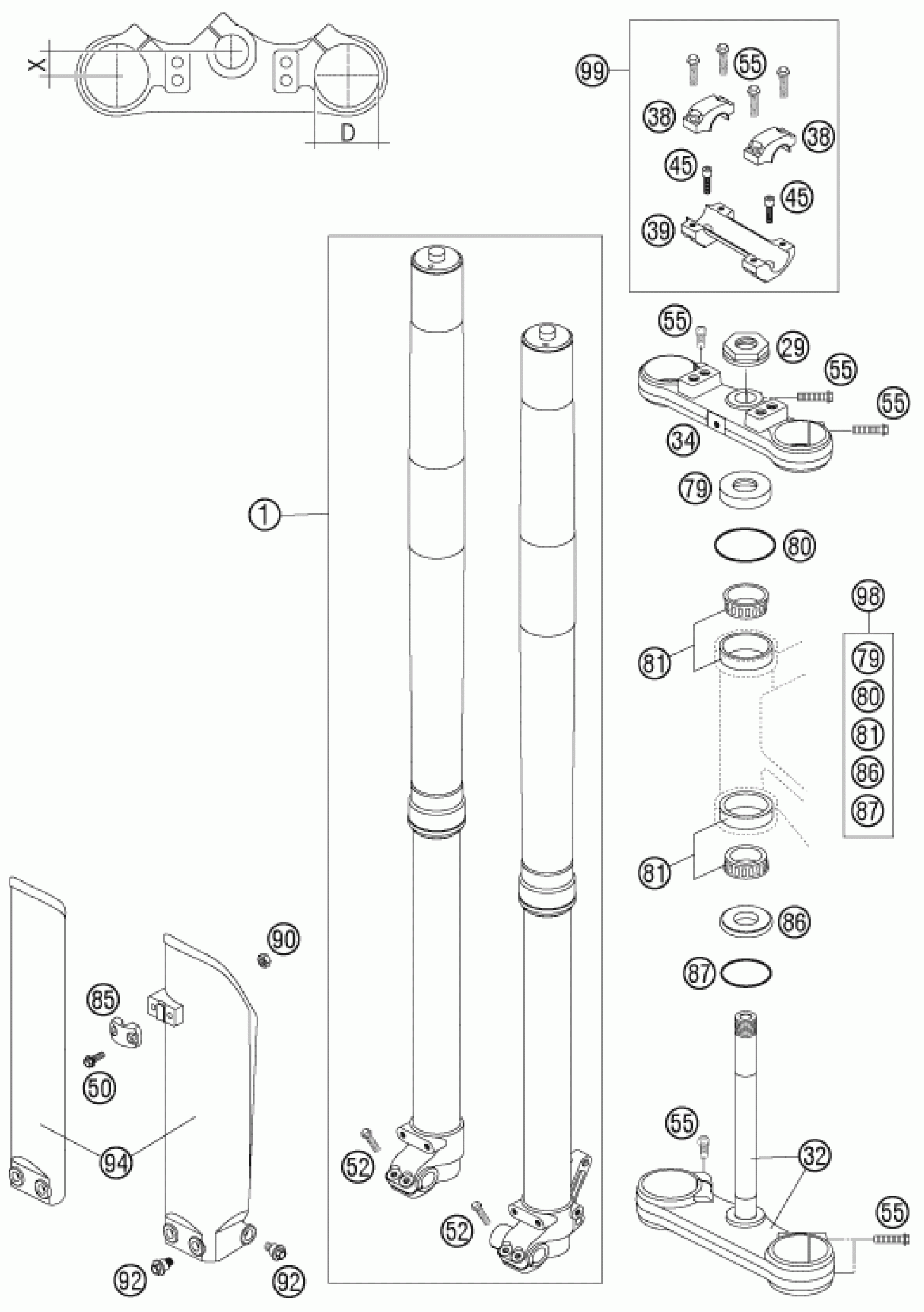

KTM 105 SX 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

79

COVERING CAP

49001086000

$6.72

80

O-ring 40.94X2.62 NBR70

0770021300

$3.08

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

$21.50

45

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

52

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

1

FORK

05187C05

$1,253.64

29

HH NUT M20X1,5 WS=27 RIGHT

59030029000

$8.87

32

BOT.TRIPLE CLAMP CPL. 85 SX 03

47001032014

$229.91

39

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

$53.05

50

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

55

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

86

PROTECTION RING 20,1X39X5

46001086000

$8.59

87

O-RING 36,00X3,00 NBR

0770360030

$2.05

90

Self locking nut DIN 985 M5

0985050003

$2.05

92

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

94

FORK PROTECTOR L/S+R/S 85SX

4700109400004

$22.62

34

TOP TRIPLE CLAMP 85 SX 2003

47001034014

$132.54

81

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

85

BRAKE HOSE CLAMP ORANGE 06

5460108500004

$3.05

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000923

Unavailable
